BI5-M18-AP6X-H1141 Turck Inductive Sensors

Name: BI5-M18-AP6X-H1141
Brand: Turck
Price: 124.3 USD
Availability: InStock

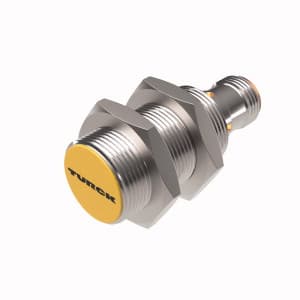

Turck BI5-M18-AP6X-H1141 BI5-M18-AP6X-H1141 Inductive Sensor

Part#:BI5-M18-AP6X-H1141

Manufacturer:Turck

Alt. Part#:46145

Product Lifecycle:Active

In-stock parts: 1

Oct 5, 2024

BI5-M18-AP6X-H1141 Inductive Sensor

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BI5-M18-AP6X-H1141 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
43 g
RoHS
Yes
Country Of Origin
USA
HTS Code
8536507000
Protection class
IP67
Housing material
Metal, CuZn, Chrome-plated
Output function
NO contact, PNP
Ambient temperature
-25…+70 °C
Mounting
Flush
Electrical connection
Connector, M12 × 1
Rated switching distance
5 mm
Operating voltage
10…30 VDC

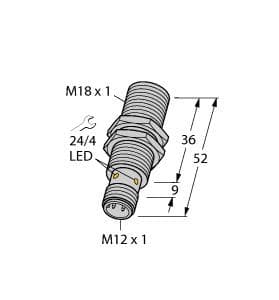

Construction size
M18 x 1
Design
Threaded barrel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BI5-M18-AP6X-H1141 Description

Turck BI5-M18-AP6X-H1141 is an inductive proximity sensor within the BI...-M18 series, designed for embeddable installation. It operates with a supply voltage range of 10-30Vdc, including nominal 12Vdc and 24Vdc, and features a chrome-plated brass housing with a PA12-GF30 (glass fiber reinforced Polyamide) sensing face. This sensor is equipped with a 4-pin M12 Eurofast QD male connector for connectivity and has an M18 partially threaded barrel shape. It offers a degree of protection rated at IP67 and can operate within an ambient air temperature range of -25°C to +70°C. The sensor's maximum switching frequency is 500Hz, with a response time of 8ms. It provides one digital output (10-30Vdc; PNP; 200mA max.) and has a no-load current consumption of 15mA. The sensing distance is specified at 5mm. Protection features include short-circuit (pulsed), overload, and reverse polarity protection. The control circuit is rated for a current of 200mA / 0.2 A, and the operating mode is NO (Normally Open).
