BI2-Q10S-AZ31X-0.2-PSG3F Turck Inductive Sensors

Turck BI2-Q10S-AZ31X-0.2-PSG3F BI2-Q10S-AZ31X-0.2-PSG3F Inductive Sensor
Turck

Part#:BI2-Q10S-AZ31X-0.2-PSG3F

Manufacturer:Turck

Alt. Part#:1309187

Product Lifecycle:Active

Get a quick Quote!

BI2-Q10S-AZ31X-0.2-PSG3F Inductive Sensor

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BI2-Q10S-AZ31X-0.2-PSG3F Turck price in the box on the right side or send a quick quote.

Product Details

  • Cable length (L)
    0.20  m
  • Ambient temperature
    -25…+70 °C
  • Protection class
    IP67
  • Design
    Rectangular
  • Output function
    NO contact, 2-wire
  • Housing material
    Plastic, PP-GF20
  • Electrical connection
    Cable with connector, M8 × 1
  • Operating voltage
    20…250 VAC / 10…300 VDC
  • Rated switching distance
    2 mm
  • Mounting
    Flush

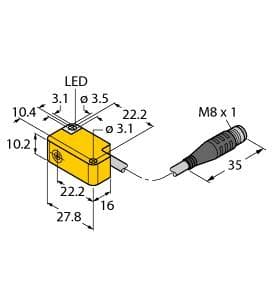

  • Construction size
    27.8 x 16 x 10.2 mm, Q10S

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BI2-Q10S-AZ31X-0.2-PSG3F Description

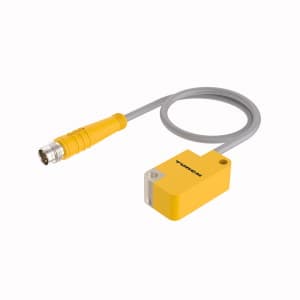

Turck BI2-Q10S-AZ31X-0.2-PSG3F is a proximity sensor from the BI...-Q10 series, designed with a side-sensing embeddable feature. It operates on a supply voltage range of 20-250Vac (with nominal voltages of 24Vac, 200Vac, 220Vac, 240Vac) and 10-300Vdc (with nominal voltages of 12Vdc, 24Vdc, 48Vdc, 120Vdc, 200Vdc, 250Vdc). The sensor is housed in PP-GF20 (glass fiber reinforced Polypropylene) with a sensing face of the same material and a PUR (Polyurethane) cable jacket. It connects via a pre-wired 20cm / 8" pigtail PUR cable that terminates with a 3-pin M8 Picofast fixed thread male connector. This sensor has a 10mm thick rectangular body, offers a degree of protection of IP67, and can operate within an ambient air temperature range of -25°C to +70°C. It features a maximum switching frequency of 20Hz, one digital output (20-250Vac / 10-300Vdc; AC/DC 2-wire; 100mA max.), a sensing distance of 2mm, and operates in NO (Normally Open) mode.

Related documents BI2-Q10S-AZ31X-0.2-PSG3F Specs

BI2-Q10S-AZ31X-0.2-PSG3F English.pdf

Manufacturer warranty

$114.20

Request a quote, and we will send availability within minutes.

Select Qty:

$114.20

$114.20 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
