SCE-642424SSWS Saginaw Control Electrical Enclosures

SCE-642424SSWS on Powermatic Associates

Saginaw Control

Part#:SCE-642424SSWS

Manufacturer:Saginaw Control

Product Lifecycle:Active

Get a quick Quote!

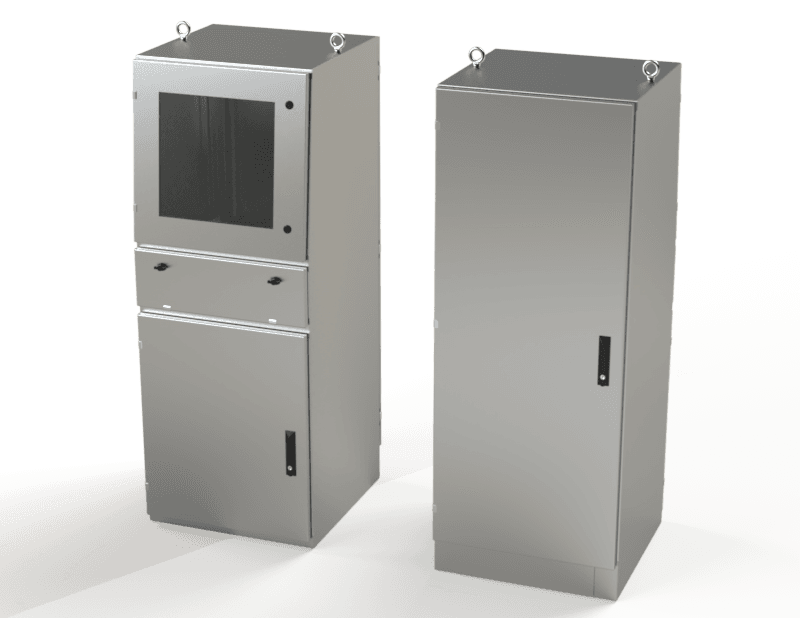

S.S. Workstation, Height:64.00", Width:24.25", Depth:24.25", #4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

About the manufacturer: Saginaw Control is one of the manufacturers that offers Electrical Enclosures that you can order at Powermatic Associates site. For over five decades, Saginaw Control & Engineering has been a trusted name in the electrical sector, offering a wide range of standard and customized electrical enclosures. Situated in Saginaw, Michigan, our expansive 310,000 square feet manufacturing plant is where our products are expertly crafted.

Check out the SCE-642424SSWS Saginaw Control price in the box on the right side or send a quick quote.

Product Details

Finish
#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.
Height
64.00"
Width
24.25"
Construction
0.075 In. stainless steel Type 304. Seams continuously welded and ground smooth. Pour in place oil & water resistant gasket Flange trough collar around all sides of door opening. Concealed hinges. Removable doors. Ground studs on door and body. Large poly
Depth
24.25"
Industry Standards
NEMA Type 12 and Type 13; UL Listed Type 12; CSA Type 12; IEC 60529; IP 55

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents SCE-642424SSWS Specs

SCE-642424SSWS Saginaw - CAD files-1630958818345.zip

Manufacturer warranty
