64120315 SAB Halogen Free Cables

64120315 on Powermatic Associates
SAB

Part#:64120315

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

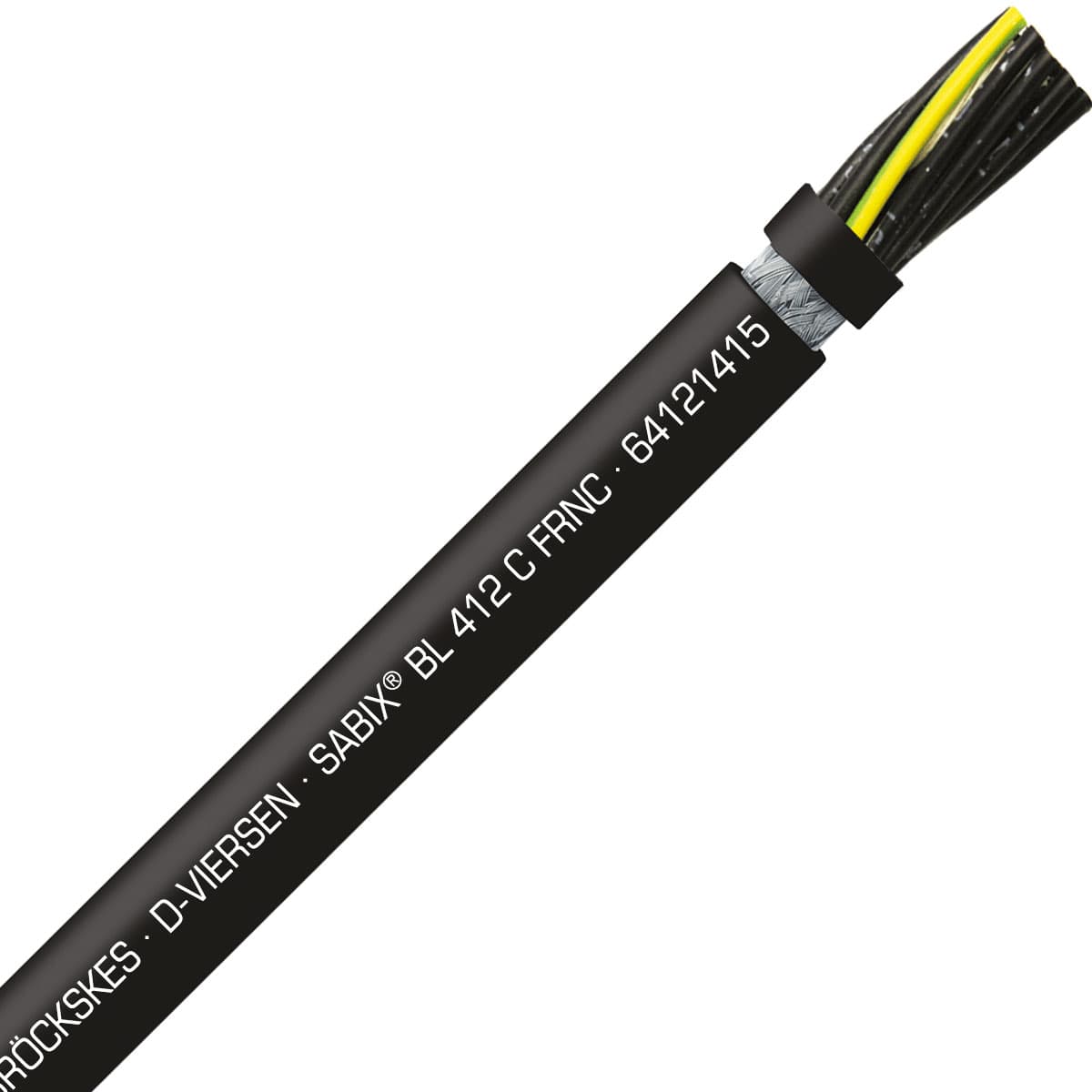

SABIX BL 412 C FRNC - 16 AWG/3c, shielded halogen-free flame retardant flexible power cable for shipboard, DNV-GL, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Halogen Free Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 64120315 SAB price in the box on the right side or send a quick quote.

Product Details

  • Color
    Black
  • Weight
    42.64 g
  • Chemical Resistant
    NO
  • Oil Resistant
    No
  • UV Resistant
    YES
  • Halogen Free
    YES
  • Submersible
    NO
  • Direct Burial
    NO
  • Movement Type
    Stationary/Flexible
  • Application
    Control, Power
  • Gauge
    16 AWG
  • Number of conductors
    3
  • Cable configuration
    16 AWG (≈ 27-29/30)/3c
  • Stranding type
    tinned copper strands, class 5
  • Insulation type
    SABIX
  • Shielded
    Yes
  • Voltage
    1000
  • Approvals
    DNV, CE, EAC, RoHS
  • RoHS
    YES
  • Temperature range
    -40°C to +90°C
  • Outside diameter (OD)
    0.390 in
  • UOM
    ft
  • CSA Certification
    NO
  • UL Certification
    NO
  • CE Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

64120315 Description

SAB 64120315 Halogen Free Cable is part of SABIX® BL 412 C FRNC product family, and is designed for Control, Power applications. This cable is 16 AWG with 3 conductors, and shielded 16 AWG (≈ 27-29/30)/3c cable configuration. Featuring Black color jacket, SABIX insulation, and tinned copper strands, class 5 stranding. It has 0.39 in OD, constructed to support Stationary/Flexible movement type, and rated for 1000 volts. This Control, Power cable can operate in -40°C to +90°C temperature range, it is UV resistand, Halogen free, and has following approvals: DNV, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.

Related documents 64120315 Specs

64120315 SABIX_BL_412_C-FRNC.pdf
