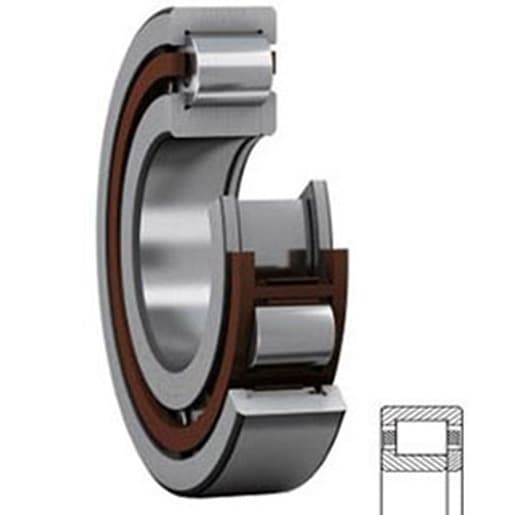

NUP208EW NSK Mechanical Components

NUP208EW on Powermatic Associates
NSK

Part#:NUP208EW

Manufacturer:NSK

Product Lifecycle:Active

Get a quick Quote!

40MM Bore; Straight Bore Profile; 80MM Outside Diameter; 18MM Width; Steel Cage Material; RBEC 1 | ISO P0; Single Row; Not Separable; No Snap Ring; Relubricatable; C0-Medium Internal Clearance; Retainer

About the manufacturer: NSK is one of the manufacturers that offers Mechanical Components that you can order at Powermatic Associates site. NSK embarked on its journey by producing Japan's first bearings in 1916. Since then, it has evolved into a global entity focused on researching, designing, and manufacturing Motion & Control™ solutions crucial for mobility and industrial applications. NSK holds the position of the leading bearing supplier in Japan and ranks as the third largest supplier worldwide by market share. Our innovative products and technologies boost automotive performance and industrial productivity while significantly lowering energy consumption. In the early 1960s, we expanded our horizons beyond Japan, establishing over 200 business locations across 30 countries and forming an extensive network of joint ventures and partnerships worldwide.

Check out the NUP208EW NSK price in the box on the right side or send a quick quote.

Product Details

  • Width
    0.709 Inch | 18 Millimeter
  • Weight / LBS
    0.83555
  • Outside Diameter
    3.15 Inch | 80 Millimeter
  • Bore
    1.575 Inch | 40 Millimeter
  • Other Features
    High Capacity | 1 Rib Inner Ring With Side Plate | 2 Rib Outer Ring | With Flap
  • Internal Clearance
    C0-Medium
  • Relubricatable
    Yes
  • Snap Ring
    No
  • Inch - Metric
    Metric
  • Retainer
    Yes
  • Profile
    Complete with Outer and Inner Ring
  • Rolling Element
    Cylindrical Roller Bearing
  • Brand
    NSK
  • Cage Material
    Steel
  • Number of Rows of Rollers
    Single Row
  • CATEGORY
    Cylindrical Roller Bearings
  • Bore Profile
    Straight
  • Minimum Buy Quantity
    N/A
  • Separable
    No
  • Weight / Kilogram
    0.39
  • Precision Class
    RBEC 1 | ISO P0

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
