M750-01400030A10101AB101 Nidec Servo Motor Drives

M750-01400030A10101AB101 on Powermatic Associates
Nidec

Part#:M750-01400030A10101AB101

Manufacturer:Nidec

Category:Servo Motor Drives

Product Lifecycle:Active

Product description

NIDEC M750-01400030A10101AB101 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M750 series designed with dual Safe Torque Off (STO) and fitted with a KI-compact display. It has dimensions of frame size 1, measuring H9.17" x W1.58" x D6.85" (H233mm x W40mm x D174mm). This model supports Ethernet/IP, Modbus TCP, and PROFINET RT communication protocols. It operates with a rated current of 3A for heavy-duty applications and requires a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The ambient air temperature for operation ranges from -20°C to +40°C, and it has an IP20 degree of protection. It is designed for a 3-phase input network with a supply input frequency of 60 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc), 2 x digital outputs (0-24Vdc; source), 1 x digital output (24Vdc; source), and 1 x analog input (-10...+10Vdc; differential; 11-bit conversion resolution). It has a rated active power of 0.75kW and a rated power of 1.5HP / 1-1/2HP.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

M750-01400030A10101AB101 Nidec

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Nidec

Powermatic Associates is an authorized Nidec distributor, proudly offering a vast array of high-quality industrial products designed to meet your most demanding operational needs. Nidec, a global leader in motor and control technology, is renowned for its cutting-edge innovations in electric motors and related components that enhance efficiency and performance across various industries. As a manuf...

Recently viewed products

LMHCA571C on Powermatic Associates

LMHCA571C

Novanta IMS

Novanta IMS LMHCA571C is a stepper motor that falls under the high-torque stepper motors sub-range. It features an integrated driver and a high-torque DC stepper motor with an incremental magnetic encoder, utilizing a single motor stack and closed-loop hMTechnology for precise control. This motor offers a variety of connection types, including a 4-pin M12 male connector, a 12-pin M12 male connector, and a 5-pin M12 male connector, supporting CANopen communication protocol. It operates on a supply voltage range of 12Vdc to 60Vdc, with optimal performance at 24Vdc or 48Vdc. The LMHCA571C is designed for mounting with a 57x57mm flange and is rated with a degree of protection of IP65, making it suitable for environments where dust and water resistance is necessary. It has a moment of inertia of 0.14kg.cm^2 and can deliver a stall torque of 107N.cm. The resolution of this stepper motor is defined by a 1.8° step angle.

0 in stock

Relevant products

M750-02400060A10101AB101 on Powermatic Associates

M750-02400060A10101AB101

Verified stock: 0

NIDEC M750-02400060A10101AB101 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M750 series designed with dual Safe Torque Off (STO) and fitted with a KI-compact display. It has dimensions of frame size 2, measuring H10.95" x W1.58" x D6.85" (H278mm x W40mm x D174mm). This model supports Ethernet/IP, Modbus TCP, and PROFINET RT communication protocols. It is rated for a heavy-duty current of 6A and operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The ambient air temperature for operation ranges from -20°C to +40°C, and it has an IP20 degree of protection. It is designed for a 3-phase input network with a supply input frequency of 60 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc), 2 x digital outputs (0-24Vdc; source), 1 x digital output (24Vdc; source), and 1 x analog input (-10...+10Vdc; differential; 11-bit conversion resolution). It has a rated active power of 2.2kW and a rated power of 3HP.

Nidec

M750-02400105A10101AB101 on Powermatic Associates

M750-02400105A10101AB101

Verified stock: 0

NIDEC M750-02400105A10101AB101 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M750 series designed with dual Safe Torque Off (STO) and fitted with a KI-compact display. It has dimensions of frame size 2, measuring H10.95" x W1.58" x D6.85" (H278mm x W40mm x D174mm). This model supports Ethernet/IP, Modbus TCP, and PROFINET RT communication protocols. It is rated for a current of 10.5A (Heavy-duty) and operates with a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The ambient air temperature for operation ranges from -20°C to +40°C, and it has an IP20 degree of protection. It is designed for a 3-phase input (3P) network with a supply input frequency of 60 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc), 2 x digital outputs (0-24Vdc; source), 1 x digital output (24Vdc; source), and 1 x analog input (-10...+10Vdc; differential; 11-bit conversion resolution). It has a rated active power of 4kW and a rated power of 5HP.

Nidec

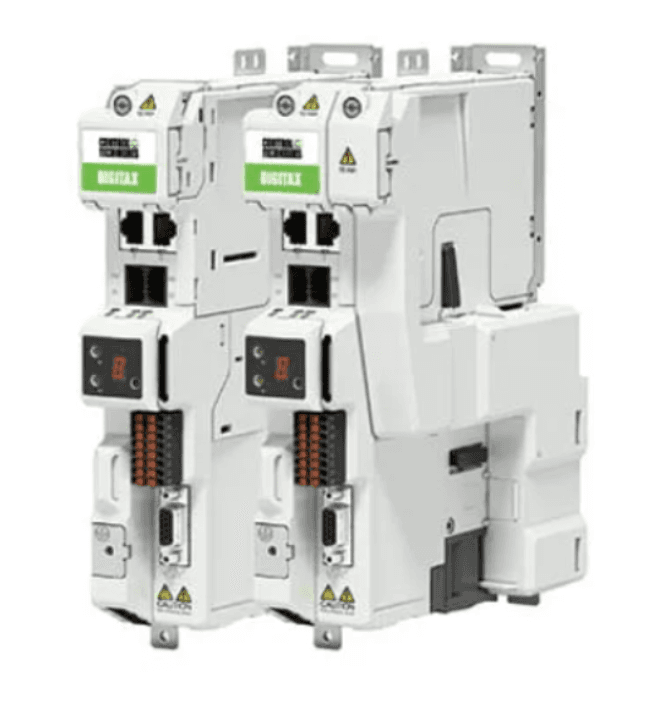

M750-02400080A10101AB101 on Powermatic Associates
