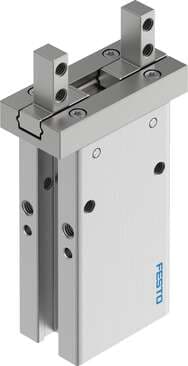

8116778 Festo Pneumatic Grippers

Product Details

• Mounting position
  Any
• Stroke per gripper jaw
  4 mm
• Position sensing
  For proximity sensor
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Max. mass per external gripper finger
  120 g
• Housing material
  Aluminum, anodized
• Max. gripper jaw angular play ax, ay
  0 deg
• Type code
  DHPC
• Design
  Connection direction at side Positively driven motion sequence
• Max. operating frequency of pneumatic gripper
  3 Hz
• Corrosion resistance class (CRC)
  0 - No corrosion stress
• Maximum force on gripper jaw Fz, static
  29 N
• Product weight
  66 g
• Max. interchangeability
  0.2 mm
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Gripper function
  Parallel
• Symbol
  00997349
• Min. closing time at 6 bar
  12 ms
• Operating pressure
  3.5 bar ... 8 bar
Rotational symmetry
≤ 0.2 mm
Mode of operation
Single-acting Open
Size
10
Max. gripper jaw backlash Sz
0 mm
Number of gripper jaws
2
Guide
Ball guide
Total gripping force at 6 bar, closing
32.8 N
Gripping force per gripper jaw at 6 bar, closing
16.4 N
Maximum torque on gripper jaw, My static
0.27 Nm
Pneumatic connection
M3
Min. opening time at 6 bar
22 ms
Ambient temperature
-10 °C ... 60 °C
Maximum torque on gripper jaw, Mx static
0.13 Nm
Type of mounting
Optionally: With internal thread and dowel pin
Gripper jaw material
High-alloy stainless steel
Mass moment of inertia
0.062 kgcm²
Maximum torque on gripper jaw, Mz static
0.13 Nm
Note on materials
Free of copper and PTFE RoHS-compliant

Related documents 8116778 Specs
