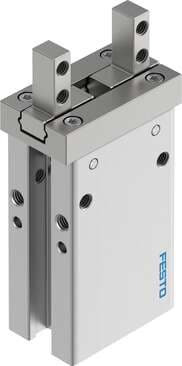

8116760 Festo Pneumatic Grippers

Product Details

• Operating pressure
  3.5 bar ... 8 bar
• Rotational symmetry
  ≤ 0.2 mm
• Type code
  DHPC
• Mode of operation
  Single-acting Open
• Max. operating frequency of pneumatic gripper
  3 Hz
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Ambient temperature
  -10 °C ... 60 °C
• Product weight
  57 g
• Max. gripper jaw backlash Sz
  0 mm
• Number of gripper jaws
  2
• Guide
  Ball guide
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Maximum torque on gripper jaw, Mx static
  0.13 Nm
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Size
  10
• Max. gripper jaw angular play ax, ay
  0 deg
• Mounting position
  Any
• Gripper function
  Parallel
• Min. closing time at 6 bar
  26 ms
• Gripping force per gripper jaw at 6 bar, closing
  16.4 N
Maximum torque on gripper jaw, Mz static
0.13 Nm
Position sensing
For proximity sensor
Total gripping force at 6 bar, closing
32.8 N
Corrosion resistance class (CRC)
0 - No corrosion stress
Maximum torque on gripper jaw, My static
0.27 Nm
Maximum force on gripper jaw Fz, static
29 N
Pneumatic connection
M3
Stroke per gripper jaw
2 mm
Max. interchangeability
0.2 mm
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Design
Connection direction at side Positively driven motion sequence
Symbol
00997349
Min. opening time at 6 bar
28 ms
Mass moment of inertia
0.045 kgcm²
Max. mass per external gripper finger
120 g
Type of mounting
Optionally: With internal thread and dowel pin
Gripper jaw material
High-alloy stainless steel
Housing material
Aluminum, anodized

Related documents 8116760 Specs
