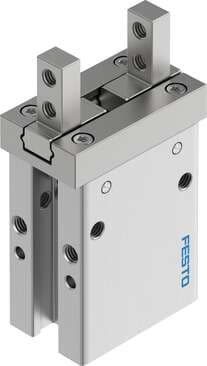

8116753 Festo Pneumatic Grippers

Product Details

• Operating pressure
  2 bar ... 8 bar
• Max. interchangeability
  0.2 mm
• Mode of operation
  Double-acting
• Total gripping force at 6 bar, opening
  51.2 N
• Min. closing time at 6 bar
  14 ms
• Ambient temperature
  -10 °C ... 60 °C
• Maximum torque on gripper jaw, My static
  0.27 Nm
• Max. gripper jaw backlash Sz
  0 mm
• Number of gripper jaws
  2
• Symbol
  00991894
• Min. opening time at 6 bar
  12 ms
• Corrosion resistance class (CRC)
  0 - No corrosion stress
• Maximum torque on gripper jaw, Mx static
  0.13 Nm
• Pneumatic connection
  M3
• Size
  10
• Rotational symmetry
  ≤ 0.2 mm
• Mounting position
  Any
• Design
  Connection direction at side Positively driven motion sequence
• Position sensing
  For proximity sensor
• Gripping force per gripper jaw at 6 bar, opening
  25.6 N
Maximum force on gripper jaw Fz, static
29 N
Product weight
49 g
Stroke per gripper jaw
2 mm
Type code
DHPC
Guide
Ball guide
Max. operating frequency of pneumatic gripper
3 Hz
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Mass moment of inertia
0.04 kgcm²
Max. mass per external gripper finger
120 g
Housing material
Aluminum, anodized
Max. gripper jaw angular play ax, ay
0 deg
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Gripper function
Parallel
Total gripping force at 6 bar, closing
43 N
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Gripping force per gripper jaw at 6 bar, closing
21.5 N
Maximum torque on gripper jaw, Mz static
0.13 Nm
Note on materials
Free of copper and PTFE RoHS-compliant
Type of mounting
Optionally: With internal thread and dowel pin
Gripper jaw material
High-alloy stainless steel

Related documents 8116753 Specs
