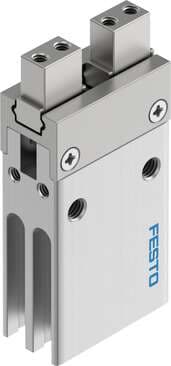

8116737 Festo Pneumatic Grippers

Product Details

• Size
  6
• Rotational symmetry
  ≤ 0.2 mm
• Max. interchangeability
  0.2 mm
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Mounting position
  Any
• Type code
  DHPC
• Position sensing
  For proximity sensor
• Max. operating frequency of pneumatic gripper
  3 Hz
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Operating pressure
  1.5 bar ... 8 bar
• Max. gripper jaw backlash Sz
  0 mm
• Number of gripper jaws
  2
• Design
  Connection direction at side Positively driven motion sequence
• Total gripping force at 6 bar, closing
  11 N
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Stroke per gripper jaw
  2 mm
• Max. gripper jaw angular play ax, ay
  0 deg
• Gripper function
  Parallel
• Symbol
  00991894
• Min. opening time at 6 bar
  9 ms
Corrosion resistance class (CRC)
0 - No corrosion stress
Mass moment of inertia
0.011 kgcm²
Gripping force per gripper jaw at 6 bar, closing
5.5 N
Product weight
25 g
Mode of operation
Double-acting
Guide
Ball guide
Total gripping force at 6 bar, opening
14.6 N
Min. closing time at 6 bar
11 ms
Ambient temperature
-10 °C ... 60 °C
Maximum torque on gripper jaw, My static
0.04 Nm
Maximum torque on gripper jaw, Mx static
0.02 Nm
Pneumatic connection
M3
Gripping force per gripper jaw at 6 bar, opening
7.3 N
Maximum force on gripper jaw Fz, static
5 N
Maximum torque on gripper jaw, Mz static
0.02 Nm
Max. mass per external gripper finger
18 g
Housing material
Aluminum, anodized
Gripper jaw material
High-alloy stainless steel
Type of mounting
Optionally: Direct fastening via thread
Note on materials
Free of copper and PTFE RoHS-compliant

Related documents 8116737 Specs
