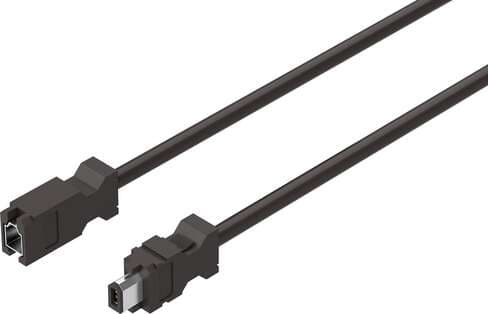

8097197 Festo Cable Assemblies

Product Details

• Type code
  NEFM
• Electrical connection 1, connection type
  Socket
• Electrical connection 1, number of pins/wires
  6
• Electrical connection 2, function
  Control side
• Electrical connection 2, connection pattern
  00995653
• Cable characteristic
  Standard
• Cable design
  4 x (2 x 0.081 mm²) + 1 x (2 x 0.205 mm²)
• Bending radius, fixed cable installation
  ≥ 68 mm
• Product weight
  56 g
• Electrical connection 1, function
  Field device end
• Electrical connection for input 1, connection pattern
  00995793
• Electrical connection 2, connection technology
  RJ45
• Electrical connection 2, occupied pins/wires
  6
• Surge resistance
  2 kV
• Operating voltage range AC
  0 V ... 30 V
• Degree of protection
  IP20
• Note on materials
  Contains paint-wetting impairment substances RoHS-compliant
• Material of cable sheath
  PVC
• Housing colour
  Gray
• Nominal conductor cross section
  0.081 mm² 0.205 mm²
Electrical connection 1, occupied pins/wires
6
Electrical connection 2, number of pins/wires
8
Cable length
0.5 m
CE marking (see declaration of conformity)
As per EU RoHS directive
Color cable sheath
Black
Insulating sheath material
PVC
Electrical connection 1, connection technology
Connection diagram RE
Electrical connection 2, connection type
Plug
DC operating voltage range
0 V ... 30 V
Cable diameter
6.8 mm
Ambient temperature
-40 °C ... 80 °C
Corrosion resistance class (CRC)
0 - No corrosion stress
Shield
yes
Electrical connection 1, design
Rectangular
Electrical connection 1, cable outlet
Straight
Electrical connection 2, design
Rectangular
Electrical connection 2, cable outlet
Straight
Current rating at 40°C
1.6 A
Connector cable test conditions
Test conditions on request
Note on degree of protection
In mounted state
Contamination level
3
Housing material
PVC
