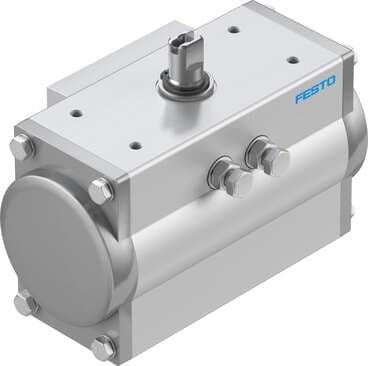

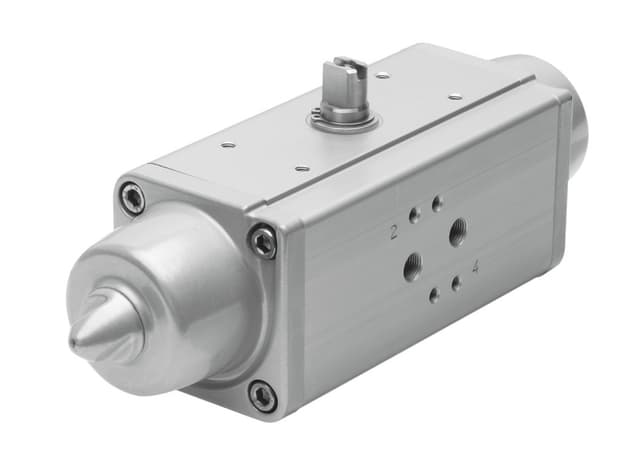

8048152 Festo Quarter Turn Actuators

Name: 8048152
Brand: Festo

Part#:8048152

Alt. Part#:DFPD-480-RP-90-RS60-F1012-R3-EP

Manufacturer:Festo

Category:Quarter Turn Actuators

Product Lifecycle:Active

Product description

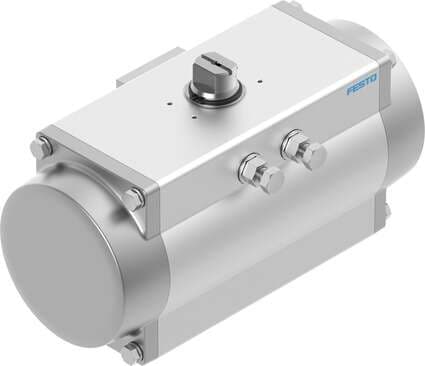

semi-rotary drive DFPD-480-RP-90-RS60-F1012-R3-EP single-acting, rack and pinion design, connection pattern to NAMUR VDI/VDE 3845 for mounting solenoid valves, position sensors and positioners, standard connection to process valve fitting ISO 5211, epoxy

Product Details

Nominal operating pressure
6 bar
Operating pressure
2 bar ... 8 bar
Safety function
The fundamental safety function is that the control valve moves to the switching position when the compressed air is turned off. It is reset by spring force.
Swivel angle
90 deg
Design
Gear rack/pinion
Valve connection conforms to standard
VDI/VDE 3845 (NAMUR)
End-position adjusting range at nominal swivel angle
-5 deg ... 5 deg
Mode of operation
Single-acting
Symbol
00991266
ATEX category for dust
II 2D
Ambient temperature
-20 °C ... 80 °C
Storage temperature
-20 °C ... 60 °C
Pneumatic connection
G1/4
Cover material
Die-cast aluminum, coated
Housing material
Wrought aluminum alloy, anodized
Shaft material
High-alloy stainless steel
Devices type according to VDMA 66413
Safety device
PFH
1.01E-7
End-position adjusting range at 0°
-5 deg ... 5 deg
Type code
DFPD

Standard connection for valve

ISO 5211

Safety integrity level (SIL)

Up to SIL 2 low demand mode up to SIL 1 high demand mode

Type of (ignition) protection for dust

Ex h IIIC T105°C Db X

Explosion prevention and protection

Zone 1 (ATEX) Zone 22 (ATEX)

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Torque at nominal operating pressure and 90° swivel angle

181 Nm

Product weight

18485 g

Note on materials

RoHS-compliant

Cam material

Steel

Size of valve actuator

480

MTTFd

1126 years

Flange hole pattern

F1012

Depth shaft connection

29 mm

Closing direction

Clockwise closing

Connection for valve positioner and position sensor conforms to standard

VDI/VDE 3845 size AA 2

Certified for safety function to ISO 13849 and IEC 61508 (SIL)

Product can be used in safety-related parts of control systems up to SIL 2, low demand up to SIL 3 in a redundant architecture

Information on operating and pilot media

Dew point min. 10 °C below the ambient and medium temperature Operation with oil lubrication possible (required for further use)

Spring return torque at 0° swivel angle

170 Nm

Spring return torque with 90° swivel angle

336.1 Nm

Seals material

NBR

Material of piston

Die-cast aluminum

Maritime classification

See certificate

Mounting position

Any

ATEX category gas

II 2G

Explosive ambient temperature

-20°C <= Ta <= +80°C

CE marking (see declaration of conformity)

as per EU explosion protection directive (ATEX)

Note about the torque

The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.

Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°

17.2 l

Shaft connection

T27

Material of spring

Spring steel

Material of bearing

POM

Type of ignition protection for gas

Ex h IIC T4 Gb X

Certificate issuing authority

DNVGL TAP00001CE German Technical Control Board (TÜV) Rheinland 968/V 1106.00/19

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Torque at nominal operating pressure and 0° swivel angle

347.1 Nm

PFD

7.8E-4

Material of sub-base

Wrought aluminum alloy, anodized

Material of screws

High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
