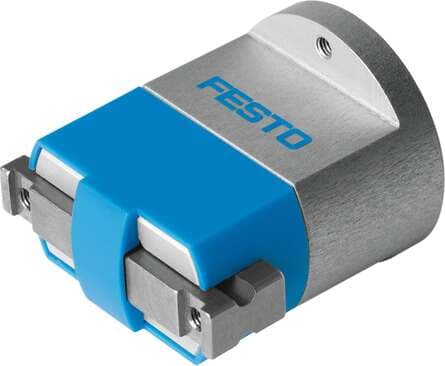

197567 Festo Grippers

Product Details

• Stroke per gripper jaw
  3 mm
• Size
  12
• Type code
  HGPM
• Design
  Inclined plane
• Max. operating frequency of pneumatic gripper
  4 Hz
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Maximum force on gripper jaw Fz, static
  30 N
• Pneumatic connection
  M3
• Housing material
  Wrought aluminum alloy Anodized
• Rotational symmetry
  0.15 mm
• Mode of operation
  Single-acting Open
• Total gripping force at 6 bar, opening
  27 N
• Min. closing time at 6 bar
  3.7 ms
• Ambient temperature
  5 °C ... 60 °C
• Maximum torque on gripper jaw, Mx static
  0.5 Nm
• Type of mounting
  With internal thread
• Max. interchangeability
  0.2 mm
• Gripper function
  Parallel
• Maximum torque on gripper jaw, Mz static
  0.5 Nm
• Gripper jaw material
  High-alloy steel
Pneumatic gripper repetition accuracy
≤ 0.05 mm
Position sensing
None
Min. opening time at 6 bar
11 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Product weight
62 g
Cover cap material
POM
Number of gripper jaws
2
Symbol
00991897
Operating pressure
4 bar ... 8 bar
Gripping force per gripper jaw at 6 bar, closing
13.5 N
Maximum torque on gripper jaw, My static
0.5 Nm
Note on materials
Free of copper and PTFE

Related documents 197567 Specs
