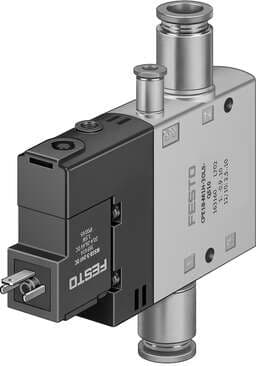

163772 Festo Directional Control Valves

Product Details

• Switching time off
  18 ms
• Maritime classification
  See certificate
• Width
  18 mm
• Operating pressure
  -0.9 bar ... 10 bar
• Reset method
  Pneumatic spring
• Type code
  CPE18
• Manual override
  Detenting via accessory Non-detenting
• Lap
  Overlap
• Pneumatic working port
  QS-8
• Operating voltage
  110V AC
• Degree of protection
  IP65 as per IEC 60529
• Sealing principle
  Soft
• Flow direction
  Non-reversible
• Max. positive test pulse with 0 signal
  3300 µs
• Permissible voltage fluctuations
  -15 % / +10 %
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pilot exhaust air port 82
  M5
• Note on materials
  RoHS-compliant
• Valve function
  3/2, open, monostable
• Design
  Piston gate valve
Nominal width
8 mm
Pilot air supply port
External
Pilot pressure
2.5 bar ... 10 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot air port 12
M5
Pneumatic connection 2
QS-8
Type of control
Pilot-controlled
Valve position ID
Label holder
Duty cycle
100%
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-5 °C ... 50 °C
Type of mounting
With through-hole
Housing material
Die-cast aluminum
Actuation type
Electrical
Standard nominal flow rate
850 l/min
Certification
c UL us - Recognized (OL)
Mounting position
Any
Symbol
00991402
Max. negative test pulse on 1 signal
3100 µs
On switching time
28 ms
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 1
QS-8
Seals material
NBR
Coil characteristics
110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Electrical connection
Form C
Pneumatic connection 3
G1/4

Related documents 163772 Specs
