162600 Festo Compressed Air Preparation Units

162600 on Powermatic Associates
Festo

Part#:162600

Manufacturer:Festo

Alt. Part#:LR-3/8-D-7-O-MINI

Product Lifecycle:Active

Get a quick Quote!

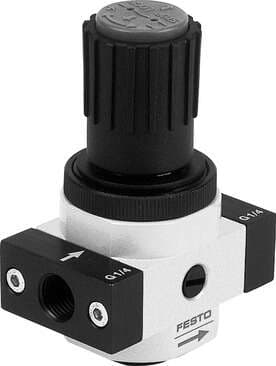

pressure regulator LR-3/8-D-7-O-MINI With threaded connection plate, without pressure gauge Size: Mini, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Any, Design structure: directly-controlled diaphragm regulator

About the manufacturer: Festo is one of the manufacturers that offers Compressed Air Preparation Units that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 162600 Festo price in the box on the right side or send a quick quote.

Product Details

  • Maritime classification
    See certificate
  • Actuator lock
    Rotary knob with detent
  • Operating pressure
    1 bar ... 16 bar
  • Pressure gauge
    G1/8 prepared
  • Product weight
    300 g
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Material of sub-base
    Die-cast zinc
  • Series
    D
  • Mounting position
    Any
  • Max. pressure hysteresis
    0.2 bar
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Pneumatic connection 2
    G3/8
  • Seals material
    NBR
  • Type code
    LR
  • Controller function
    Outlet pressure constant With secondary exhausting
  • Symbol
    00991540
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Size
    Mini
  • Design
    Directly controlled diaphragm regulator
  • Pressure regulation range
    0.5 bar ... 7 bar
  • Temperature of medium
    -10 °C ... 60 °C
  • Standard nominal flow rate
    1800 l/min
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Pneumatic connection 1
    G3/8
  • Ambient temperature
    -10 °C ... 60 °C
  • Housing material
    Die-cast zinc
  • Type of mounting
    Front panel mounting With accessories

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 162600 Specs

162600 162600 DataSheet.pdf
