153508 Festo Pressure Control Valves

153508 on Powermatic Associates
Festo

Part#:153508

Manufacturer:Festo

Alt. Part#:LRLL-3/8-QS-12

Product Lifecycle:Active

Get a quick Quote!

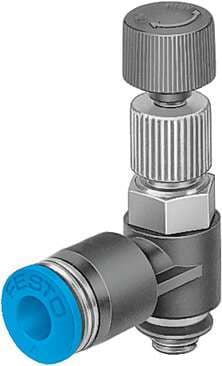

differential pressure regulator LRLL-3/8-QS-12 Without manometer, with male thread and QS plug connector. Controller function: (* Differential pressure, constant, * with return flow), Pneumatic connection, port 1: G3/8, Pneumatic connection, port 2: QS-

About the manufacturer: Festo is one of the manufacturers that offers Pressure Control Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 153508 Festo price in the box on the right side or send a quick quote.

Product Details

  • Pneumatic connection 2
    QS-12
  • Pneumatic connection 1
    G3/8
  • Ambient temperature
    0 °C ... 60 °C
  • Mounting position
    Any
  • Material of screwed trunnion
    Brass Nickel-plated
  • Type of mounting
    Screw-in
  • Actuator lock
    Counter-locking
  • Nominal flow rate, closed
    423 l/min
  • Controller function
    Differential pressure constant With return flow function
  • Pressure regulation range
    2 bar ... 6 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Type code
    LRLL
  • Nominal flow rate, open
    518 l/min
  • Inlet pressure 1
    0 bar ... 9 bar
  • Housing material
    PBT-reinforced
  • Design
    Directly controlled piston regulator with continuous compressed air supply
  • Note on materials
    RoHS-compliant
  • Material of threaded seal
    PTFE
  • Symbol
    00991535
  • Product weight
    73 g
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 153508 Specs

153508 153508 DataSheet.pdf
