1492299 Festo Process & Media Valves
Part#:1492299
Manufacturer:Festo
Alt. Part#:VZWF-L-M22C-N114-400-V-2AP4-10-R1
Product Lifecycle:Active
Get a quick Quote!

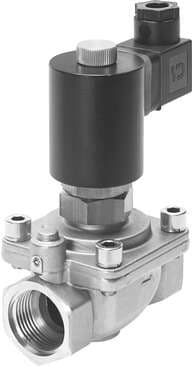

solenoid valve VZWF-L-M22C-N114-400-V-2AP4-10-R1 force pilot operated, NPT11/4" connection. Design structure: (* Diaphragm valve, * forced), Type of actuation: electrical, Sealing principle: soft, Assembly position: Magnet standing, Mounting type: Line in
About the manufacturer: Festo is one of the manufacturers that offers Process & Media Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 1492299 Festo price in the box on the right side or send a quick quote.
Product Details
- Actuation type Electrical
- Type of mounting Line installation
- Manual override None
- Flow direction Non-reversible
- Symbol 00992976
- Flow rate Kv 20 m³/h
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Seals material FPM
- CE marking (see declaration of conformity) as per EU pressure equipment directive As per EU low voltage directive
- Type code VZWF
- Sealing principle Soft
- Electrical connection Form A Rectangular design
- Nominal width 40 mm
- Max. viscosity 22 mm²/s
- Medium pressure 0 bar ... 10 bar
- On switching time 620 ms
- Material number of housing 1.4581
- Degree of protection IP65
- Differential pressure 0 bar
- Standard nominal flow rate 21370 l/min
- Housing material Cast stainless steel
- Corrosion resistance class (CRC) 3 - High corrosion stress
- Design Diaphragm valve Force pilot operated
- Fitting connection 1 1/4 NPT
- Medium Compressed air as per ISO 8573-1:2010 [7:-:-] Other flow media on request
- Permissible voltage fluctuations +/- 10 %
- Leak rate to EN 12266-1 A
- Ambient temperature -10 °C ... 35 °C
- Switching time off 1140 ms
- Product weight 4500 g
- Material number of screw 1.4301
- Mounting position Magnet, upright
- Valve function 2/2, closed, monostable
- Nominal pressure of fitting PN 40
- Coil characteristics 110 V AC: 50/60 Hz, initial power 30.0 VA, holding power 30.0 VA
- Temperature of medium -10 °C ... 80 °C
- Material of screws High-alloy stainless steel
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
