1492258 Festo Process & Media Valves
Part#:1492258
Manufacturer:Festo
Alt. Part#:VZWF-B-L-M22C-N1-275-2AP4-6
Product Lifecycle:Active
Get a quick Quote!

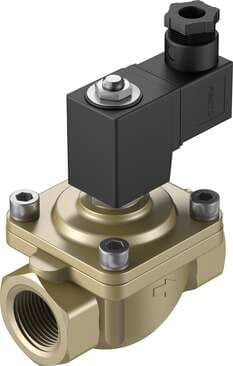

solenoid valve VZWF-B-L-M22C-N1-275-2AP4-6 force pilot operated, NPT1" connection. Design structure: (* Diaphragm valve, * forced), Type of actuation: electrical, Sealing principle: soft, Assembly position: Magnet standing, Mounting type: Line installatio
About the manufacturer: Festo is one of the manufacturers that offers Process & Media Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 1492258 Festo price in the box on the right side or send a quick quote.
Product Details
- Design Diaphragm valve Force pilot operated
- Electrical connection Form A Rectangular design
- Manual override None
- Symbol 00992976
- Flow rate Kv 11 m³/h
- Housing material Cast brass
- Product weight 1500 g
- Actuation type Electrical
- Mounting position Magnet, upright
- Flow direction Non-reversible
- Coil characteristics 110 V AC: 50/60 Hz, initial power 19.0 VA, holding power 16.0 VA
- Temperature of medium -10 °C ... 80 °C
- Switching time off 290 ms
- Seals material NBR
- CE marking (see declaration of conformity) As per EU low voltage directive
- Type code VZWF
- Type of mounting Line installation
- Nominal pressure of fitting PN 40
- Permissible voltage fluctuations +/- 10 %
- Max. viscosity 22 mm²/s
- Leak rate to EN 12266-1 A
- On switching time 275 ms
- Material number of screw 1.4301
- Sealing principle Soft
- Nominal width 27.5 mm
- Medium Compressed air as per ISO 8573-1:2010 [7:-:-] Other flow media on request
- Medium pressure 0 bar ... 6 bar
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Material number of housing CW617N
- Degree of protection IP65
- Fitting connection 1 NPT
- Valve function 2/2, closed, monostable
- Differential pressure 0 bar
- Ambient temperature -10 °C ... 35 °C
- Standard nominal flow rate 11750 l/min
- Material of screws High-alloy stainless steel
- Corrosion resistance class (CRC) 1 - Low corrosion stress
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents 1492258 Specs
