1492186 Festo Process & Media Valves
Part#:1492186
Manufacturer:Festo
Alt. Part#:VZWF-B-L-M22C-N1-275-E-1P4-6-R1
Product Lifecycle:Active
Get a quick Quote!

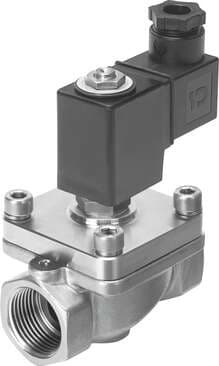

solenoid valve VZWF-B-L-M22C-N1-275-E-1P4-6-R1 force pilot operated, NPT1" connection. Design structure: (* Diaphragm valve, * forced), Type of actuation: electrical, Sealing principle: soft, Assembly position: Magnet standing, Mounting type: Line install
About the manufacturer: Festo is one of the manufacturers that offers Process & Media Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 1492186 Festo price in the box on the right side or send a quick quote.
Product Details
- Electrical connection Form A Rectangular design
- Valve function 2/2, closed, monostable
- Medium Compressed air as per ISO 8573-1:2010 [7:-:-] Other flow media on request
- Ambient temperature -10 °C ... 35 °C
- Flow rate Kv 11 m³/h
- Seals material EPDM
- Actuation type Electrical
- Mounting position Magnet, upright
- Flow direction Non-reversible
- Symbol 00992976
- Max. viscosity 22 mm²/s
- On switching time 275 ms
- Material number of housing 1.4581
- Degree of protection IP65
- Type of mounting Line installation
- Nominal pressure of fitting PN 40
- Permissible voltage fluctuations +/- 10 %
- Temperature of medium -10 °C ... 80 °C
- Leak rate to EN 12266-1 A
- Material of screws High-alloy stainless steel
- Product weight 1500 g
- Design Diaphragm valve Force pilot operated
- Sealing principle Soft
- Nominal width 27.5 mm
- Differential pressure 0 bar
- Coil characteristics 24 V DC: 11.0 W
- Switching time off 290 ms
- Housing material Cast stainless steel
- Material number of screw 1.4301
- Type code VZWF
- Fitting connection 1 NPT
- Manual override None
- Medium pressure 0 bar ... 6 bar
- Standard nominal flow rate 11750 l/min
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Corrosion resistance class (CRC) 3 - High corrosion stress
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents 1492186 Specs
