1491904 Festo Process & Media Valves

Name: 1491904
Brand: Festo

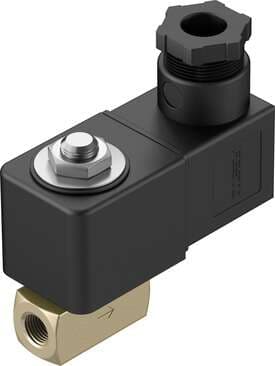

Festo 1491904 solenoid valve VZWD-L-M22C-M-G18-15-V-2AP4-30 Directly actuated, G1/8" connection. Design structure: Directly actuated poppet valve, Type of actuation: electrical, Sealing principle: soft, Assembly position: Any, Mounting type: Line installation

Part#:1491904

Manufacturer:Festo

Alt. Part#:VZWD-L-M22C-M-G18-15-V-2AP4-30

Product Lifecycle:Active

Get a quick Quote!

solenoid valve VZWD-L-M22C-M-G18-15-V-2AP4-30 Directly actuated, G1/8" connection. Design structure: Directly actuated poppet valve, Type of actuation: electrical, Sealing principle: soft, Assembly position: Any, Mounting type: Line installation

About the manufacturer: Festo is one of the manufacturers that offers Process & Media Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1491904 Festo price in the box on the right side or send a quick quote.

Product Details

Actuation type
Electrical
Fitting connection
G1/8
Flow direction
Non-reversible
Coil characteristics
110 V AC: 50/60 Hz, initial power 10.5 VA, holding power 8.0 VA
Symbol
00992979
Max. viscosity
22 mm²/s
Standard nominal flow rate
95 l/min
Material number of housing
CW614N
Degree of protection
IP65
Mounting position
Any
Valve function
2/2, closed, monostable
Differential pressure
0 bar
Duty cycle
100%
Temperature of medium
-10 °C ... 80 °C
On switching time
25 ms
Product weight
300 g
Sealing principle
Soft
Nominal width
1.5 mm
Nominal pressure of fitting PN
50
Insulation class
F

Permissible voltage fluctuations

+/- 10 %

Leak rate to EN 12266-1

Switching time off

10 ms

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Type code

VZWD

Electrical connection

Form A Rectangular design

Medium

Compressed air as per ISO 8573-1:2010 [7:4:4] Other flow media on request

Reset method

Mechanical spring

Medium pressure

0 bar ... 30 bar

Flow rate Kv

0.09 m³/h

Housing material

Brass

Corrosion resistance class (CRC)

1 - Low corrosion stress

Design

Directly controlled poppet valve

Type of mounting

Line installation

Manual override

None

Type of control

Direct

Ambient temperature

-10 °C ... 35 °C

Seals material

FPM

CE marking (see declaration of conformity)

As per EU low voltage directive

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
