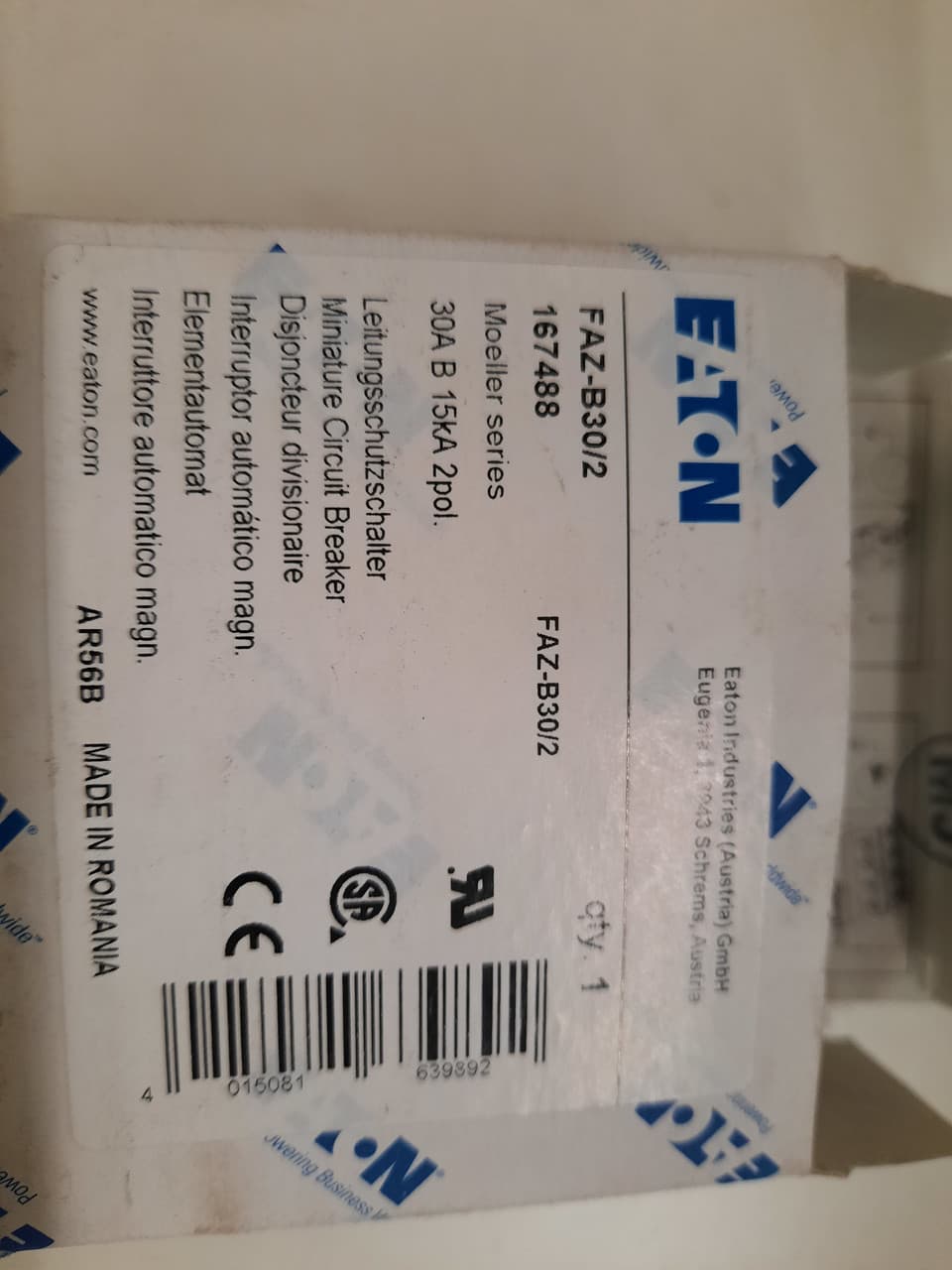

FAZ-B30/2 Eaton Miniature Circuit Breakers (MCBs)
Part#:FAZ-B30/2
Manufacturer:Eaton
Category:Miniature Circuit Breakers (MCBs)
Product Lifecycle:Active
Get a quick Quote!
Eaton FAZ supplementary protector,UL 1077 Industrial miniature circuit breaker - supplementary protector,Low levels of inrush current are expected,30 A,15 kAIC,Two-pole,3-5X /n,50-60 Hz,Standard terminals,B Curve
About the manufacturer: Eaton is one of the manufacturers that offers Miniature Circuit Breakers (MCBs) that you can order at Powermatic Associates site. At Eaton, we are dedicated to improving quality of life and preserving the environment through power management technologies that emphasize reliability, efficiency, safety, and sustainability. Our attention is on impactful solutions, and we are committed to their success.
Check out the FAZ-B30/2 Eaton price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 2 Pole
- Current Rating 30 A
- Trip Curve B
- SCCR 10 kA
- UL Standard 1077
- UL CCN QVNU2
- UL File No. E177451
- Terminal Type Compression
- Amps: 32 A
- Terminal Type: Line/Load
- Trip Setting: 3 to 5 x Rated Current
- Mounting: DIN Rail
- Wire Size: 18 to 4/18 to 8 AWG
- Volts: 277/480 VAC
- Interrupting Rating: 10 kA
- Approval: UL 1077
- Size: 1.4 Inch Width x 2.36 Inch Depth x 3.15 Inch Height
- Poles: 2
- UPC: 015081639896
- Shipping Weight: 0.55
- Shipping Width: 1.50 In.
- Type: Current Limiting
- Series: FAZ
- Shipping Length: 1.38 In.
- Shipping Height: 1.38 In.
- Number of poles Two-pole
- Trip Type 3-5X /n
- Amperage Rating 30 A
- Application Suitable for applications where low levels of inrush current are expected
- Terminals Standard
- Circuit protection B curve
- Frequency rating 50-60 Hz
- Type UL 1077 Industrial miniature circuit breaker - supplementary protector
- Interrupt rating 15 kAIC
- Catalog Notes For applications that require protection due to potential wiring damage at low fault conditions.
- Product Width 1.5 in
- Warranty 1 year
- Certifications IEC 60947-2 UL 1077 CSA Std. C22.2 No.235
- Product Weight .53 lb
- Product Height 1.38 in
- Product Length/Depth 1.38 in
- EAN 4015081639892
- Catalog Number FAZ-B30/2
- Product Name Eaton FAZ supplementary protector
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
