WLS28-2CW285DXPBQ Banner Light Bars

Name: WLS28-2CW285DXPBQ
Brand: Banner

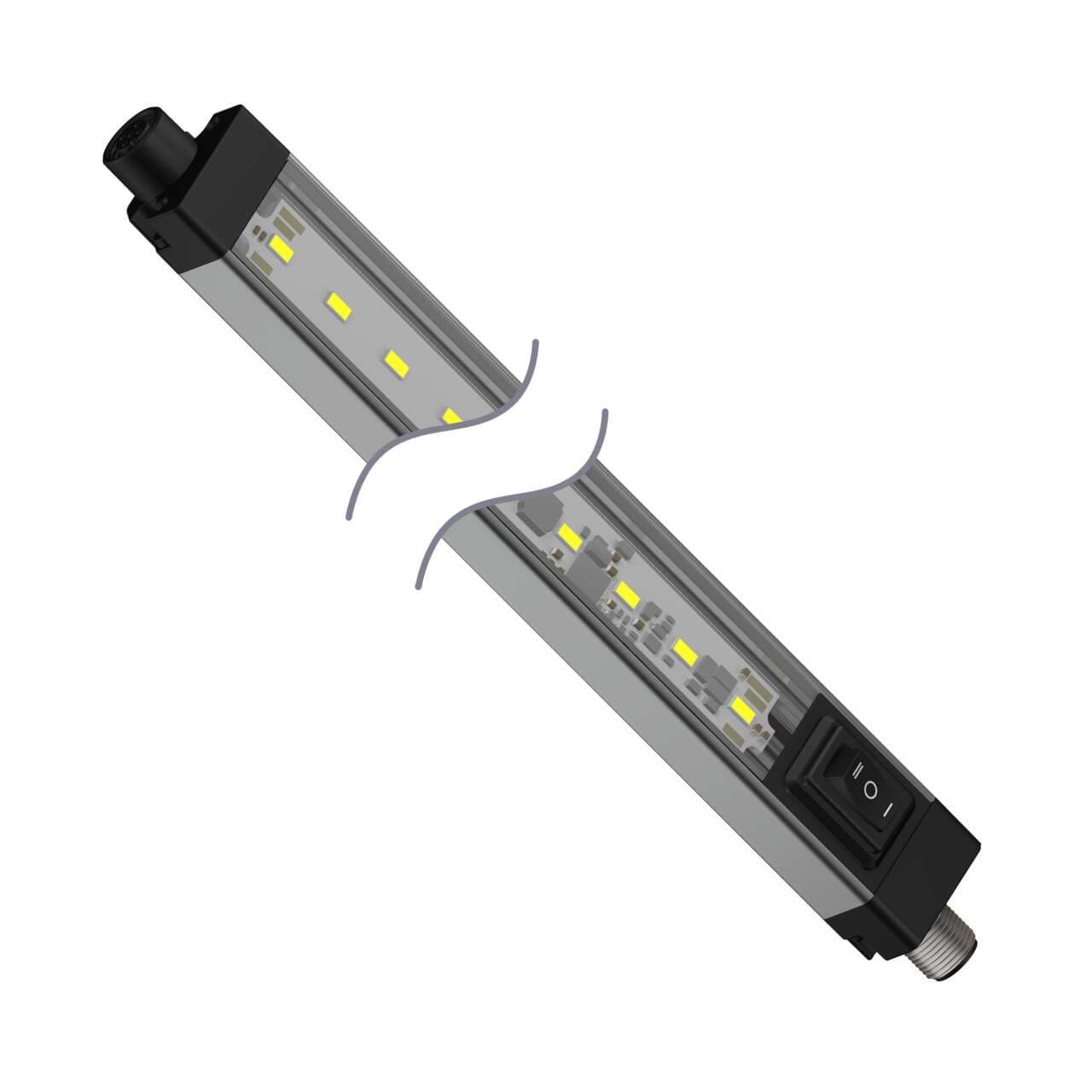

Banner WLS28-2CW285DXPBQ WLS28-2 Work Light Strip; Switched; Length: 285 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; Cascadable; 4-pin M12 Integral QD

Part#:WLS28-2CW285DXPBQ

Manufacturer:Banner

Alt. Part#:87819

Product Lifecycle:Active

Get a quick Quote!

WLS28-2 Work Light Strip; Switched; Length: 285 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; Cascadable; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS28-2CW285DXPBQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
408.2328 g
Country Of Origin
MX
Pro-Editor Compatible (Discrete)
No
Modbus RTU
No
Wireless
No
Feature: Audible
No
IO Link
No
Feature: Chemical Resistant
No
Feature: Cascade
Yes
Illumination Switch Function
I=Low; O=OFF; II=High
Feature: Hazardous Area
No
Storage Temp (°C)
-40 to 70
Primary Window Material
Polycarbonate Diffused
Min Op. Temperature (°C)
-40
Max Op. Temperature (°C)
70
Environmental Rating
IP50
Physical Dimensions (LxWxH or DxH mm)
365.0 x 28.0 x 25.0
Illuminated Length (LxWxH mm)
285.0
Supply Voltage
12-30 V dc
Number of Input Pins/Conductors
4

Dimming Option

High-Low-Off

Color 1 - Wavelength/Color Temp/Coordinates

6500K (Cool)

Connection

Integral QD

Animation Option 1

Solid On

Quick Disconnect Type

M12 (Euro)

Lumens Color 1

600

Color Option 1

White

Color Technology

Standard LED

Power

Power Source

Mounting Thread

No Thread

Number of Colors / Segments

Product Size (mm)

Housing Style

Linear Strip

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Illumination

Yes

Primary Housing Material

Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS28-2CW285DXPBQ Description

Banner Engineering WLS28-2CW285DXPBQ is a cascadable LED industrial task strip light/bar designed for a variety of lighting tasks. It features a high/low/off switch, diffused plastic window for 1-color cool white (W) LED illumination, and operates on a supply voltage of 12Vdc to 30Vdc with a nominal 24Vdc. The dimensions of this product are L285mm x W28mm, constructed with a polycarbonate (PC) window and aluminium housing for durability. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector, making installation straightforward. This linear light strip is designed for surface or wall mounting, offers a degree of protection rated at IP50, and can operate in ambient air temperatures ranging from -40°C to +70°C. It includes 1 x digital input (12-30Vdc) for color control and provides a luminous flux of 600 lumens.
