TL30BGYXXXNXQD Banner Signal Towers
Part#:TL30BGYXXXNXQD
Manufacturer:Banner
Category:Signal Towers
Alt. Part#:805381
Product Lifecycle:Active
Get a quick Quote!
TL30 Basic Tower Light; Black Housing: 2-Color Indicator; Voltage: 12-30 V dc; Environ. Rating: IP65; Input: Bimodal; Colors: Green Yellow; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL30BGYXXXNXQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 104.779752 g
- Country Of Origin MX
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Modbus RTU No
- Wireless No
- Feature: Audible No
- IO Link No
- Multi-Color Device Simultaneous Colors On
- Feature: Quick Disconnect Yes
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Primary Window Material Polycarbonate Diffused
- Storage Temp (°C) -40 to 70
- Min Op. Temperature (°C) -40
- Max Op. Temperature (°C) 50
- NEMA Type and UL Type Rating UL 4X, 13
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Environmental Rating IP65
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 130.7
- Input Type Bimodal (PNP/NPN)
- Max Input Response Time (ms) 1
- Supply Voltage 12-30 V dc
- Number of Input Pins/Conductors 5
- Max Current Color (mA) 40
- Color Option 1 Green
- Connection Integral QD
- Animation Option 1 Solid On
- Number of Tower Light Segments 2
- Color 2 - Wavelength/Color Temp/Coordinates 592 nm
- Lumens Color 2 6.5
- Color Option 2 Yellow
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Quick Disconnect Type M12 (Euro)
- Lumens Color 1 7.5
- Power DC
- Housing Style Base Mount - Tower
- Number of Colors / Segments 2
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Indication Yes
- Product Size (mm) 30
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Mounting Thread M22 x 1.5
- Power Source DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
TL30BGYXXXNXQD Description

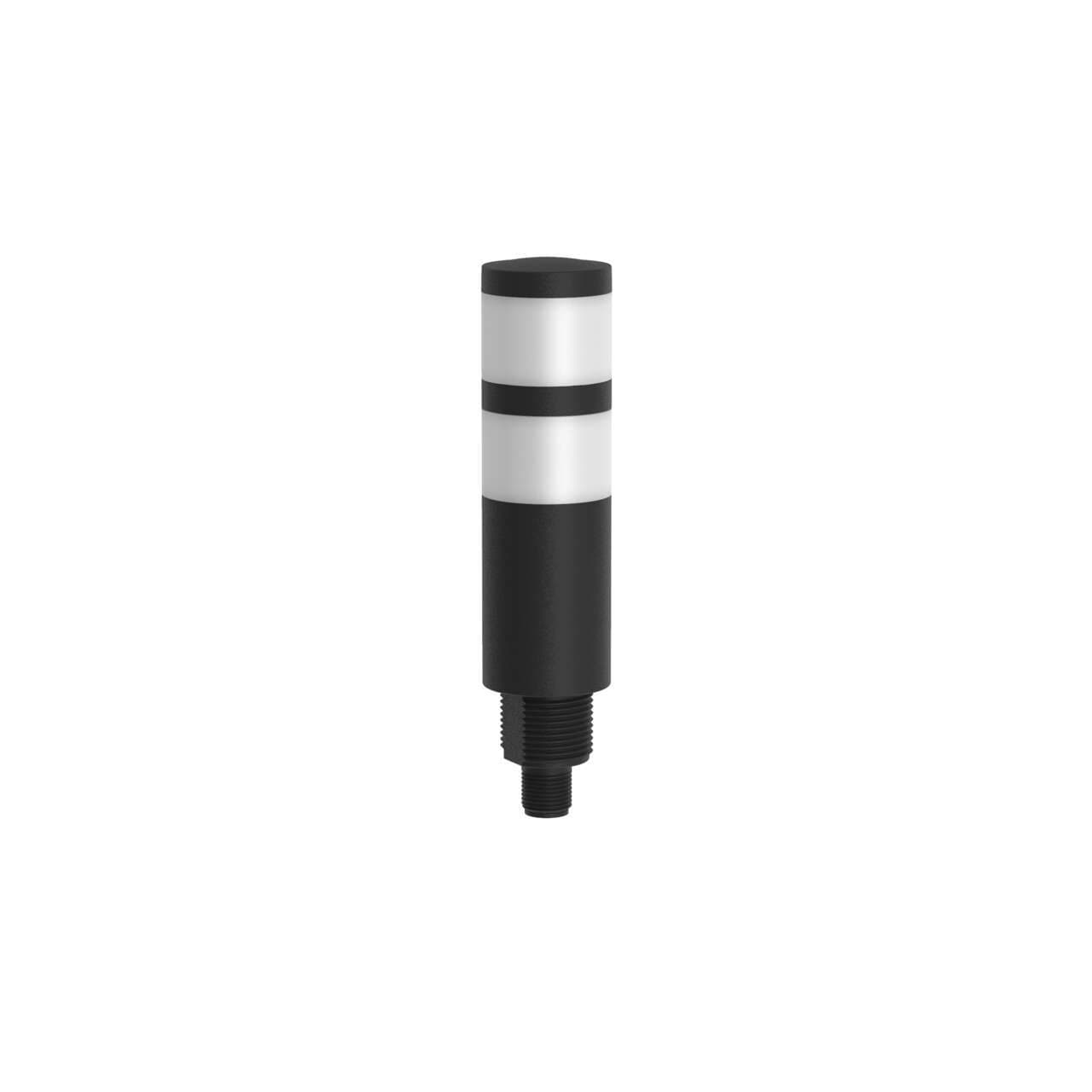

Banner Engineering TL30BGYXXXNXQD is a tower light from the Basic series, designed with a 2-tiers 2-color G+Y color pattern LED illumination. This monolithic tower light features a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It has a diameter of 30mm / 1-3/16" and is pre-equipped with a 5-pin M12 Euro-style QD connector for easy connection. The housing is black, and it operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). It offers versatile mounting options, including surface or base pole with an M22 thread. The TL30BGYXXXNXQD can operate in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP65, UL type 4X, and UL type 13, making it suitable for various environments. Its cylindrical shape is complemented by a current consumption of 40mA and it supports 2 x digital inputs (12-30Vdc; NPN/PNP) for color control.
