SM2A312FVQD
Banner
Product Lifecycle: Active

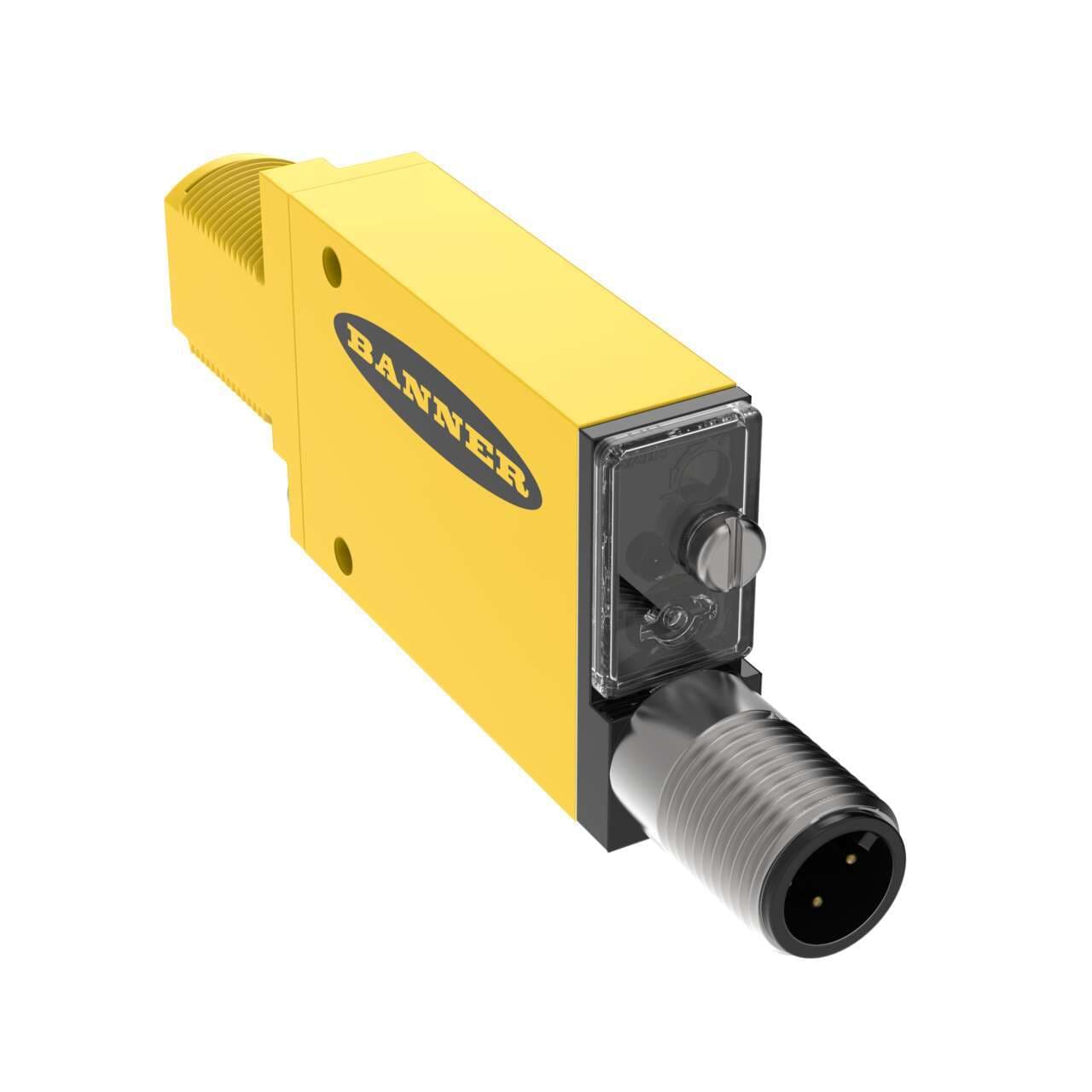

Banner Engineering SM2A312FVQD is a photo-electric fiber optic sensor within the SM2A312 series, featuring a potentiometer adjustment for glass fiber. This sensor is housed in thermoplastic with an acrylic lens and comes pre-equipped with a 3-pin 1/2" micro connector for connectivity. It operates on a supply voltage of 24Vac-240Vac, with nominal voltages of 200Vac and 220Vac, and can be mounted using an M18 threaded mount. Designed for operation in ambient air temperatures ranging from -20 to +70°C, it offers a high degree of protection with ratings of IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13. The sensor has a rectangular shape and includes 1 digital output (Solid-state AC output; SPST contact type), emits visible red light with a wavelength of 650 nm, and has a response time of 8ms (0.008 s).
![SM2A312FVQD](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Fa36edf84-0ac5-41df-8ecb-171b81be740b.jpeg&w=3840&q=75)
Banner Engineering SM2A312FVQD is a photo-electric fiber optic sensor within the SM2A312 series, featuring a potentiometer adjustment for glass fiber. This sensor is housed in thermoplastic with an acrylic lens and comes pre-equipped with a 3-pin 1/2" micro connector for connectivity. It operates on a supply voltage of 24Vac-240Vac, with nominal voltages of 200Vac and 220Vac, and can be mounted using an M18 threaded mount. Designed for operation in ambient air temperatures ranging from -20 to +70°C, it offers a high degree of protection with ratings of IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13. The sensor has a rectangular shape and includes 1 digital output (Solid-state AC output; SPST contact type), emits visible red light with a wavelength of 650 nm, and has a response time of 8ms (0.008 s).
Product details
- Minimum response time (ms)8
- Housing MaterialThermoplastic
- Feature: Hazardous AreaNo
- Feature: AudibleNo
- Feature: Timing (Hold/Delay)No
- IO LinkNo
- Special Feature: Bussable PowerNo
- Indicator Display TypeIndicator LEDs
- Special Feature: Remote TeachNo
- Delay at Power-up (ms)300
- Power Supply/Supply Voltage24-240 V ac
- AdjustmentsPotentiometer
- Intrinsically SafeNo
- Max Op. Temperature (°C)70
- Max Op. Relative Humidity (%)90% @ 50°C
- Min Op. Temperature (°C)-20
- Repeatability (µs)2600
- IP RatingIP67
- Output Type (Specific)Single Discrete
- Number of Pins3
- NEMA RatingNEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Quick Disconnect Type1/2 in. (Micro)
- OutputSolid-State AC Switch
- Fiber TypeGlass Only
- ConnectionIntegral QD
- Primary Housing MaterialThermoplastic
- Color LED - AmplifiersRed
- Input/OutputDiscrete
- Housing StyleRectangular w/M18 Mount
- PowerAC
