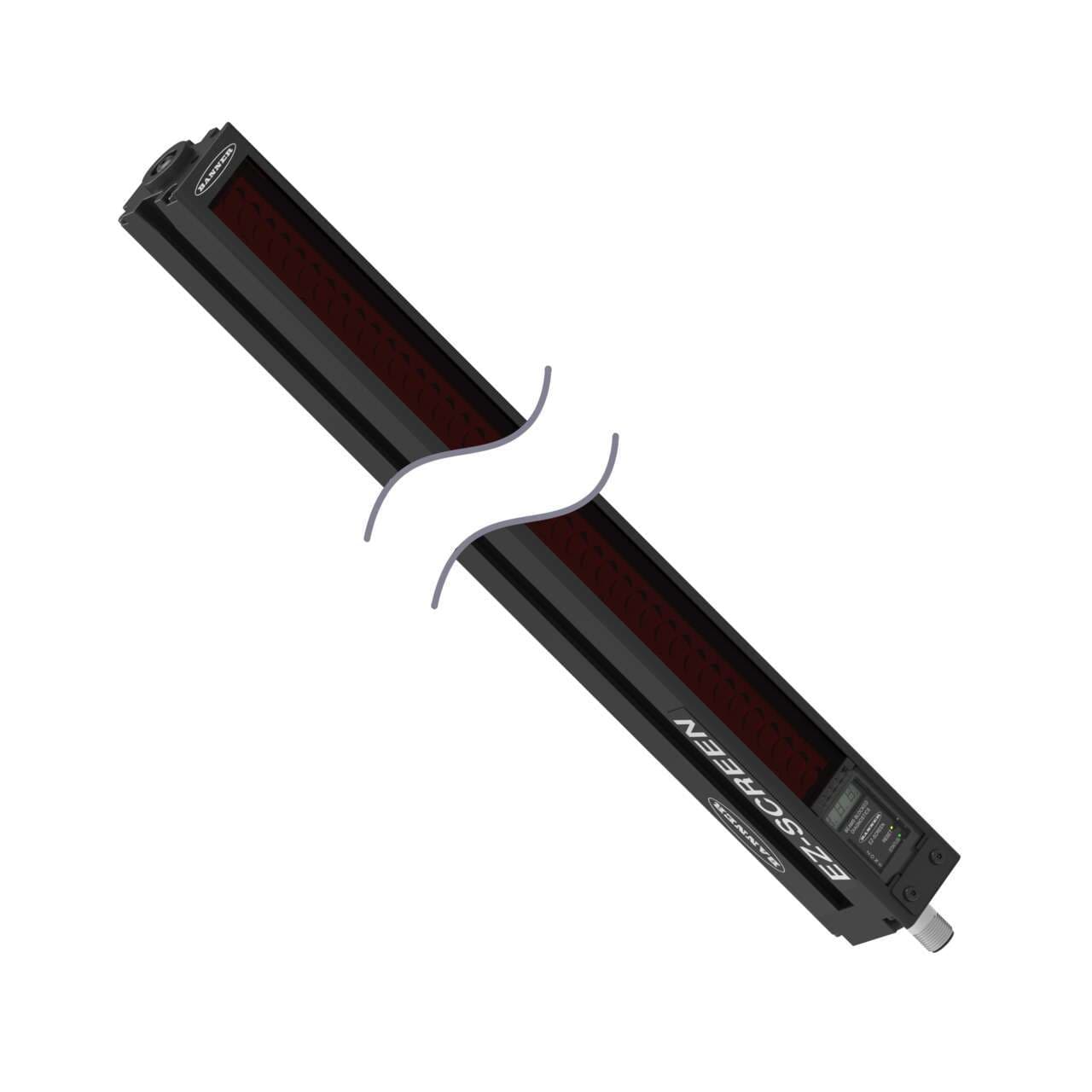

SLSRBR30-1050Q8 Banner Safety Light Curtains

Name: SLSRBR30-1050Q8
Brand: Banner

Banner SLSRBR30-1050Q8 EZ-SCREEN Remote Blanking Receiver; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1050 mm (41.3 in); Housing Length: 1120 mm (44.1 in); Connection: 8-pin M12 Connector

Part#:SLSRBR30-1050Q8

Manufacturer:Banner

Alt. Part#:15876

Product Lifecycle:Active

Get a quick Quote!

EZ-SCREEN Remote Blanking Receiver; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1050 mm (41.3 in); Housing Length: 1120 mm (44.1 in); Connection: 8-pin M12 Connector

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLSRBR30-1050Q8 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
3946.2504 g
Country Of Origin
US
Vibration
10-55 Hz at 0.35 mm
Feature: Integral Muting
No
Feature: ESD Safe
No
Feature: End-to-End Sensing
No
Test Input
No
OSSD Rating
24 V dc at 0.5 A each
Trip/Latch Output
Selectable
Supply Current
275 mA max.
Shock
10g at 16ms (6000 cycles)
Scan Code
Selectable
Electrical Safety Class
III
Housing Material
Aluminum; Zinc; Acrylic
Fault Output
No
Auxiliary Output
Yes
System Type
Receiver
Short Protection
Yes
Resolution (mm)
30
Reduced Resolution
Yes

SIL Rating

SIL3; CL3

PL Rating

Ple

Response Time

Recovery Time

25-152 / 81-495

Operating Distance (m)

0.1 - 18

Operating Temperature

0 to +55 deg. C; RH 95%

IP Rating

IP65

Number of Pins (Receiver/Emitter)

Operating Voltage

24 V dc +/- 15%

Housing Finish

Yellow Polyester

Fixed Blanking

Yes

Defined Area Height (mm)

1050

Connector Type

M12

Primary Housing Material

Aluminum

Safety Level

Type 4

low-profile

External Monitoring Device

1 or 2 Channel

Overall Length (mm)

1120

Dimensions WxD (mm)

36 x 45.2

Effective Aperture Angle

Type 4 Per IEC 61496-2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLSRBR30-1050Q8 Description

Banner Engineering SLSRBR30-1050Q8 is a safety light curtain from the SLS series designed for hand detection with a resolution of 30mm. This receiver unit features an aluminium housing with an acrylic lens and die-cast zinc end caps, ensuring durability. It comes pre-equipped with an 8-pin Euro-style M12 connector for easy installation. The protective height of the unit is 1050mm, housed in a yellow-colored casing, and it operates on a 24Vdc supply voltage. Designed to function within an ambient air temperature range of 0 to +55°C, it offers a degree of protection rated at IP65. The dimensions include a net width of 36mm, a net height of 1120mm, and a net depth of 46mm. It has a 30mm beam spacing/pitch and is capable of sensing distances from 10cm up to 18m. The unit features two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 75mA; sourcing/PNP transistor), one digital input (10Vdc-30Vdc) for EDM, and one digital input (10Vdc-30Vdc) for RESET, with a response time of 21ms / 0.021 s.
