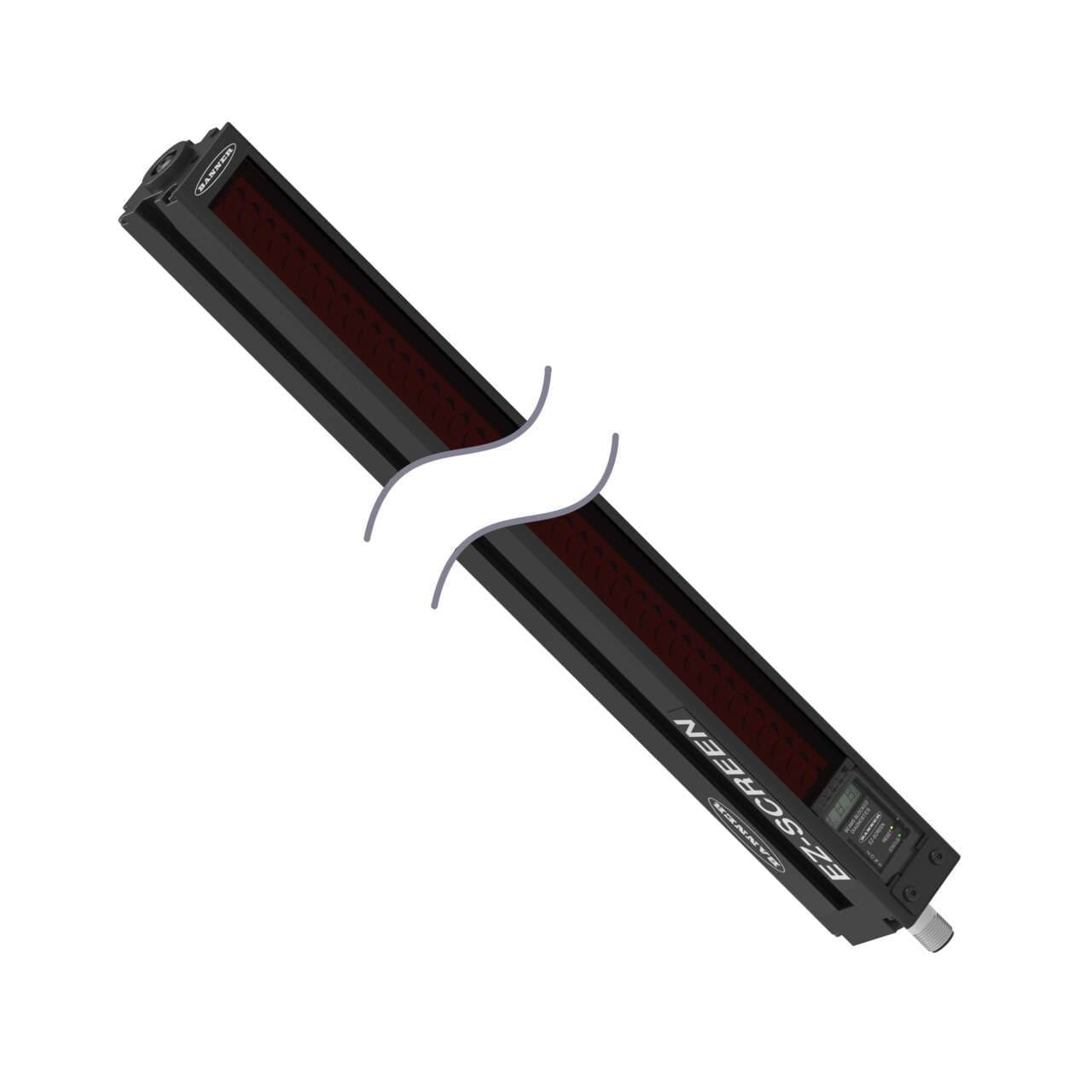

SLSR14-450Q8 Banner Safety Light Curtains

SLSR14-450Q8 on Powermatic Associates
Banner

Part#:SLSR14-450Q8

Manufacturer:Banner

Alt. Part#:71222

Product Lifecycle:Active

Get a quick Quote!

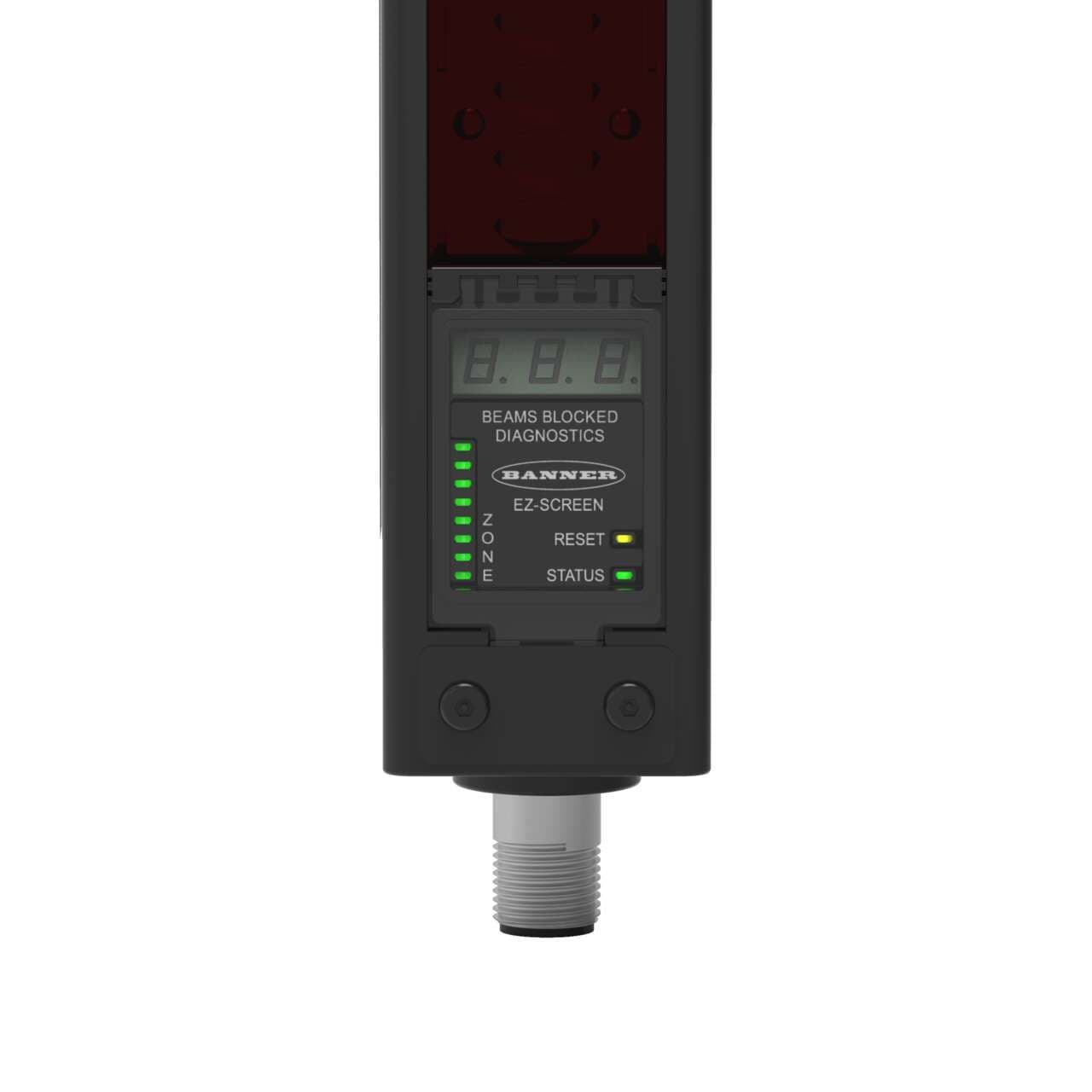

EZ-SCREEN Receiver; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 450 mm (17.7 in); Housing Length: 522 mm (20.6 in); Connection: 8-pin M12 Connector

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLSR14-450Q8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1260.98576 g
  • Country Of Origin
    MX
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Feature: End-to-End Sensing
    No
  • Supply Current
    275 mA max.
  • Test Input
    No
  • Trip/Latch Output
    Selectable
  • OSSD Rating
    24 V dc at 0.5 A each
  • System Type
    Receiver
  • Fault Output
    No
  • Auxiliary Output
    Yes
  • Vibration
    10-55 Hz at 0.35 mm
  • SIL Rating
    SIL3; CL3
  • Short Protection
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • Scan Code
    Selectable
  • Electrical Safety Class
    III
  • Reduced Resolution
    Yes
  • Resolution (mm)
    14
  • Response Time
    19
  • Recovery Time
    33-220 / 109-800
  • Housing Finish
    Yellow Polyester
  • PL Rating
    Ple
  • IP Rating
    IP65
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Number of Pins (Receiver/Emitter)
    8
  • Operating Distance (m)
    0.1 - 6
  • Operating Voltage
    24 V dc +/- 15%
  • Fixed Blanking
    Yes
  • Connector Type
    M12
  • Overall Length (mm)
    522
  • Safety Level
    Type 4
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Primary Housing Material
    Aluminum
  • External Monitoring Device
    1 or 2 Channel
  • Defined Area Height (mm)
    450
  • low-profile
    No
  • Dimensions WxD (mm)
    36 x 45.2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLSR14-450Q8 Description

Banner Engineering SLSR14-450Q8 is a safety light curtain designed for protective applications, part of the 14/30 series. This receiver unit features an aluminium housing with an acrylic lens and die-cast zinc end caps. It comes pre-equipped with an 8-pin Euro-style M12 connector for easy installation. The device offers a protective height of 450mm and is housed in a yellow casing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is suitable for various industrial environments. The SLSR14-450Q8 has a 14mm beam spacing/pitch and includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary functions. It also features one digital input (10Vdc-30Vdc) for EDM and one for RESET. The sensing distance ranges from 10cm to 6m, and it has a response time of 19ms. The resolution of 14mm allows for finger detection, ensuring precise safety measures.

Related documents SLSR14-450Q8 Specs

SLSR14-450Q8 112852.pdf
