SLSE30-1200P4NT Banner Safety Light Curtains

SLSE30-1200P4NT on Powermatic Associates
Banner

Part#:SLSE30-1200P4NT

Manufacturer:Banner

Alt. Part#:85422

Product Lifecycle:Active

Get a quick Quote!

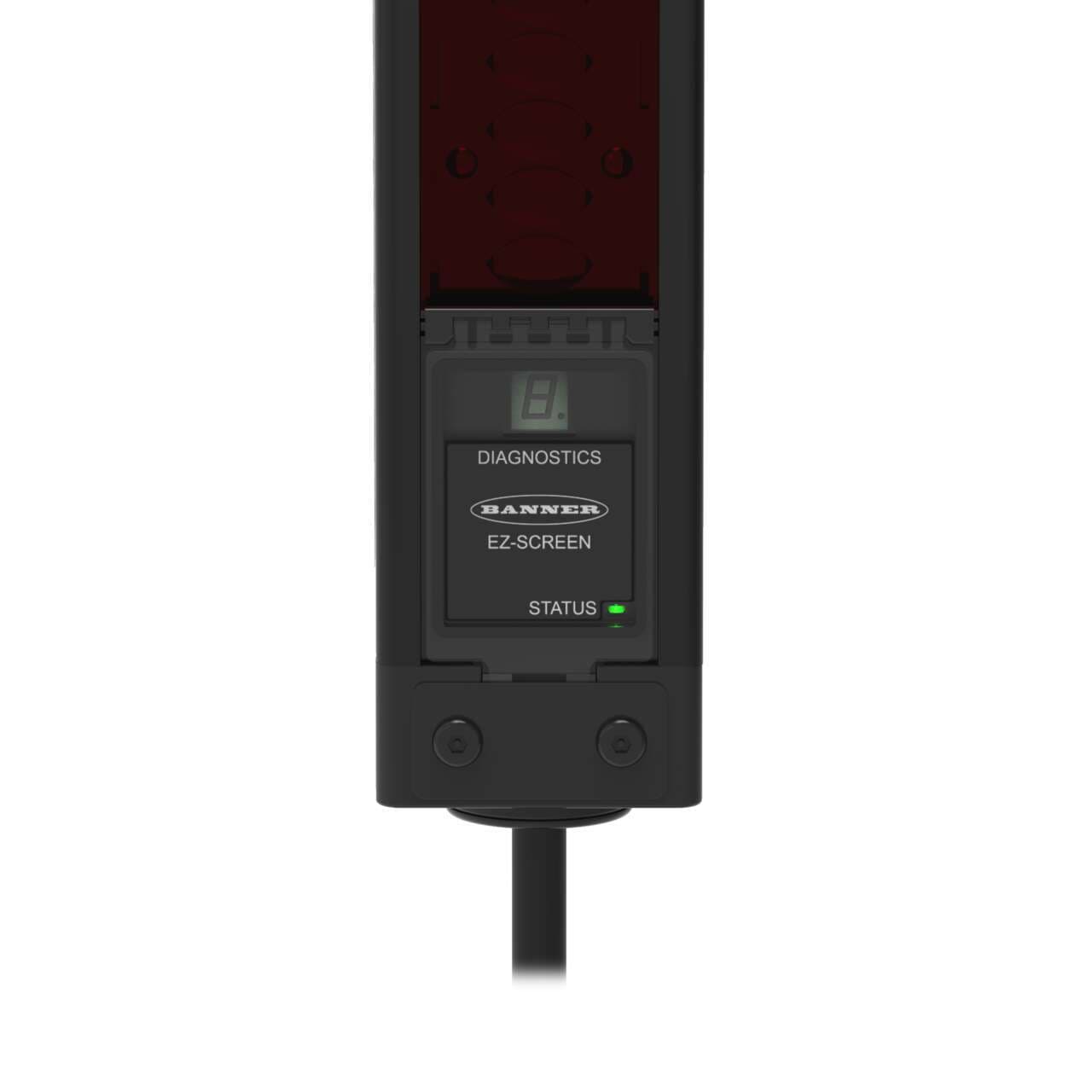

EZ-SCREEN Emitter; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1200 mm (47.2 in); Housing Length: 1270 mm (50.0 in); Connection: 4-pin M12 Pigtail Connector; No test Input

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLSE30-1200P4NT Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    4808.0752 g
  • Country Of Origin
    MX
  • Feature: End-to-End Sensing
    No
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Test Input
    No
  • Trip/Latch Output
    N/A
  • Supply Current
    100 mA max.
  • Housing Material
    Aluminum; Zinc; Acrylic
  • OSSD Rating
    N/A
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Emitter
  • Auxiliary Output
    No
  • Shock
    10g at 16ms (6000 cycles)
  • Short Protection
    Yes
  • Scan Code
    Selectable
  • Fault Output
    No
  • Electrical Safety Class
    III
  • SIL Rating
    SIL3; CL3
  • Reduced Resolution
    No
  • Resolution (mm)
    30
  • PL Rating
    Ple
  • Response Time
    23
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Distance (m)
    0.1 - 18
  • Operating Voltage
    24 V dc +/- 15%
  • Recovery Time
    25-152 / 81-495
  • Fixed Blanking
    No
  • Number of Pins (Receiver/Emitter)
    4
  • IP Rating
    IP65
  • Housing Finish
    Yellow Polyester
  • External Monitoring Device
    No
  • Overall Length (mm)
    1270
  • Defined Area Height (mm)
    1200
  • Primary Housing Material
    Aluminum
  • Dimensions WxD (mm)
    36 x 45.2
  • Safety Level
    Type 4
  • Connector Type
    M12 Pigtail (Yellow)
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • low-profile
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLSE30-1200P4NT Description

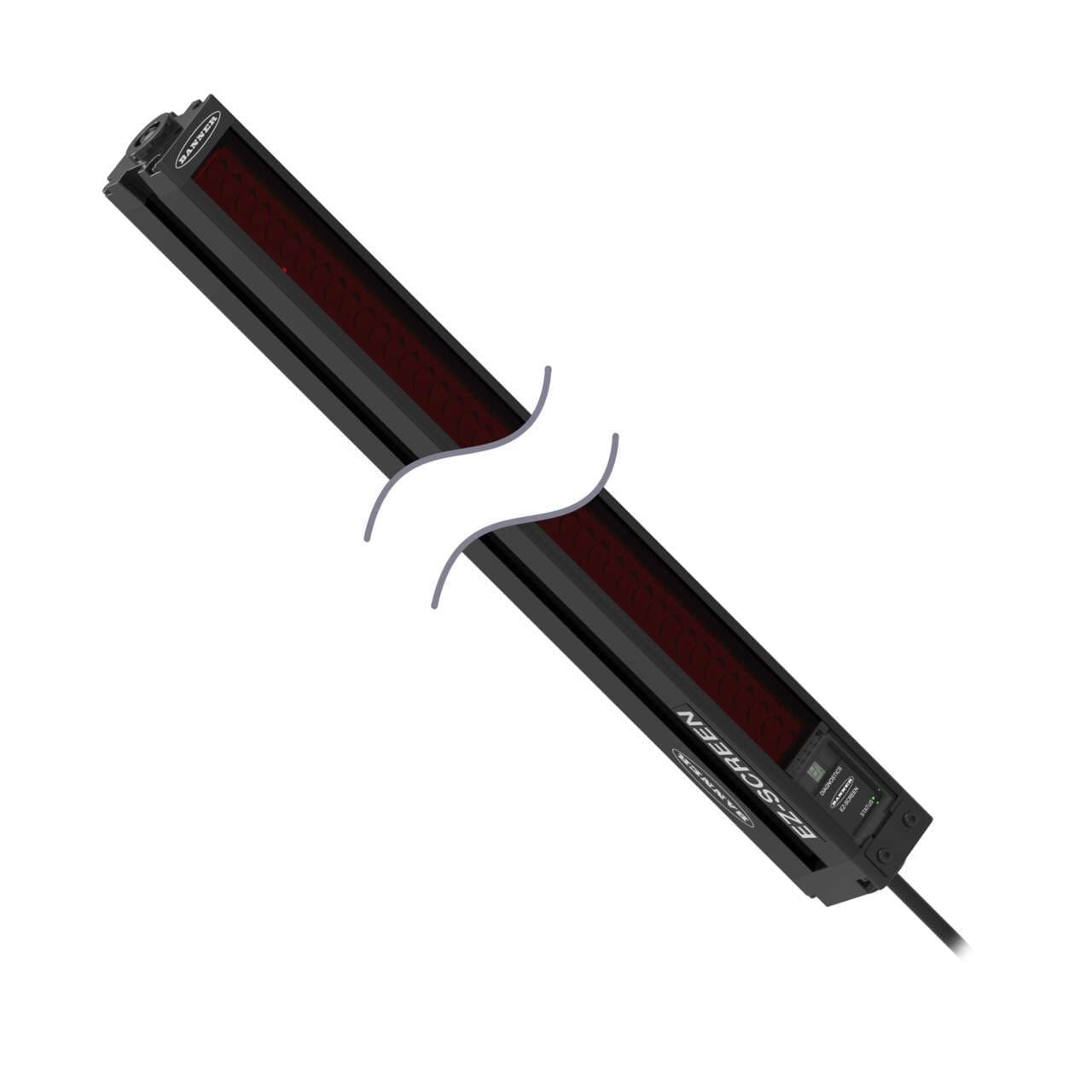

Banner Engineering SLSE30-1200P4NT is a safety light curtain designed for hand detection with a protective height of 1200mm and features a 30mm beam spacing/pitch. This part of the 14/30 series is constructed with an aluminium housing, acrylic lens, and die-cast zinc end caps, and it comes in a yellow housing. It is pre-wired with a 300mm pigtail that terminates with a 4-pin Euro-style M12 connector. The SLSE30-1200P4NT operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It offers a degree of protection rated at IP65 and has dimensions of 36mm in width, 1270mm in height, and 46mm in depth. The safety light curtain provides two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), has a sensing distance ranging from 10cm to 18m, and operates with an infrared light color at a wavelength of 850 nm. Its response time is 23ms / 0.023 s, and it is designed without a test or ground wire, specifically for safety applications requiring hand detection.

Related documents SLSE30-1200P4NT Specs

SLSE30-1200P4NT 112852.pdf

Manufacturer warranty

$1,975.00

Request a quote, and we will send availability within minutes.

Select Qty:

$1,975.00

$1,975.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
