SLLR14-1610-S Banner Safety Light Curtains

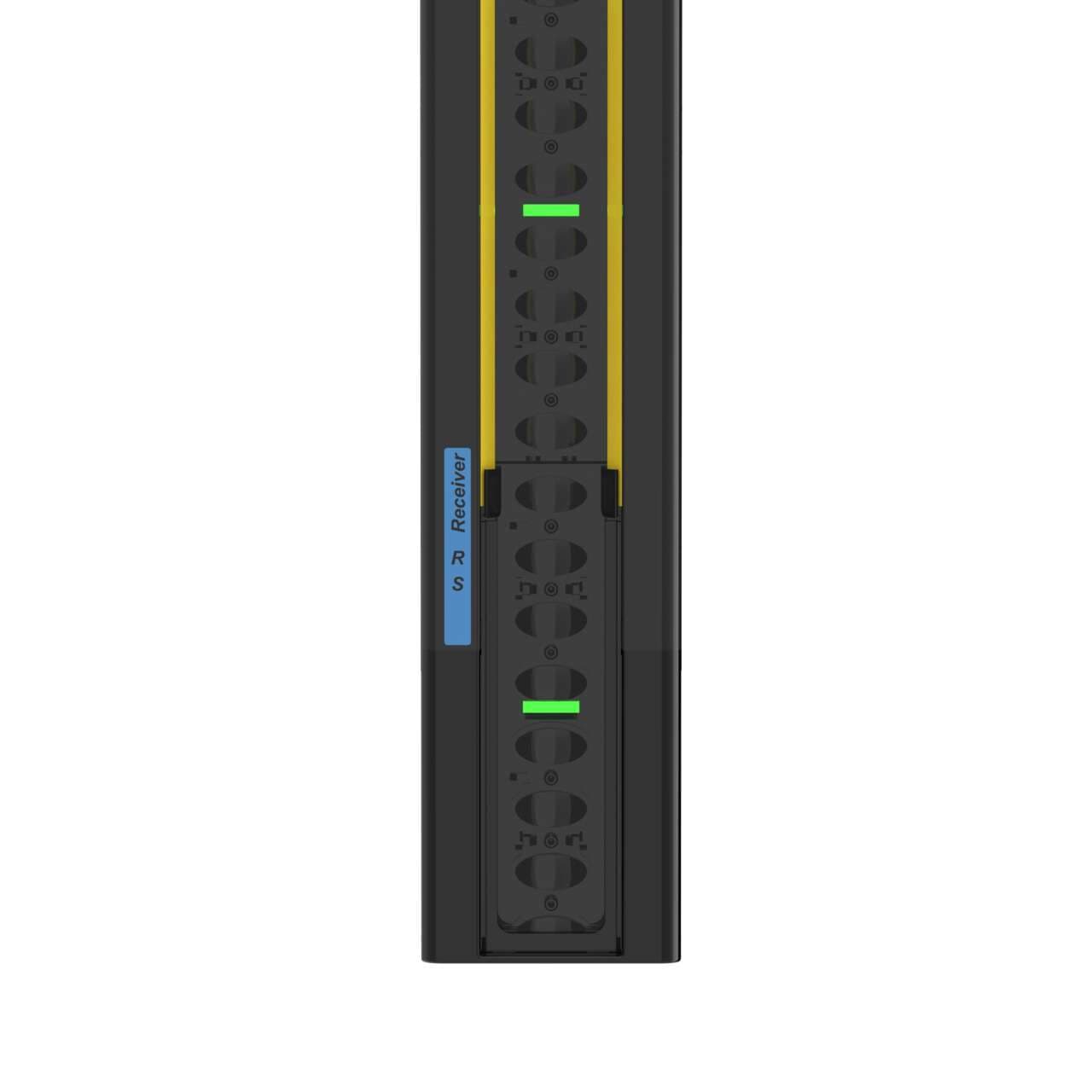

Banner SLLR14-1610-S EZ-SCREEN LS, Receiver; Resolution: 14 mm; Range: 12 m (40 ft); Defined Area: 1610 mm (63.4 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately
Banner

Part#:SLLR14-1610-S

Manufacturer:Banner

Alt. Part#:809144

Product Lifecycle:Active

Get a quick Quote!

EZ-SCREEN LS, Receiver; Resolution: 14 mm; Range: 12 m (40 ft); Defined Area: 1610 mm (63.4 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLLR14-1610-S Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    3553.89332 g
  • Country Of Origin
    MX
  • IP Rating
    IP65; IP67
  • Operating Distance (m)
    0.1 - 12
  • Fixed Blanking
    No
  • Dimensions WxD (mm)
    36 x 45
  • Housing Finish
    Yellow Polyester
  • External Monitoring Device
    1 Channel
  • Overall Length (mm)
    1612
  • Safety Level
    Type 4
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Receiver
  • Short Protection
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • Electrical Safety Class
    III
  • Scan Code
    Selectable
  • SIL Rating
    SIL3; CL3
  • Auxiliary Output
    No
  • Fault Output
    Yes
  • Reduced Resolution
    No
  • Resolution (mm)
    14
  • PL Rating
    Ple
  • Operating Voltage
    24 V dc +/- 15%
  • Operating Temperature
    -20 to +55 deg. C; RH 95%
  • Recovery Time
    191 / 646
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Feature: End-to-End Sensing
    Yes
  • OSSD Rating
    24 V dc at 0.5 A each
  • Supply Current
    110 mA Typical
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Test Input
    No
  • Trip/Latch Output
    Trip
  • Defined Area Height (mm)
    1610
  • Connector Type
    Removable Disconnect
  • Primary Housing Material
    Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLLR14-1610-S Description

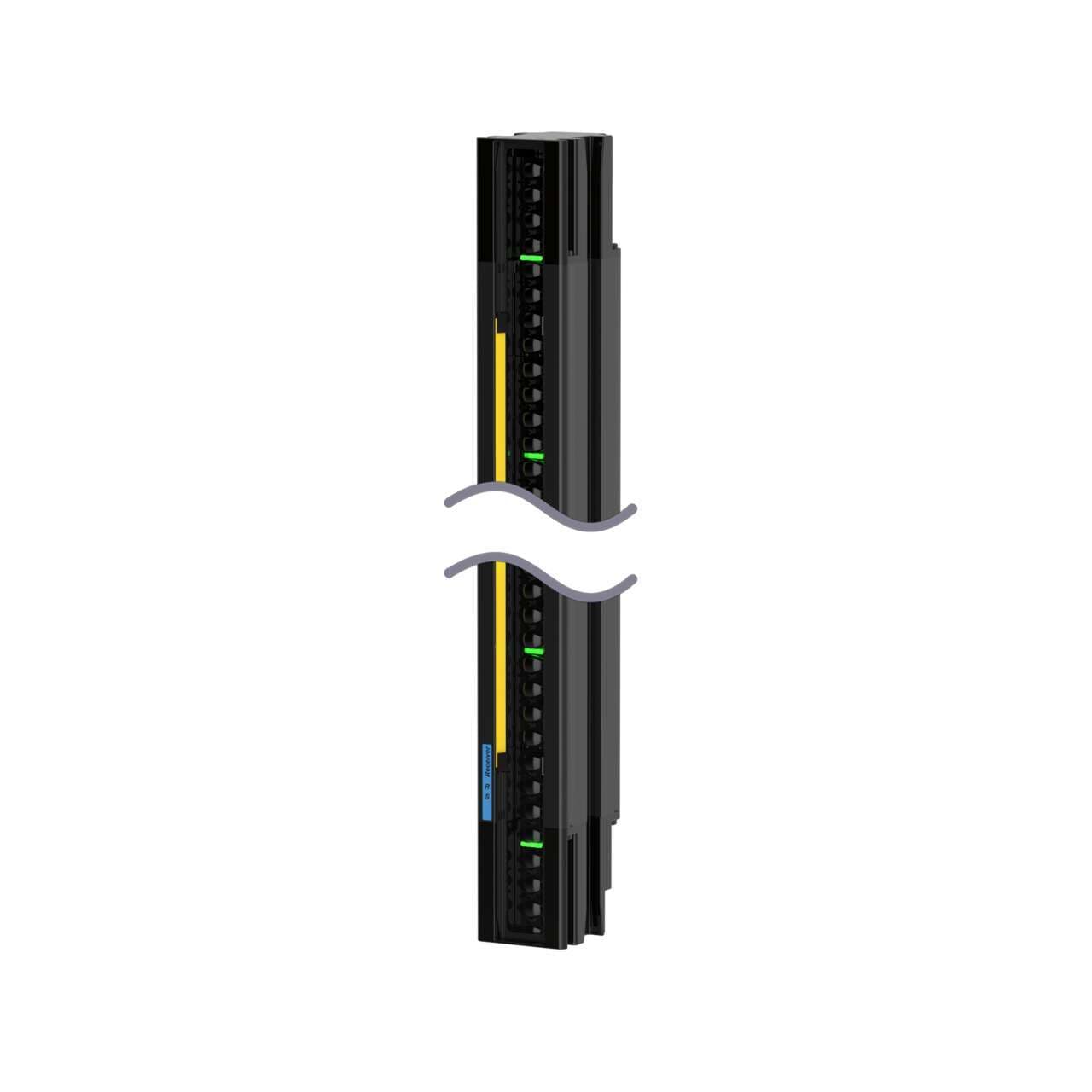

Banner Engineering SLLR14-1610-S is a safety light curtain from the LS-S series type 4 safety light curtains, designed specifically as a receiver unit. It features an aluminium housing with an acrylic lens and zinc end caps, ensuring durability. This model comes with an Integral Removable Disconnect (RD) connection type and is characterized by a protective height of 1610mm. The housing is colored yellow, and it operates on a 24Vdc supply voltage. It is designed to function within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP65 and IP67, making it suitable for various industrial environments. The net dimensions are 36mm in width, 1612mm in height, and 45mm in depth. It has a 14mm beam spacing/pitch for finger detection resolution and offers a sensing distance between 10cm and 12m. The light curtain emits infrared (IR) light with a wavelength of 850 nm and has a response time of 43.8ms. It includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and 1 x digital output (24Vdc; 100mA; sourcing/PNP transistor) for CSSI status output.
