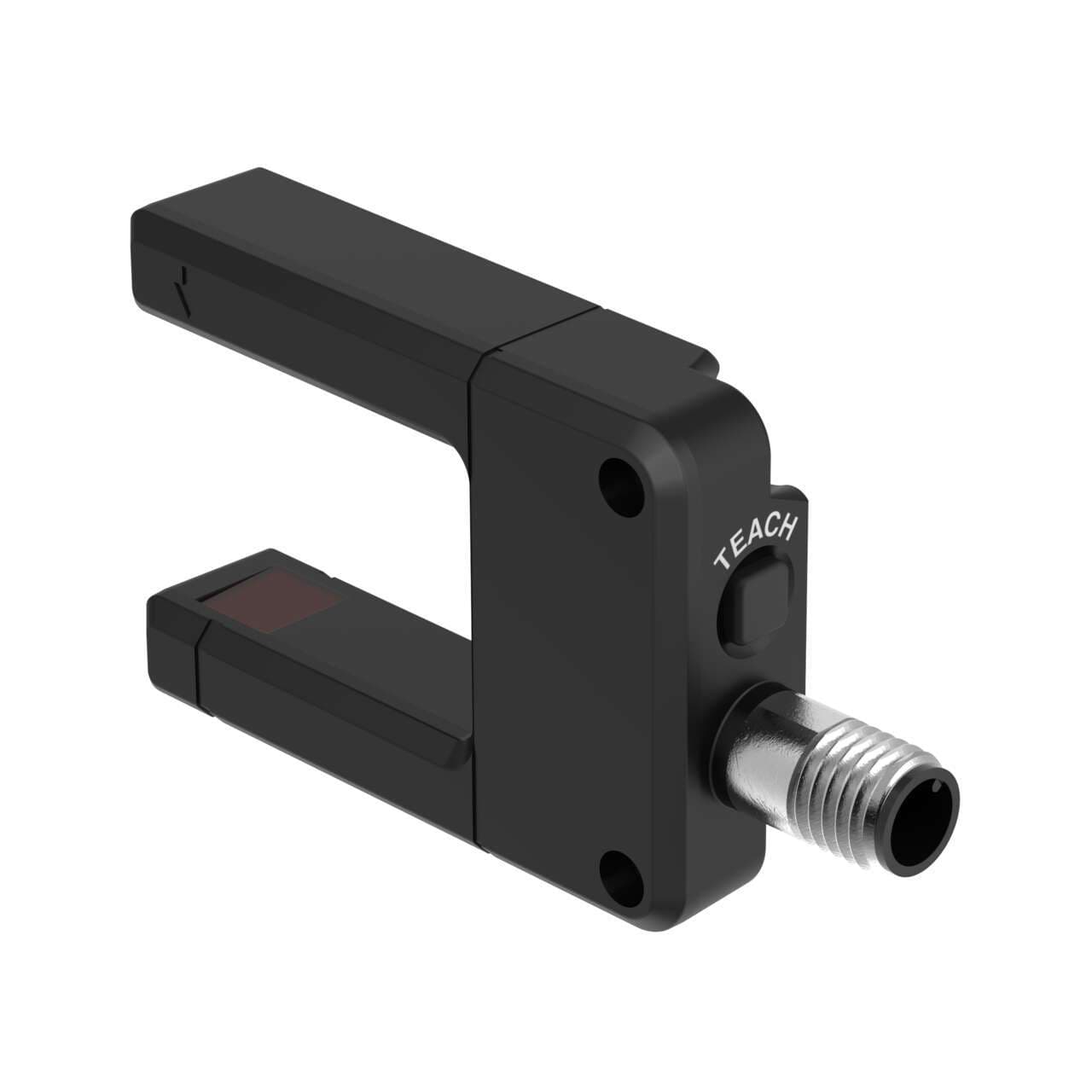

SLE30B6VQ Banner Retroreflective Sensors

Name: SLE30B6VQ
Brand: Banner

Banner SLE30B6VQ SLE30 EXPERT Series: Teach Mode Slot Sensor; Slot width: 30 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; M12 Integral QD

Part#:SLE30B6VQ

Manufacturer:Banner

Alt. Part#:55476

Product Lifecycle:Active

Get a quick Quote!

SLE30 EXPERT Series: Teach Mode Slot Sensor; Slot width: 30 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Retroreflective Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLE30B6VQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
78.017824 g
Country Of Origin
CN
Minimum Object Detection [mm]
1.8
Max Op. Relative Humidity (%)
90% @ 50°C
NEMA Rating
NEMA 6
IP Rating
IP67
Max Op. Temperature (°C)
70
Indicator
LEDs
Operation
Light/Dark Operate
Delay at Power-up (ms)
1000
Min Op. Temperature (°C)
-20
Special Feature: Remote Teach
Yes
Lens Material
Acrylic
Number of Pins
5
Repeatability (µs)
100
Adjustments
Teach Button
Output response time (ms)
0.5
Power Supply/Supply Voltage
10-30 V dc
Slot Overall Depth (mm)
72
Outputs
Bipolar (NPN & PNP)

Power

Connection

Integral QD

Max Sensing Range (mm)

Housing Style

Slot

Quick Disconnect Type

M12 (Euro)

Primary Housing Material

Thermoplastic

Sensing Mode (Detailed)

Emitter/Receiver Pair

Slot Depth/Array Length (mm)

Minimum Object Detection (mm)

1.8

Primary brand

Banner Engineering

Connection type

Pre-equipped with 5-pin Euro-style M12 connector

Degree of protection

IP67 NEMA 6

Functions

Programmable photo-electric slot / optical fork sensor green LED (power ON) yellow LED (output state) TEACH mode

Material

thermoplastic housing Acrylic lns.

Order code / Manufacturer SKU

55476

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Digital outputs

1 x digital output (PNP/NPN transistor)

Net Width (mm)

(passageway) 30 mm

Sub-range name

SLE10 Expert series

Operating mode

Light-ON Dark-ON

Ambient air temperature for operation

-20...+70 °C

Main function

Sensor (Photo-electric)

Shape

Slot

Response time

0.5ms / 0.0005 s

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLE30B6VQ Description

Banner Engineering SLE30B6VQ is a programmable photo-electric slot/optical fork sensor from the SLE30 Expert series. This sensor features a thermoplastic housing with an acrylic lens and is designed with TEACH mode for versatile application. It comes pre-equipped with a 5-pin Euro-style M12 connector for easy integration. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc, and can function within an ambient air temperature range of -20 to +70°C. It offers a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. The slot-shaped sensor has a net width of 30 mm for the passageway, and it features a single digital output (PNP/NPN transistor). With a sensing distance of 30mm and a quick response time of 0.5ms, it operates efficiently in both Light-ON and Dark-ON modes. The sensor utilizes visible red light with a wavelength of 680 nm for detection.
