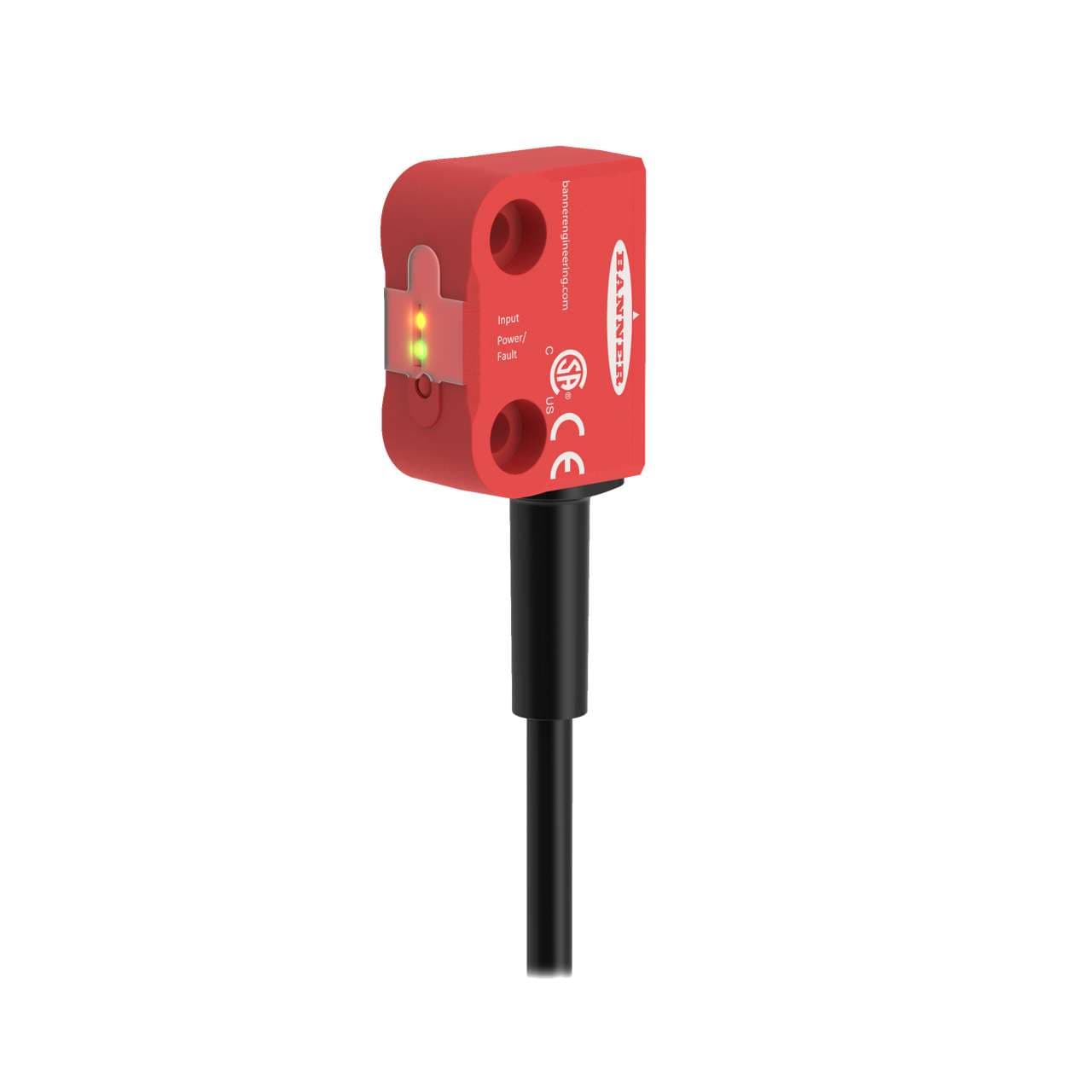

SI-RFST-UP8 Banner Safety Switches

SI-RFST-UP8 on Powermatic Associates
Banner

Part#:SI-RFST-UP8

Manufacturer:Banner

Category:Safety Switches

Alt. Part#:806390

Product Lifecycle:Active

Get a quick Quote!

SI-RF Safety Switch; Coding: Unique; Diagnostics: Series PNP; Reset: Automatic; Connector: 250 mm 8-pin M12 Pigtail QD; Used With: SI-RF-A

About the manufacturer: Banner is one of the manufacturers that offers Safety Switches that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SI-RFST-UP8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    113.398 g
  • Country Of Origin
    HU
  • Operating Voltage
    24 V dc +25%, -20%
  • Coding Level/Tamper Resistance
    Unique
  • Trip Latch Output
    Trip
  • Response Time (ms)
    100
  • Rated Operating Current
    50 mA + output loads
  • Auxilliary Output
    Yes
  • H Typical (mm)
    2
  • Number of Pins
    8
  • Sao Minimum (mm)
    10
  • In-Series Diagnostics
    No
  • Sn Typical
    13
  • Sar Maximum (mm)
    25
  • Feature: Lockable
    No
  • OSSD Rating
    24 VDC @ 0.1 A each
  • Connection Type
    M12 Pigtail
  • Feature: Cascade
    Yes
  • Output Type
    OSSD
  • Monitor (Locked) Contacts
    N/A
  • SIL Rating
    SIL CL 3
  • SISTEMA
    PFHd of 1 x 10-9
  • Actuation
    Standard
  • Actuator (Safety) Contacts
    2 NC
  • PL Rating
    PL e
  • Safety Category
    Cat 4
  • IP Rating
    IP69
  • Relative Humidity
    95% @ 50 °C
  • Device Type
    RFID - Sensor
  • Primary Housing Material
    Thermoplastic
  • Switch Style
    Non-Contact
  • Max Op. Temperature (°C)
    70
  • Min Op. Temperature (°C)
    -25
  • Device Shape
    Rectangular
  • Device Size
    36 x 26 x 15

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SI-RFST-UP8 Description

Banner Engineering SI-RFST-UP8 is a non-contact RFID safety door/hood/gate switch from the SI-RF series, featuring a unique coding switch with PNP diagnostics and auto reset. It is housed in thermoplastic material and comes pre-wired with a 250mm pigtail terminated with an 8-pin Euro-style M12 connector. This part has 2NC contacts and operates on a 24Vdc supply voltage. It is designed to work within an ambient air temperature range of -25 to +70°C and offers a degree of protection rated at IP69K. The switch has a rectangular shape with dimensions of 15mm in width, 32mm in height, and 26mm in depth. Its sensing distance ranges from 10mm (Sao) to 25mm (Sar), and it includes 0 NO auxiliary contacts and 2 NC auxiliary contacts.

Related documents SI-RFST-UP8 Specs

SI-RFST-UP8 208885.pdf
