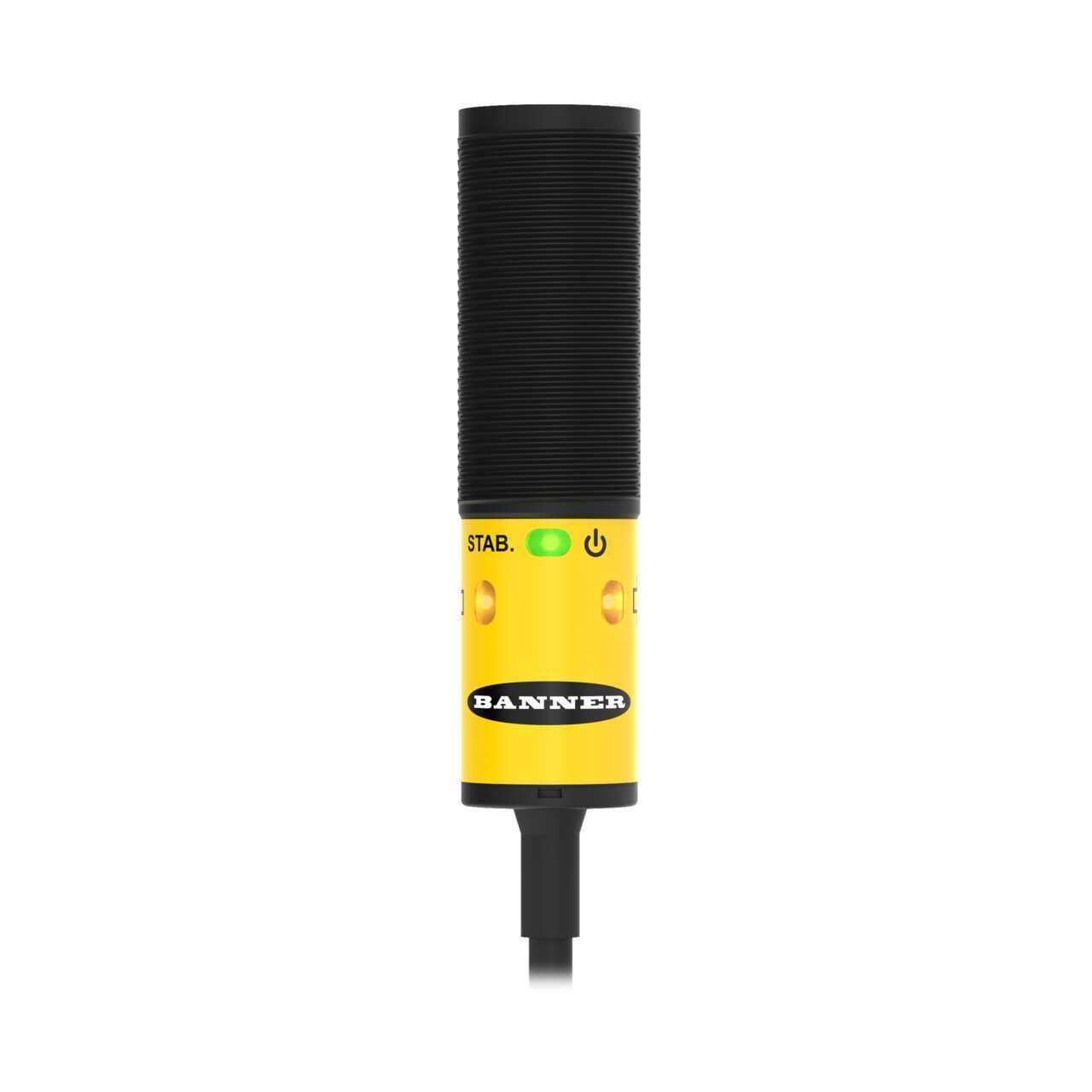

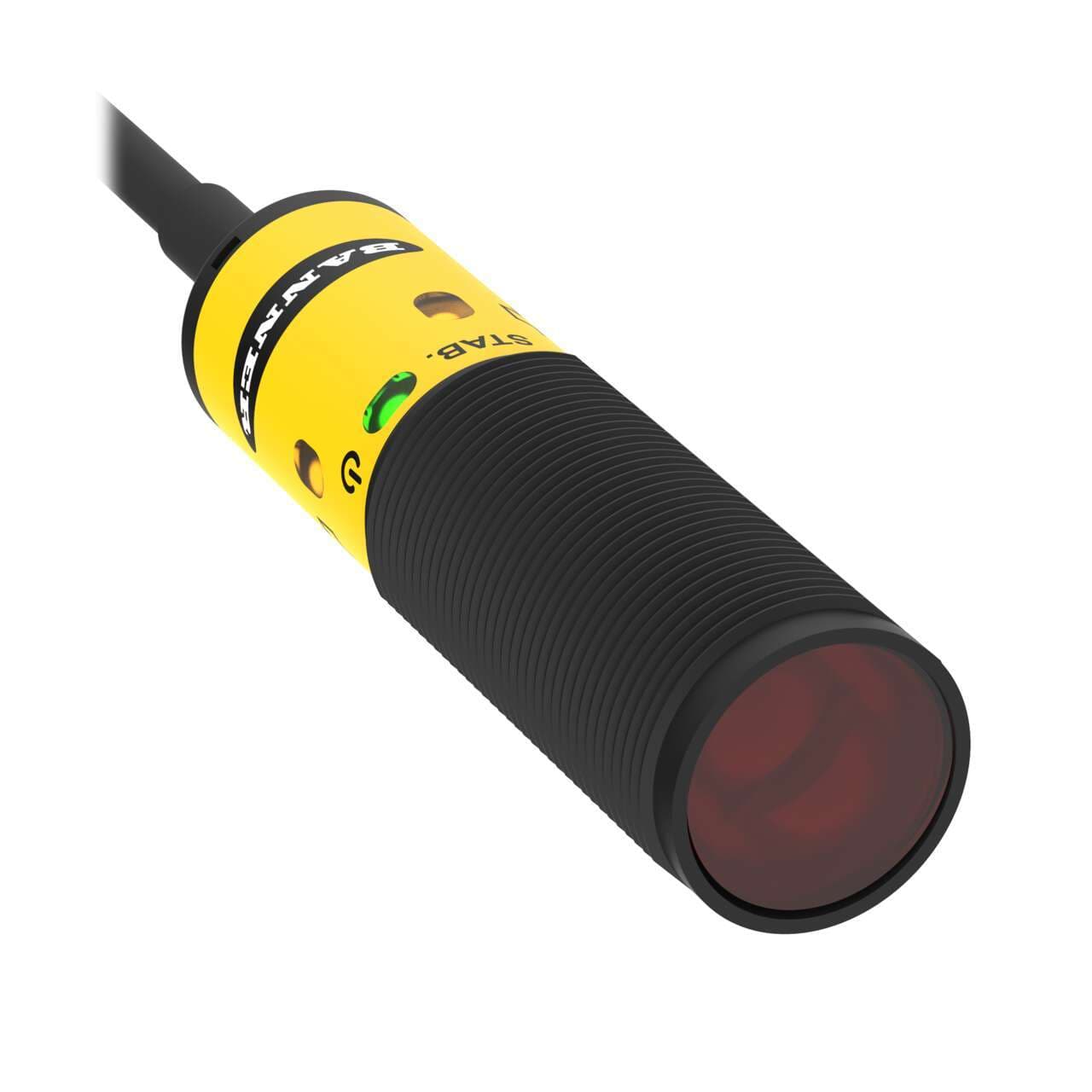

S18-2VPFF50-Q5 Banner Optical Sensors
Part#:S18-2VPFF50-Q5
Alt. Part#:91077
Manufacturer:Banner
Category:Optical Sensors
Product Lifecycle:Active
Product description
S18-2 Series: Fixed Field; Range: 50 mm; Input: 10-30 V dc; Outputs: Complementary PNP; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
Product Details
- Weight 36.28736 g
- Country Of Origin CN
- Functions Fixed-field photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting)
- Main function Sensor (Photo-electric)
- Design background suppression system
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Cylindrical threaded/barrel
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Ambient air temperature for operation -40...+70 °C
- Sub-range name S18-2 series
- Wavelength 624 nm
- Digital outputs 1 x digital output (PNP transistor)
- Order code / Manufacturer SKU 91077
- Light Color Visible red
- Operating mode Light-ON Dark-ON
- Degree of protection IP67
- Material thermoplastic housing Acrylic lns. PVC (connector)
- Equivalent to S182VPFF50Q5
- Product series / family name M18 barrel series
- Sensing distance 50mm
- Thread size M18
- Response time 1.5ms / 0.0015 s
- Compliant with standard(s) CE
- Primary Housing Material Thermoplastic
- Output response time (ms) 1.5
- Repeatability (µs) 100
- Indicator LEDs
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Proximity
- Connection Pigtail QD
- Special Feature: Remote Teach No
- Opposed Mode Emitter/Receiver N/A
- Small Visible Spot LED
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- DeviceNet No
- Housing Style Barrel
- Min Op. Temp. (°C) -40
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 18
- IO Link No
- Input/Output Discrete
- Special Feature: Water Detection No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Sensing Beam Visible Red LED
- Outputs PNP
- Sensing Beam Wavelength 624
- Adjustments N/A
- Max Sensing Distance (mm) 50
- Operation Light/Dark Operate
- Number of Pins 4
- Feature: Ecolab Certified Yes
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Quick Disconnect Type M12 (Euro)
- NEMA Rating N/A
- Feature: Encapsulated No
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18-2VPFF50-Q5 on Powermatic Associates is $104.00. Order now.
About the product
Banner Engineering S18-2VPFF50-Q5 is a fixed-field photo-electric sensor from the S18-2 series, designed with a background suppression system. This sensor features a thermoplastic housing with an acrylic lens and a PVC connector, ensuring durability and clear signal transmission. It is pre-wired with a 6-inch (150mm) pigtail that terminates with a 4-pin Euro-style M12 connector for easy installation. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. It offers a degree of protection rated at IP67, making it suitable for challenging environments. The S18-2VPFF50-Q5 has an M18 cylindrical threaded/barrel shape for straightforward mounting and includes 1 x digital output (PNP transistor) for reliable signal processing. It provides a sensing distance of 50mm and features a visible red light with a wavelength of 624 nm for precise detection. The sensor's response time is quick at 1.5ms (0.0015 s), and it supports both Light-ON and Dark-ON operating modes, enhancing its versatility in various applications.
