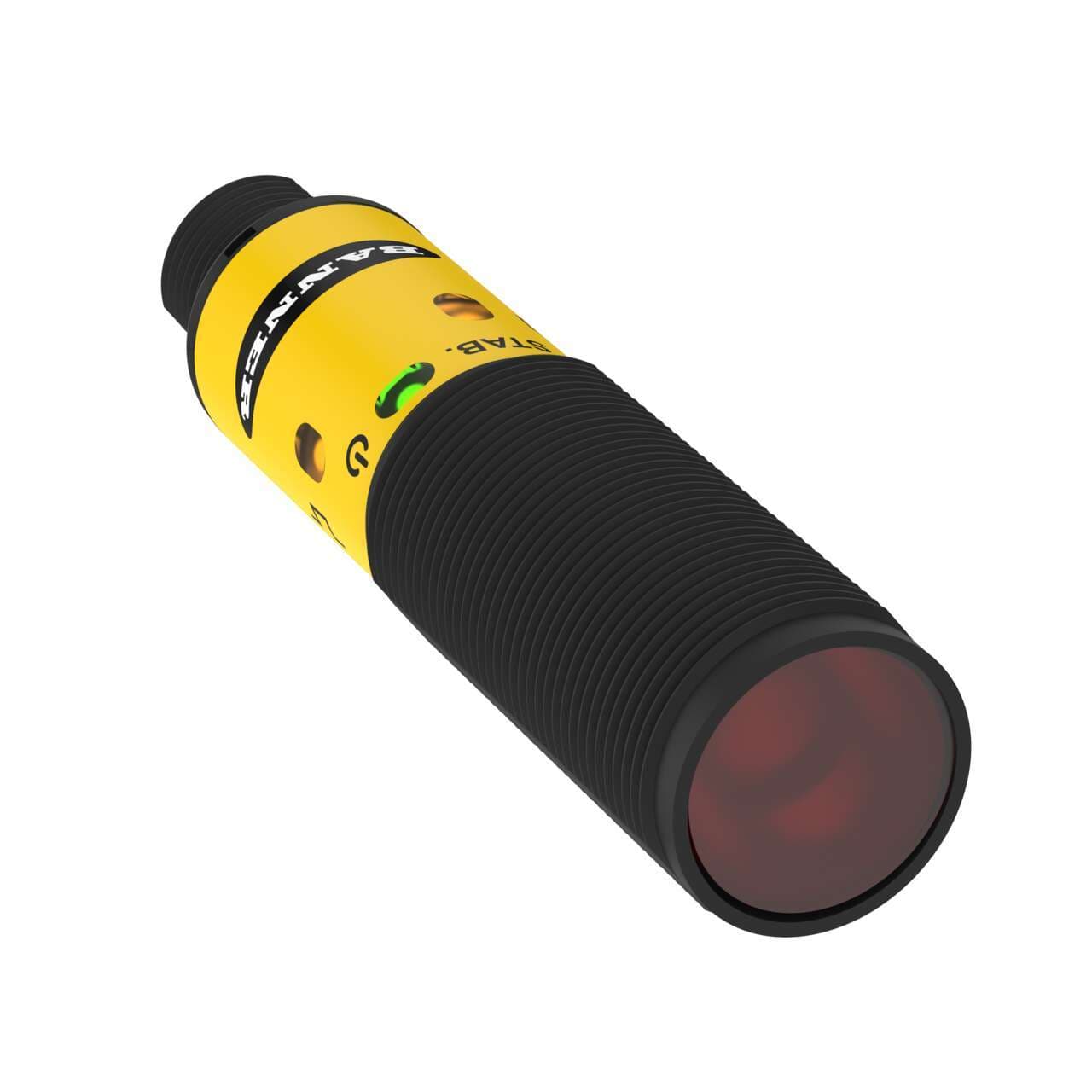

S18-2VNFF100-Q8 Banner Optical Sensors
Part#:S18-2VNFF100-Q8
Alt. Part#:91093
Manufacturer:Banner
Category:Optical Sensors
Product Lifecycle:Active
Product description
S18-2 Series: Fixed Field; Range: 100 mm; Input: 10-30 V dc; Outputs: Complementary NPN; 4-pin M12 Integral QD
Product Details
- Weight 22.6796 g
- Country Of Origin CN
- Product series / family name M18 barrel series
- Functions Fixed-field photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting)
- Shape Cylindrical threaded/barrel
- Thread size M18
- Material thermoplastic housing Acrylic lns.
- Equivalent to S182VNFF100Q8
- Main function Sensor (Photo-electric)
- Light Color Visible red
- Sub-range name S18-2 series
- Design background suppression system
- Wavelength 624 nm
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Ambient air temperature for operation -40...+70 °C
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Digital outputs 1 x digital output (NPN transistor)
- Degree of protection IP67
- Sensing distance 100mm
- Operating mode Light-ON Dark-ON
- Order code / Manufacturer SKU 91093
- Response time 1.5ms / 0.0015 s
- Compliant with standard(s) CE
- Housing Style Barrel
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Sensing Mode (General) Proximity
- Output response time (ms) 1.5
- Delay at Power-up (ms) 100
- Indicator LEDs
- Feature: Audible No
- Small Visible Spot LED
- Operation Light/Dark Operate
- IP Rating IP67
- Feature: Encapsulated No
- Max Sensing Distance (mm) 100
- Quick Disconnect Type M12 (Euro)
- Sensing Beam Wavelength 624
- Adjustments N/A
- Input/Output Discrete
- Min Op. Temp. (°C) -40
- Repeatability (µs) 100
- Opposed Mode Emitter/Receiver N/A
- Power DC
- Outputs NPN
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- IO Link No
- Primary Housing Material Thermoplastic
- Connection Integral QD
- Number of Pins 4
- Feature: Ecolab Certified Yes
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Hazardous Area No
- Sensing Beam Visible Red LED
- Max Op. Temp. (°C) 70
- NEMA Rating N/A
- Feature: Timing (Hold/Delay) No
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18-2VNFF100-Q8 on Powermatic Associates is $96.00. Order now.
About the product
Banner Engineering S18-2VNFF100-Q8 is a fixed-field photo-electric sensor from the S18-2 series, designed with a background suppression system. This sensor features a thermoplastic housing and an acrylic lens, ensuring durability and clarity. It comes pre-equipped with a 4-pin Euro-style M12 connector for easy installation. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. It boasts an IP67 degree of protection, making it suitable for challenging environments. The S18-2VNFF100-Q8 has a cylindrical threaded/barrel shape with an M18 thread size, and it includes 1 x digital output (NPN transistor) for signaling. It offers a sensing distance of 100mm and uses visible red light with a wavelength of 624 nm for detection. The sensor's response time is quick at 1.5ms / 0.0015 s, and it supports both Light-ON and Dark-ON operating modes, providing flexibility in application.
