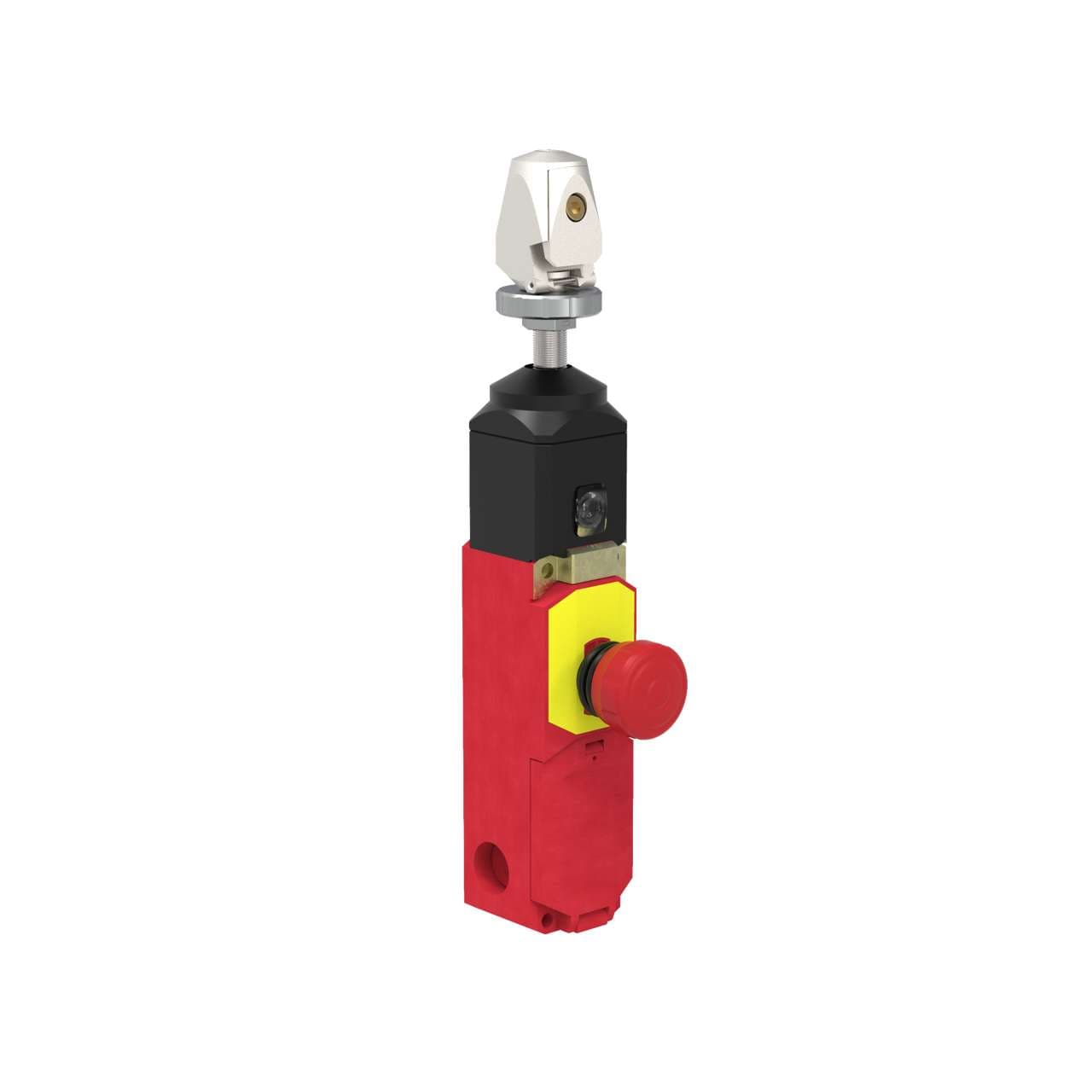

RP-LS42F-25LE Banner Safety Switches
Part#:RP-LS42F-25LE
Alt. Part#:14332
Manufacturer:Banner
Category:Safety Switches
Product Lifecycle:Active
Product description
Heavy Duty Plastic Emergency Stop Rope Pull; Turnbuckle Attachment, 25 m Max Range, Integral E-Stop Button; Latch Actuation, 2 NC Safety Contacts; 2 NO Aux Contact
Product Details
- Weight 771.1064 g
- Country Of Origin DE
- Min Operating Temperature ( °C) -25
- Contact Quantity 2 NO, 2 NC
- Dimensions (HxWxD mm ) 317 x 42.5 x 45
- Button Diameter (mm) 33
- Max Operating Temperature ( °C) 70
- Actuator/Button Material Zinc Alloy Die-Cast
- Contact Rating 3 A @ 240 V ac/10 A @ 24 V dc
- Max Cable Length (m) 25
- Primary Housing Material Thermoplastic
- Feature: Lockable No
- Actuation Latch
- Device Type Rope Pull w/E-Stop Button
- Housing Style Limit Switch
- Attachment Tunbuckle
- IP Rating IP67
- Button Shroud No
- Connection Type Wiring Chamber
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RP-LS42F-25LE on Powermatic Associates is $390.00. Order now.
About the product
Banner Engineering RP-LS42F-25LE is a heavy-duty rope-pull/grab-wire emergency stop switch designed for safety applications. It features a thermoplastic housing with a die-cast zinc alloy actuator and an emergency stop button with a turnbuckle design. This safety switch offers a wiring chamber connection and can accommodate a maximum rope span of 25 meters. It is equipped with 2NC (safety) and 2NO (auxiliary) contacts, supporting a rated current of 10A at 24Vac (AC-15), 6A at 24Vdc (DC-13), 10A at 110Vac (AC-15; 40-60Hz), 1A at 110Vdc (DC-13), 6A at 230Vac (AC-15; 40-60Hz), and 0.4A at 230Vdc (DC-13). The RP-LS42F-25LE operates within an ambient air temperature range of -25 to +70��C and offers a degree of protection of IP67. Its net width is 43 mm, and it is rated for a voltage of up to 600Vac.
