R58ACR2Q
Banner
Product Lifecycle: Active
Banner Engineering R58ACR2Q is a registration mark sensor from the R58A series, designed for precise detection tasks with its convergent mode perpendicular sensing image and potentiometer adjustment for fine-tuning. This sensor operates within an ambient air temperature range of -10 to +50°C and is housed in a durable die-cast Zinc alloy with an Acrylic lens, ensuring its suitability for various industrial environments. It features a pre-wired 6" / 150mm pigtail terminated with a 5-pin Euro-style M12 connector for easy installation. The R58ACR2Q offers a sensing distance of 10mm and utilizes visible red light with a wavelength of 636 nm to perform its registration mark sensing function. It supports both Light-ON and Dark-ON operating modes for versatile application use. The sensor is equipped with a single digital output (PNP/NPN transistor) and boasts a rapid response time of 0.05ms / 0.00005 s. It operates on a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and is protected to a degree of IP67, making it resistant to dust and water ingress.

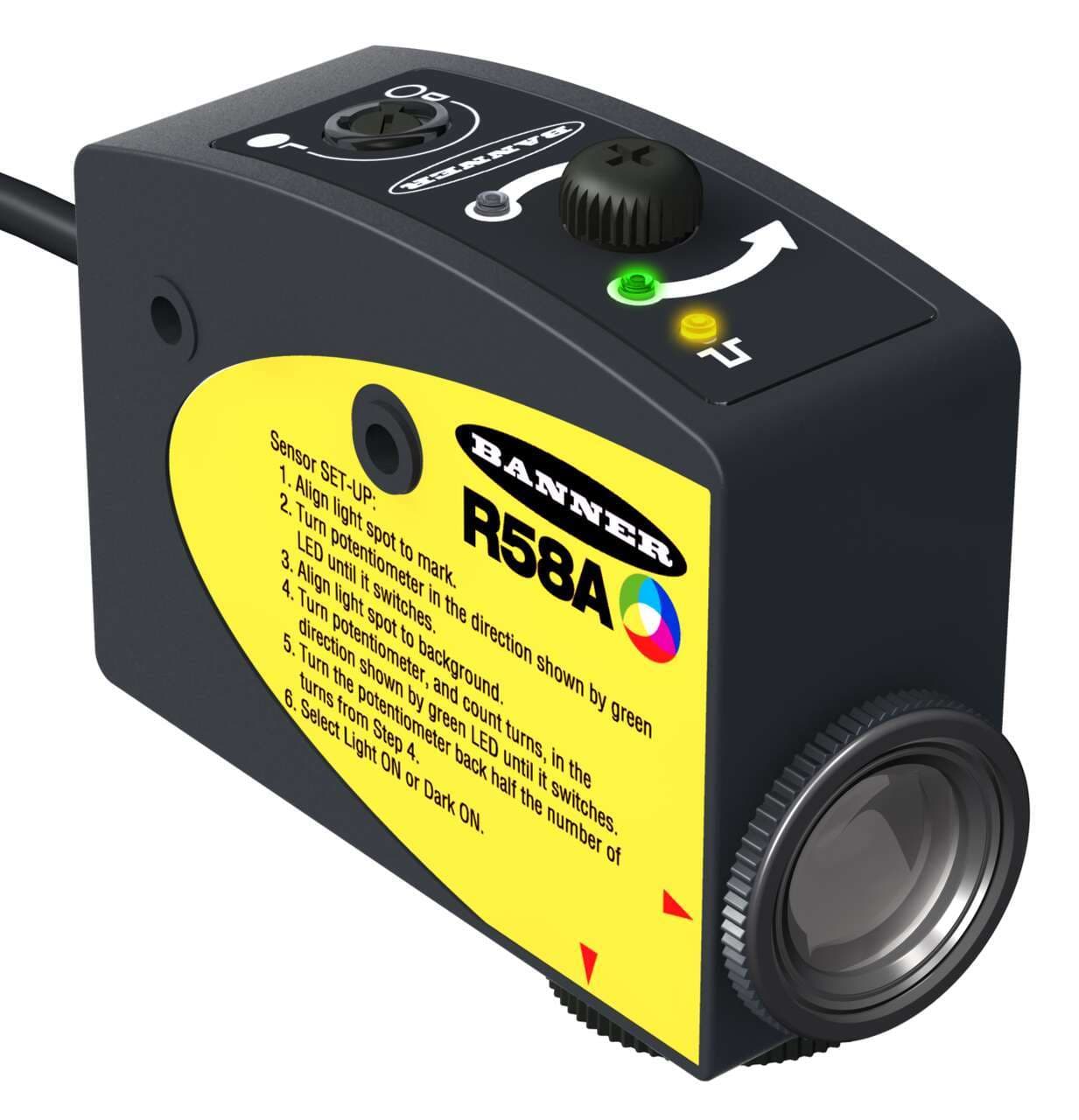

![R58ACR2Q](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Fffdaef9e-9191-4d71-b936-736f8d43ac63.jpeg&w=3840&q=75)
Banner Engineering R58ACR2Q is a registration mark sensor from the R58A series, designed for precise detection tasks with its convergent mode perpendicular sensing image and potentiometer adjustment for fine-tuning. This sensor operates within an ambient air temperature range of -10 to +50°C and is housed in a durable die-cast Zinc alloy with an Acrylic lens, ensuring its suitability for various industrial environments. It features a pre-wired 6" / 150mm pigtail terminated with a 5-pin Euro-style M12 connector for easy installation. The R58ACR2Q offers a sensing distance of 10mm and utilizes visible red light with a wavelength of 636 nm to perform its registration mark sensing function. It supports both Light-ON and Dark-ON operating modes for versatile application use. The sensor is equipped with a single digital output (PNP/NPN transistor) and boasts a rapid response time of 0.05ms / 0.00005 s. It operates on a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and is protected to a degree of IP67, making it resistant to dust and water ingress.
- IO LinkNo
- Application: ColorNo
- Feature: Timing (Hold/Delay)No
- Application: Registration MarkYes
- Application: LuminescenceNo
- Beam Spot Size1.2 x 3.8 mm at 10 mm
- Delay at Power-up (ms)100
- Special Feature: Analog OutputNo
- Max Op. Relative Humidity (%)90% @ 50°C
- Min Op. Temperature (°C)-10
- Max Op. Temperature (°C)50
- Lens MaterialAcrylic
- NEMA RatingN/A
- IP RatingIP67
- Output response time (ms)0.05
- Repeatability (µs)15
- OperationLight/Dark Operate
- IndicatorLEDs
- LED OrientationPerpendicular to sensor length
- Sensing Beam Wavelength636
- Number of Pins4
- Power Supply/Supply Voltage10-30 V dc
- Max Sensing Range (mm)10
- Special Feature: Remote TeachNo
- AdjustmentsPotentiometer
- Quick Disconnect TypeM12 (Euro)
- OutputsBipolar (NPN & PNP)
- Primary Housing MaterialZinc Alloy Die-Cast
- PowerDC
- ConnectionPigtail QD
- Sensing BeamVisible Red LED
- Cable Length (m)0.15
