QS18UPAQ

Name: QS18UPAQ
Brand: Banner

Banner

Product Lifecycle: Active

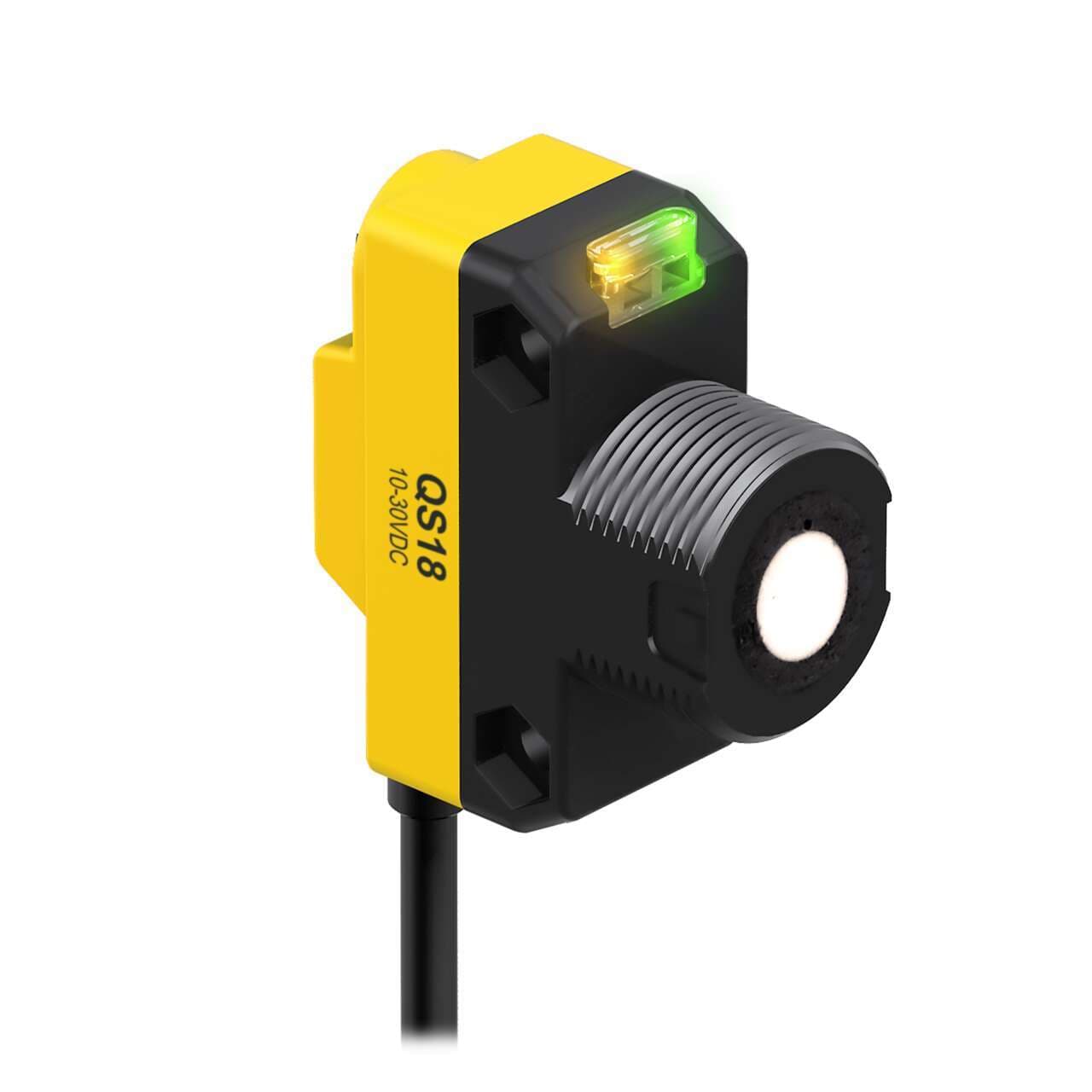

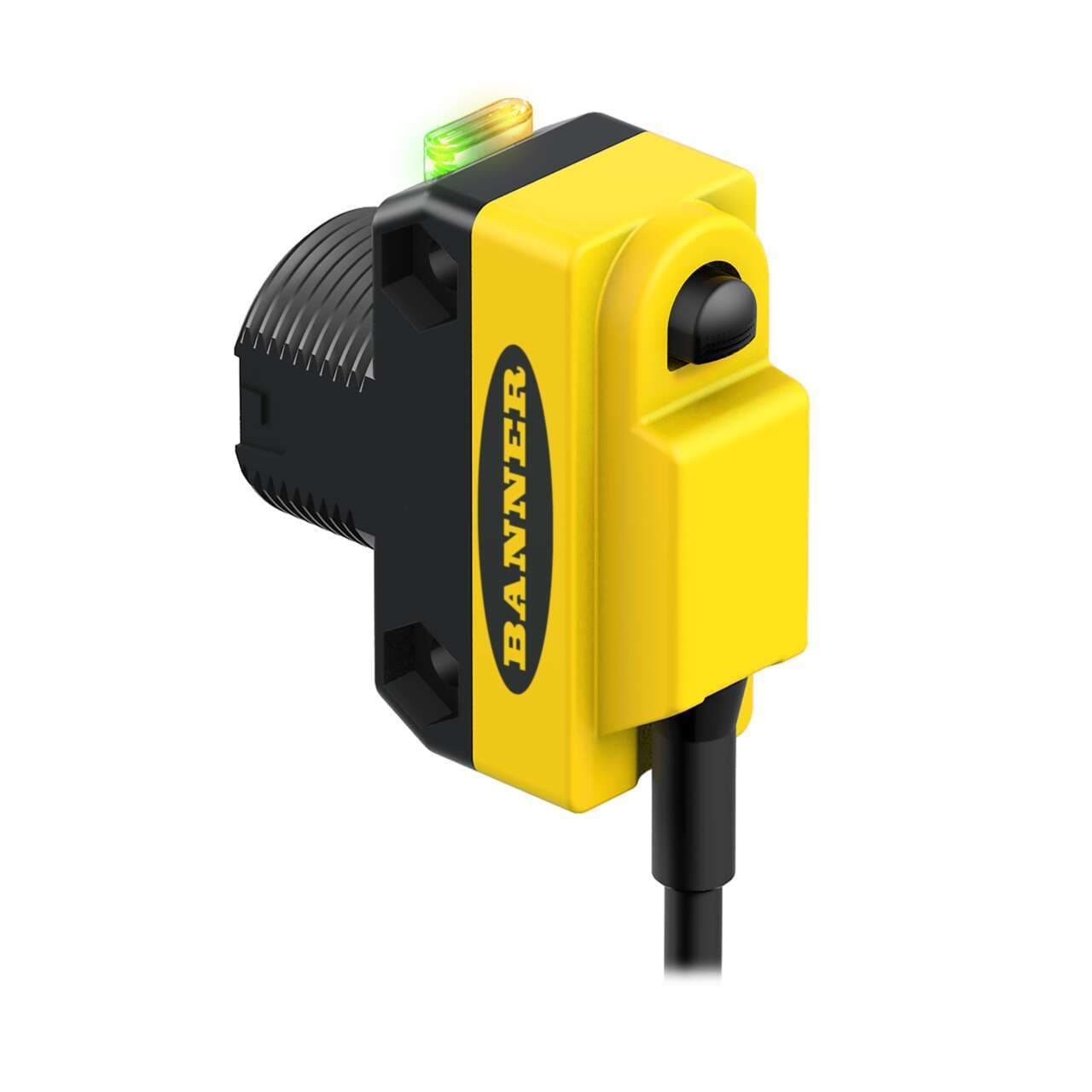

Banner Engineering QS18UPAQ is an ultrasonic distance sensor belonging to the QS18U series. It features an M18 threaded mount for installation and operates within an ambient air temperature range of -20 to +60°C. This sensor utilizes a time-of-flight system with TEACH mode for distance measurement and is equipped with a pre-wired 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector for connectivity. It is designed with an IP67 NEMA 6P degree of protection, ensuring durability in various environments. The QS18UPAQ operates on a supply voltage of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and has a rectangular shape. The sensor's housing is made of ABS material, and it operates at a 300kHz transmission frequency. It is capable of sensing distances ranging from 50 to 500mm and includes 1 x digital output (PNP transistor) for signal processing. Additionally, it features protection functions against short-circuits.

WORLD-BEAM QS18 Ultrasonic Series -- Datasheet.pdf

QS18U CABLE/PIGTAIL.pdf

QS18U CABLE/PIGTAIL.stp

Product details

WORLD-BEAM QS18 Ultrasonic Series -- Datasheet.pdf

QS18U CABLE/PIGTAIL.pdf

QS18U CABLE/PIGTAIL.stp

ProfibusNo
1-wire Serial InterfaceNo
SSINo
WirelessNo
RS-485No
RS-422No

RS-232No

PROFINETNo

IO LinkNo

Common Ethernet ProtocolNo

Application: UltrasonicYes

Feature: Chemical ResistantNo

Feature: Timing (Hold/Delay)No

Supply Protection CircuitryProtected against reverse polarity and transient overvoltages

Feature: Clear Object DetectionYes

Feature: Remote TeachYes

Power/Current Consumption (exclusive of load)25 mA max

Max Off-state Leakage Current (µA)PNP: < 5

Ultrasonic Frequency (kHz)300

Discrete Output Hysteresis (mm)1.4

Minimum Window Size (mm)5

Barrel Diameter (mm)18

Minimum Response Time (ms)15

NEMA RatingNEMA 6P

Rep Rate (ms)7.5

Max Op. Relative Humidity Non-Condensing (%)100

Warm-up Time (minutes)5

Max Operating Temperature (°C)60

Min Operating Temperature (°C)-20

IP RatingIP67

Output ProtectionProtected against short circuit conditions

Discrete (Switched) Outputs1 PNP

VibrationMIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).

Max Discrete (Switched) Output (mA)100

Output Saturation Voltage NPN Outputs< 1.6 V at 100 mA

Output Saturation Voltage PNP Outputs< 2.0 V at 100 mA

Mechanical ShockIEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave

Number of Pins4

Temperature Effect (mm/°C)+/- 0.05% of sensing distance/°C from -20 °C to +50 °C, +/- 0.1% of sensing distance/°C from +50 °C to +60 °C

AdjustmentsTeach Button

Delay at Power-up (ms)300

Power Supply12-30 V dc

Minimum Sensing Distance (mm)50

Quick Disconnect TypeM8 (Pico)

Max Sensing Distance (mm)500

Analog Resolution/Discrete Repeatability0.7

ConnectionPigtail QD

Input/OutputDiscrete

IndicatorLED(s)

Primary Housing MaterialABS

Cable Length (m)0.15

Device TypeSensor

Sensing Mode (Detailed)Time of Flight

Housing StyleRectangular w/M18 Mount

Sensing Mode (General)Proximity

Max Measurement Range>100 mm - <=500 mm

PC ConfigurableNo

PowerDC

Sensing BeamUltrasonic

Product series / family nameWORLD-BEAM series

Thread sizeM18

Primary brandBanner Engineering

Supply voltage (DC)12Vdc-30Vdc (24Vdc nom.)

Main functionSensor (Distance)

ShapeRectangular

Emission frequency300kHz

Sub-range nameQS18U series

Sensing distance50...500mm

Degree of protectionIP67 NEMA 6P

Designtime-of-flight system

Connection typePre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector

Protection functionsShort-circuit

Digital outputs1 x digital output (PNP transistor)

Order code / Manufacturer SKU73159

FunctionsUltrasonic distance sensor green LED (power ON) yellow LED (output state) TEACH mode

MaterialABS housing

Mounting modeThreaded mount

Ambient air temperature for operation-20...+60 °C
