PBAT415U Banner Through Beam Sensors

PBAT415U on Powermatic Associates
Banner

Part#:PBAT415U

Manufacturer:Banner

Category:Through Beam Sensors

Alt. Part#:42849

Product Lifecycle:Active

Get a quick Quote!

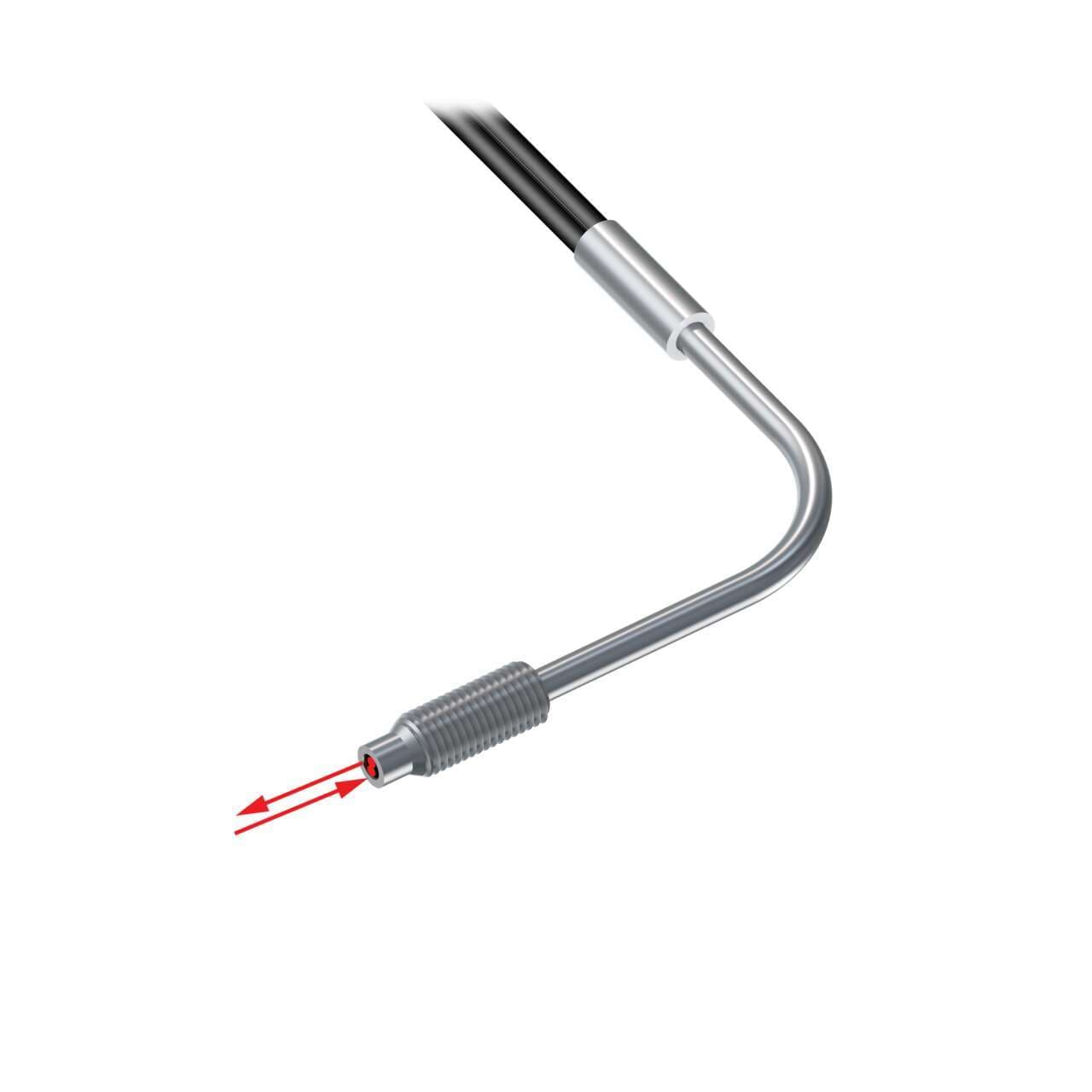

Plastic Fiber, Diffuse Reflective; Core Dia.: 1 mm; Fiber Length 5 m; Angle, Thread; Free cut

About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PBAT415U Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    72.57472 g
  • Country Of Origin
    JP
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Measured Max Distance (mm)
    No Data
  • Termination Type
    Plastic Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Feature: Chemical Resistant
    No
  • Fiber Sensing End Size - Mounting Area
    M6
  • Feature: Small Object Detection
    No
  • Minimum Bend Radius (mm)
    25
  • Max Temp ( °C)
    85
  • Sensing End Segment 1
    Ferrule
  • Tariff Fiber Meters (fbm)
    10
  • Max Distance: DF-G3 (mm)
    No Data
  • Application: Liquid Level
    No
  • Minimum Repeat Bending Endurance
    5000
  • Feature: Extended Range
    No
  • Integrated Lens
    No
  • Termination
    Free Cut
  • Core Diameter (mm)
    1
  • Flex Relief
    No
  • Retractile
    No
  • Sensing End Segment 2
    Angle
  • Fiber Length (m)
    4.572
  • Sensing End Segment 3
    Thread
  • Fiber Sensing End Size
    M6
  • Sensing Mode (General)
    Diffuse
  • Sensing Mode (Detailed)
    Reflective
  • Quantity Included
    1
  • Beam Exit
    Right Angle
  • Housing Style
    Round
  • Sensing End Material (Specific)
    Stainless Steel
  • Fiber Optic Type
    Plastic
  • Fiber Sensing End Tip
    Thread
  • Fiber Sheathing Material (Jacket)
    Polyethylene

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PBAT415U Description

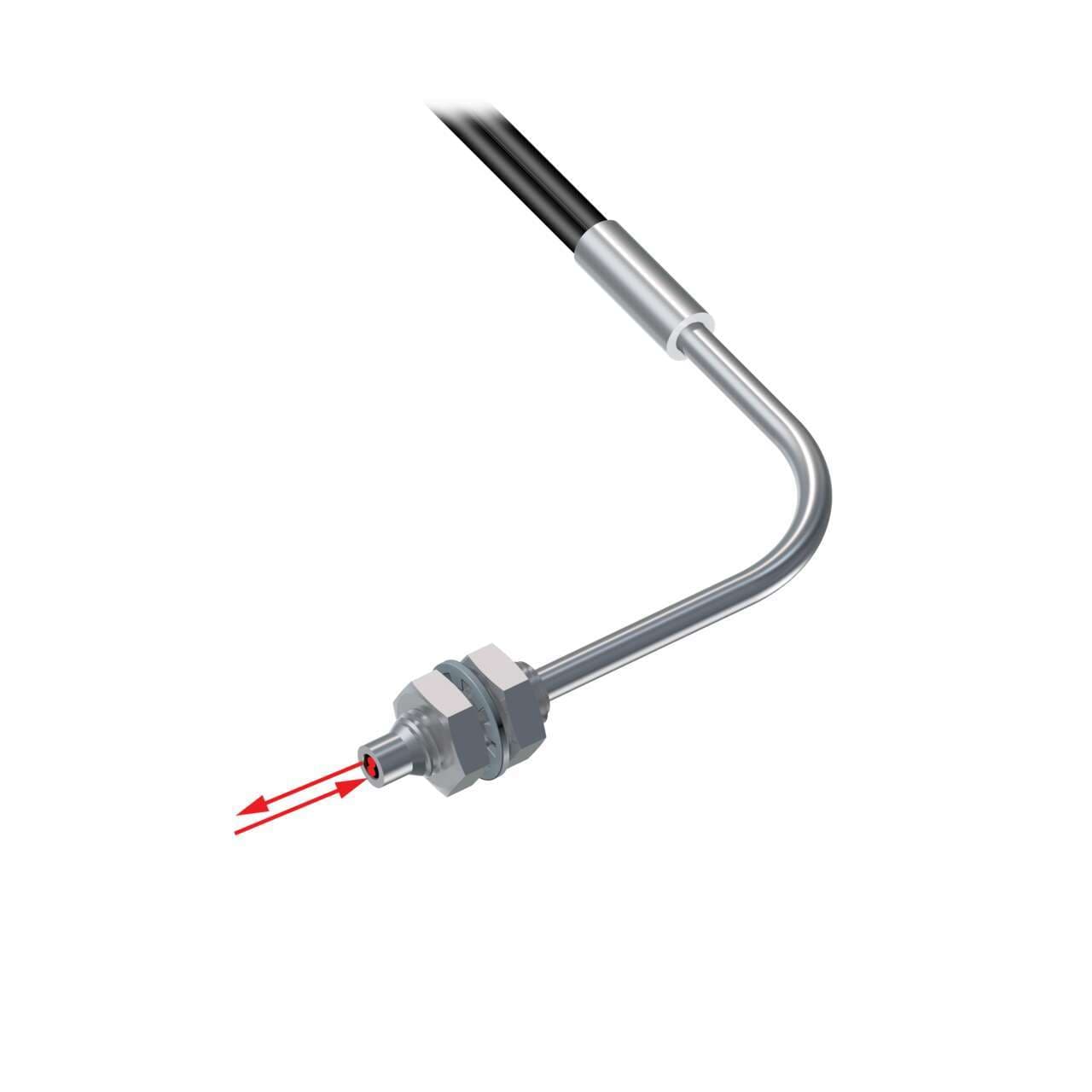

Banner Engineering PBAT415U is a fiber optic sensor designed for diffuse-reflective system applications with a bifurcated fiber side and right-angled sensing. It features a 1mm fiber core diameter and falls under the Plastic fiber series. The sensor has a cylindrical (threaded) end tip, constructed with a stainless steel sensing end and a plastic fiber with a Steelskin fiber sheath for enhanced durability. It is designed to operate in ambient air temperatures up to +70°C and has a total length of 3ft / 1m.

Related documents PBAT415U Specs

PBAT415U PBAT4 SERIES UNTERMINATED-1630955033143.pdf
PBAT415U PBAT4 SERIES UNTERMINATED-1630955033148.stp

Manufacturer warranty

$105.00

Request a quote, and we will send availability within minutes.

Select Qty:

$105.00

$105.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
