LQMAEC-303SS Banner Electronic Components

Name: LQMAEC-303SS
Brand: Banner
Price: 18 USD
Availability: InStock

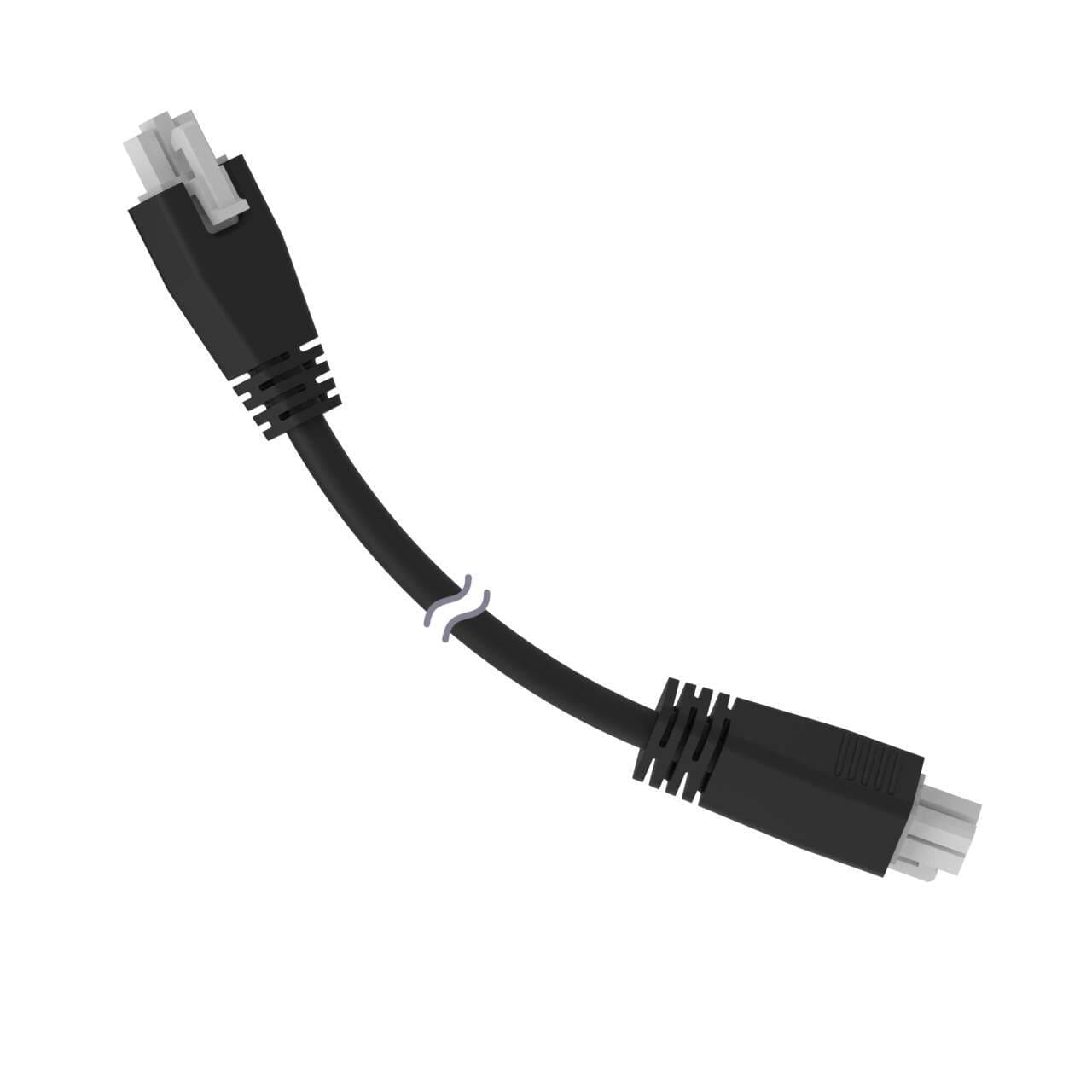

Banner LQMAEC-303SS Banner Engineering LQMAEC-303SS is a continuous run cascade cordset/cable designed for automation applications, featuring a length of 91cm (3 feet). It is equipped with a 3-pin MLX straight female connector on one end and a 4-pin MLX straight female connector on the other, facilitating seamless connectivity and integration into various systems.

Part#:LQMAEC-303SS

Manufacturer:Banner

Product Lifecycle:Active

In-stock parts: 2

Oct 5, 2024

Banner Engineering LQMAEC-303SS is a continuous run cascade cordset/cable designed for automation applications, featuring a length of 91cm (3 feet). It is equipped with a 3-pin MLX straight female connector on one end and a 4-pin MLX straight female connector on the other, facilitating seamless connectivity and integration into various systems.

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LQMAEC-303SS Banner price in the box on the right side or send a quick quote.

Product Details

Oil/Grease Resistant
No
Feature: Hazardous Area
No
Secondary AWG
18
Secondary Number of Conductors
4
Secondary Connector Type
Molex
Secondary Coupling Method
Slide Snap
Secondary Gender
Male
Primary AWG
18
Primary Orientation
Straight
Secondary Orientation
Straight
Primary Number of Conductors
3
Primary Coupling Method
Slide Snap
Primary Gender
Male
Primary Connector Type
Molex
Current Rating (A)
3.0
IP Rating
IP50
Voltage Rating (V)
300 V ac/dc
Maximum Temp. (°C)
105
Coupling Material/Color
Nylon
Minimum Temp. (°C)
-40

Number of Contacts

Shield/No Shield

No Shield

Trunk Length (m)

No Trunk

Number of Connectors

Connector Body Material/Color

PVC Black

Outside Cable Diameter (mm)

6.8

Cordset Length (m)

0.91

Cable Jacket Color

Black

Cable Jacket Material

PVC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

This item can ship within 24h!

Manufacturer warranty

$18.00

Stock:

Select Qty:

$18.00

$18.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
