LEDWLA145XD6-XQ Banner Vision Accessories

LEDWLA145XD6-XQ on Powermatic Associates
Banner

Part#:LEDWLA145XD6-XQ

Manufacturer:Banner

Alt. Part#:13936

Product Lifecycle:Active

Get a quick Quote!

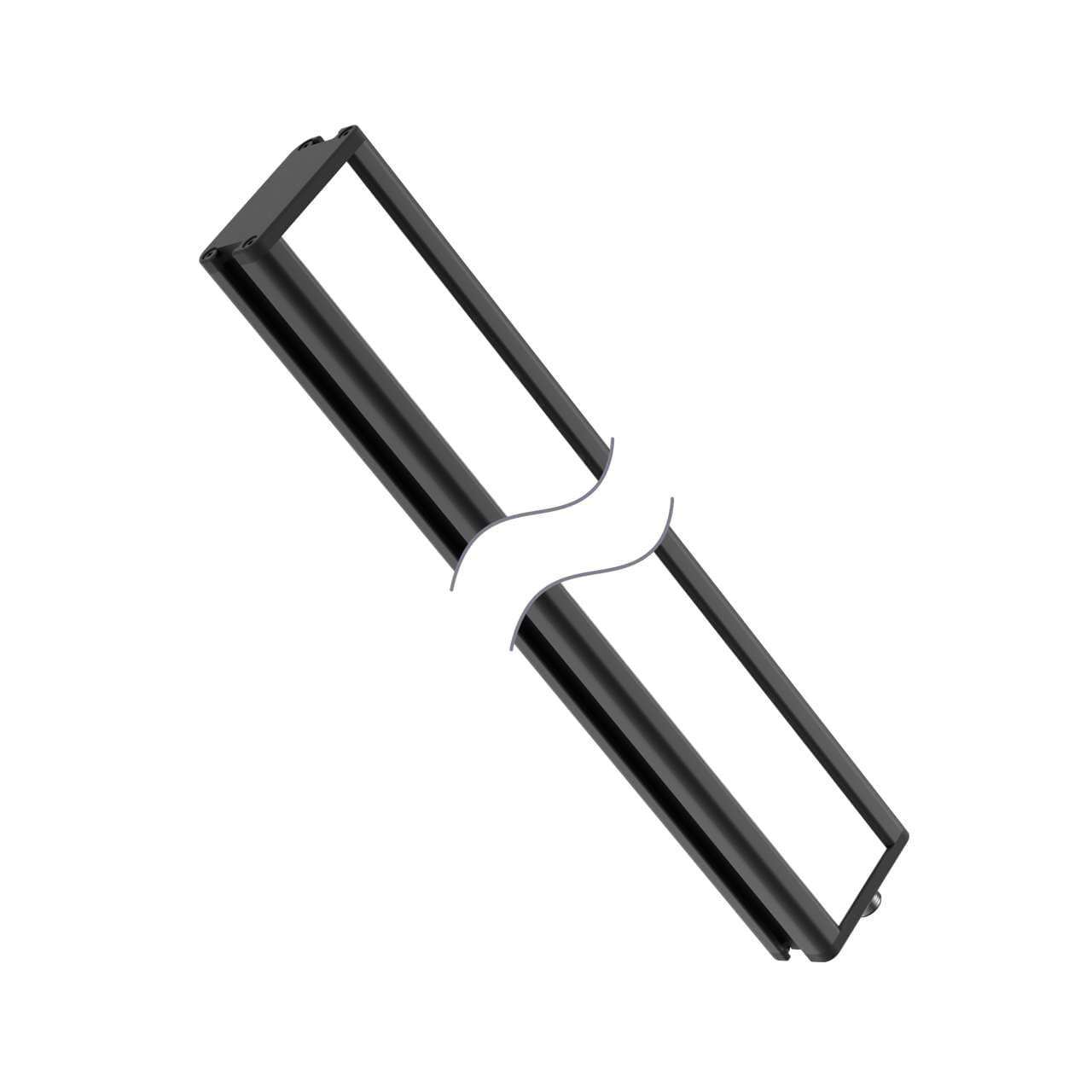

Vision Light - 145 mm Linear Array - IP50; 6 High Intensity White LEDs - 24 V dc; Diffusing Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWLA145XD6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    457.220736 g
  • Country Of Origin
    MX
  • Max Current Color (mA)
    500
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Color Technology
    Standard LED
  • Physical Dimensions (LxWxH or DxH mm)
    187.1 x 59.4 x 32.6
  • Max Op. Temperature (°C)
    50
  • Supply Voltage
    24 V DC
  • Number of Input Pins/Conductors
    5
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Housing Style
    Linear Strip
  • Primary Housing Material
    Anodized Aluminum
  • Device Type
    Bar Light
  • Power
    DC
  • Window Material
    Diffuse Acrylic
  • Connection Type
    Integral QD
  • Color
    White

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWLA145XD6-XQ Description

Banner Engineering LEDWLA145XD6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a 145mm / 5.7" array length, emitting visible white light. The unit has a rectangular shape and is constructed with a black anodized aluminum housing and a diffused acrylic window. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The supply voltage required for operation is 24Vdc, and it has a degree of protection rated at IP50.

Related documents LEDWLA145XD6-XQ Specs

LEDWLA145XD6-XQ 151466.pdf

Manufacturer warranty

$602.00

Request a quote, and we will send availability within minutes.

Select Qty:

$602.00

$602.00 each
