LEDWA70XD5-PM Banner Vision Accessories

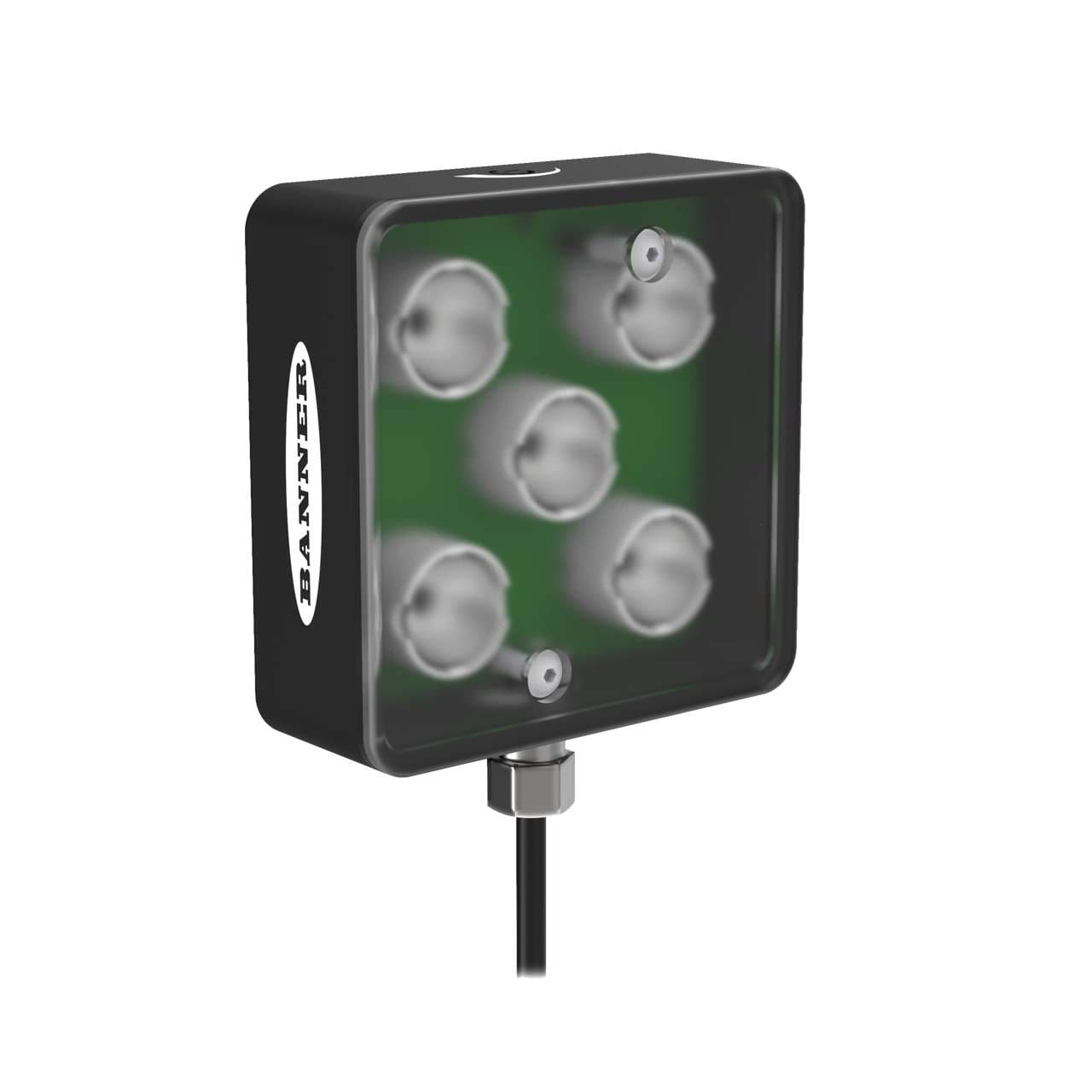

Banner LEDWA70XD5-PM Vision Light - 70 mm Area with Potentiometer; 5 High Intensity White LEDs - 24 V dc; Clear Diffusing Plastic Window; Connects directly to P4 sensor
Banner

Part#:LEDWA70XD5-PM

Manufacturer:Banner

Alt. Part#:16074

Product Lifecycle:Active

Get a quick Quote!

Vision Light - 70 mm Area with Potentiometer; 5 High Intensity White LEDs - 24 V dc; Clear Diffusing Plastic Window; Connects directly to P4 sensor

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWA70XD5-PM Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    308.669356 g
  • Country Of Origin
    MX
  • Physical Dimensions (LxWxH or DxH mm)
    76.2 x 76.2 x 29.2
  • Supply Voltage
    24 V DC
  • Max Op. Temperature (°C)
    50
  • Feature: Quick Disconnect
    Yes
  • Max Current Color (mA)
    500
  • Color Technology
    Standard LED
  • Connection Type
    Pigtail QD
  • QD Type/Cable Length
    2 m; M8 (Pico)
  • Number of Input Pins/Conductors
    3
  • Primary Housing Material
    Low-Carbon Steel
  • Intensity Adjustment
    Potentiometer
  • Color
    White
  • Window Material
    Diffuse Acrylic
  • Housing Style
    Rectangular
  • Device Type
    Area Light
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWA70XD5-PM Description

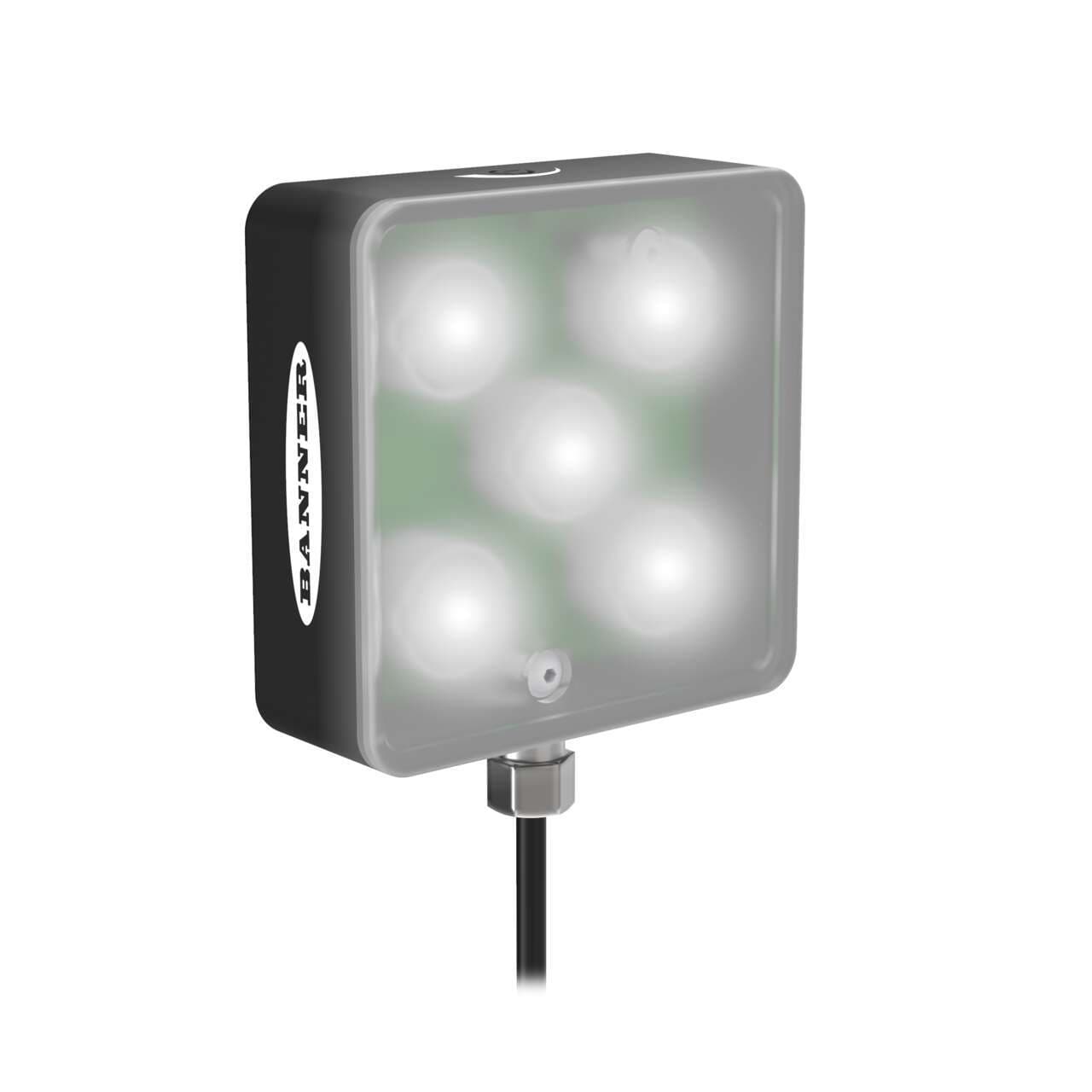

Banner Engineering LEDWA70XD5-PM is an illumination unit designed for area lighting applications. It features intensity adjustment capabilities, allowing for dimming via a potentiometer to achieve high-intensity, visible white light. The unit has a square shape, with dimensions of 70x70mm, and is constructed from low-carbon steel housing with a diffused acrylic window. It comes pre-wired with a 6ft / 2m pigtail that terminates in a 3-pin Pico-style M8 connector for easy installation. The LEDWA70XD5-PM operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50, indicating a level of protection against dust ingress.

Related documents LEDWA70XD5-PM Specs

LEDWA70XD5-PM 153956.pdf
