LEDWA70AP5-XQ Banner Vision Accessories

LEDWA70AP5-XQ on Powermatic Associates
Banner

Part#:LEDWA70AP5-XQ

Manufacturer:Banner

Category:Vision Accessories

Alt. Part#:16138

Product Lifecycle:Active

Get a quick Quote!

Vision Light - 70 mm Area - IP68; 5 High Intensity White LEDs - 24 V dc; Clear Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWA70AP5-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    383.28524 g
  • Country Of Origin
    US
  • Physical Dimensions (LxWxH or DxH mm)
    102.0 x 91.0 x 28.2
  • Max Current Color (mA)
    500
  • Number of Input Pins/Conductors
    5
  • Color Technology
    Standard LED
  • Window Material
    Acrylic
  • Connection Type
    Integral QD
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Housing Style
    Rectangular
  • Power
    DC
  • Feature: Quick Disconnect
    Yes
  • Max Op. Temperature (°C)
    50
  • Supply Voltage
    24 V DC
  • Device Type
    Area Light
  • Color
    White
  • Primary Housing Material
    Nickel-Plated Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWA70AP5-XQ Description

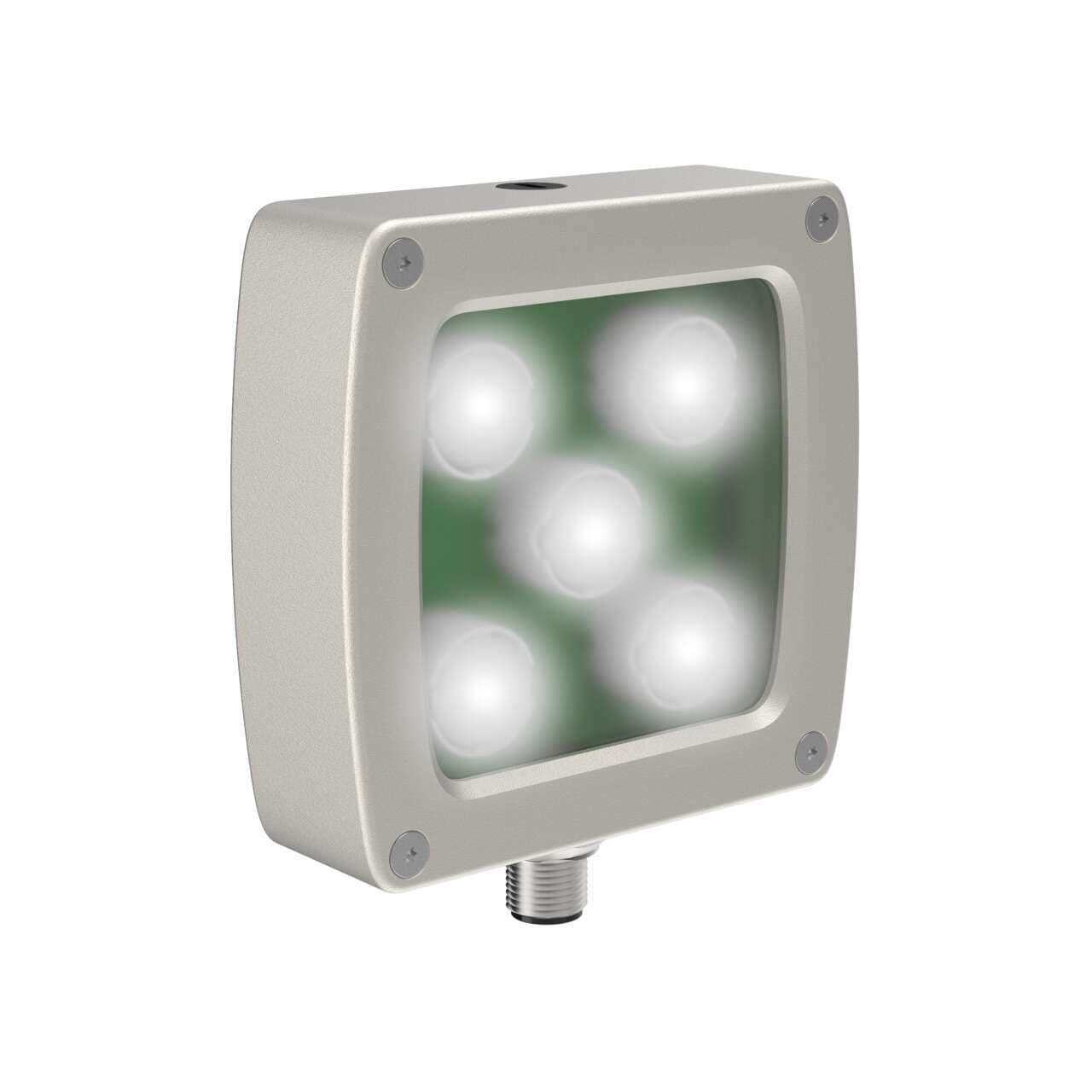

Banner Engineering LEDWA70AP5-XQ is an area illumination light designed for high-intensity applications. This unit features a square shape with dimensions of 70x70mm and emits visible white light. It is constructed with a nickel-plated aluminum housing and an acrylic window for durability. The LEDWA70AP5-XQ comes pre-equipped with a 5-pin Euro-style M12 connector for easy integration into existing systems. It operates on a 24Vdc supply voltage and is rated with a degree of protection of IP68, indicating a high level of resistance to dust and water ingress.

Related documents LEDWA70AP5-XQ Specs

LEDWA70AP5-XQ 153957.pdf

Manufacturer warranty

$923.00

Request a quote, and we will send availability within minutes.

Select Qty:

$923.00

$923.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
