LEDUV395LA290XG6-XQ Banner Vision Accessories

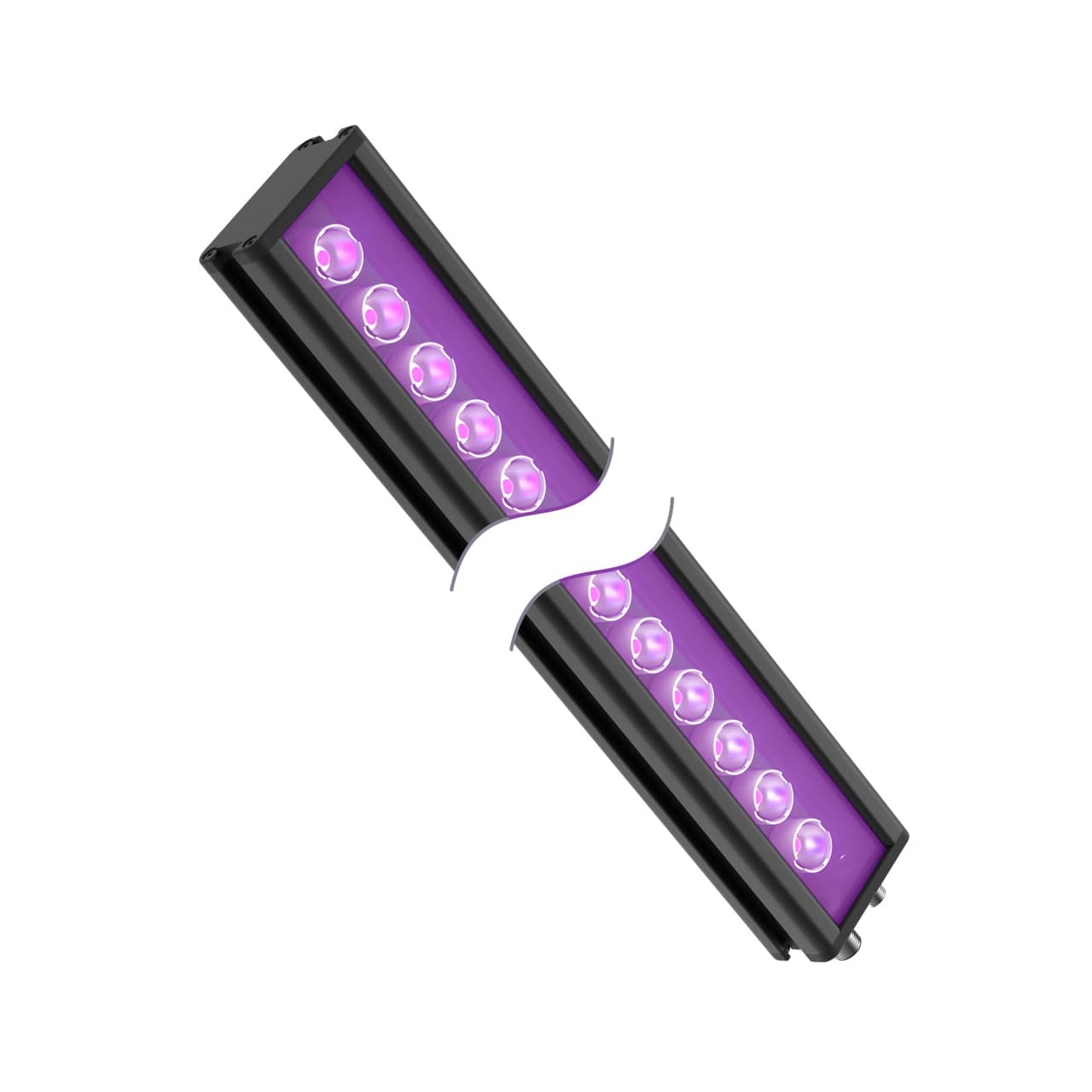

Banner LEDUV395LA290XG6-XQ Vision Light: 290 mm Linear Array - IP50; 12 High Intensity 395 nm UV LEDs - 24 V dc; Clear Glass Window; 5-pin M12 QD
Banner

Part#:LEDUV395LA290XG6-XQ

Manufacturer:Banner

Alt. Part#:19921

Product Lifecycle:Active

Get a quick Quote!

Vision Light: 290 mm Linear Array - IP50; 12 High Intensity 395 nm UV LEDs - 24 V dc; Clear Glass Window; 5-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDUV395LA290XG6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    893.57624 g
  • Country Of Origin
    US
  • Feature: Quick Disconnect
    Yes
  • Lens Focusing Angle (°)/Field of View
    5
  • Max Op. Temperature (°C)
    50
  • Color Technology
    Standard LED
  • Physical Dimensions (LxWxH or DxH mm)
    332.6 x 59.4 x 32.6
  • Supply Voltage
    24 V DC
  • Max Current Color (mA)
    1000
  • Housing Style
    Linear Strip
  • Connection Type
    Integral QD
  • Device Type
    Bar Light
  • Number of Input Pins/Conductors
    5
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Power
    DC
  • Window Material
    Glass
  • Color
    Ultraviolet
  • Primary Housing Material
    Anodized Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDUV395LA290XG6-XQ Description

Banner Engineering LEDUV395LA290XG6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a 290mm (11.4 inches or approximately 1 foot) array length. The unit emits ultraviolet (UV) light with a wavelength of 395 nm from a rectangular-shaped module. The housing is made of black anodized aluminum with a glass window, ensuring durability and protection for the internal components. It comes pre-equipped with a 5-pin Euro-style M12 connector for easy integration into existing systems. The LEDUV395LA290XG6-XQ operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50, indicating a level of protection against dust ingress.

Related documents LEDUV395LA290XG6-XQ Specs

LEDUV395LA290XG6-XQ 151466.pdf

Manufacturer warranty
