LEDRLA580XD6-PHQ Banner Vision Accessories

LEDRLA580XD6-PHQ on Powermatic Associates
Banner

Part#:LEDRLA580XD6-PHQ

Manufacturer:Banner

Category:Vision Accessories

Alt. Part#:81809

Product Lifecycle:Active

Get a quick Quote!

LINEAR ARRAY RED ACRY DIFF 2 FT DIMMABLE

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDRLA580XD6-PHQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1383.4556 g
  • Country Of Origin
    MX
  • Feature: Quick Disconnect
    Yes
  • Max Current Color (mA)
    2000
  • Max Op. Temperature (°C)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    623.6 x 59.4 x 32.6
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Supply Voltage
    24 V DC
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    5
  • Color
    Red
  • Primary Housing Material
    Anodized Aluminum
  • Intensity Adjustment
    Potentiometer and Analog
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Connection Type
    Integral QD
  • Window Material
    Diffuse Acrylic
  • Device Type
    Bar Light
  • Power
    DC
  • Housing Style
    Linear Strip

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDRLA580XD6-PHQ Description

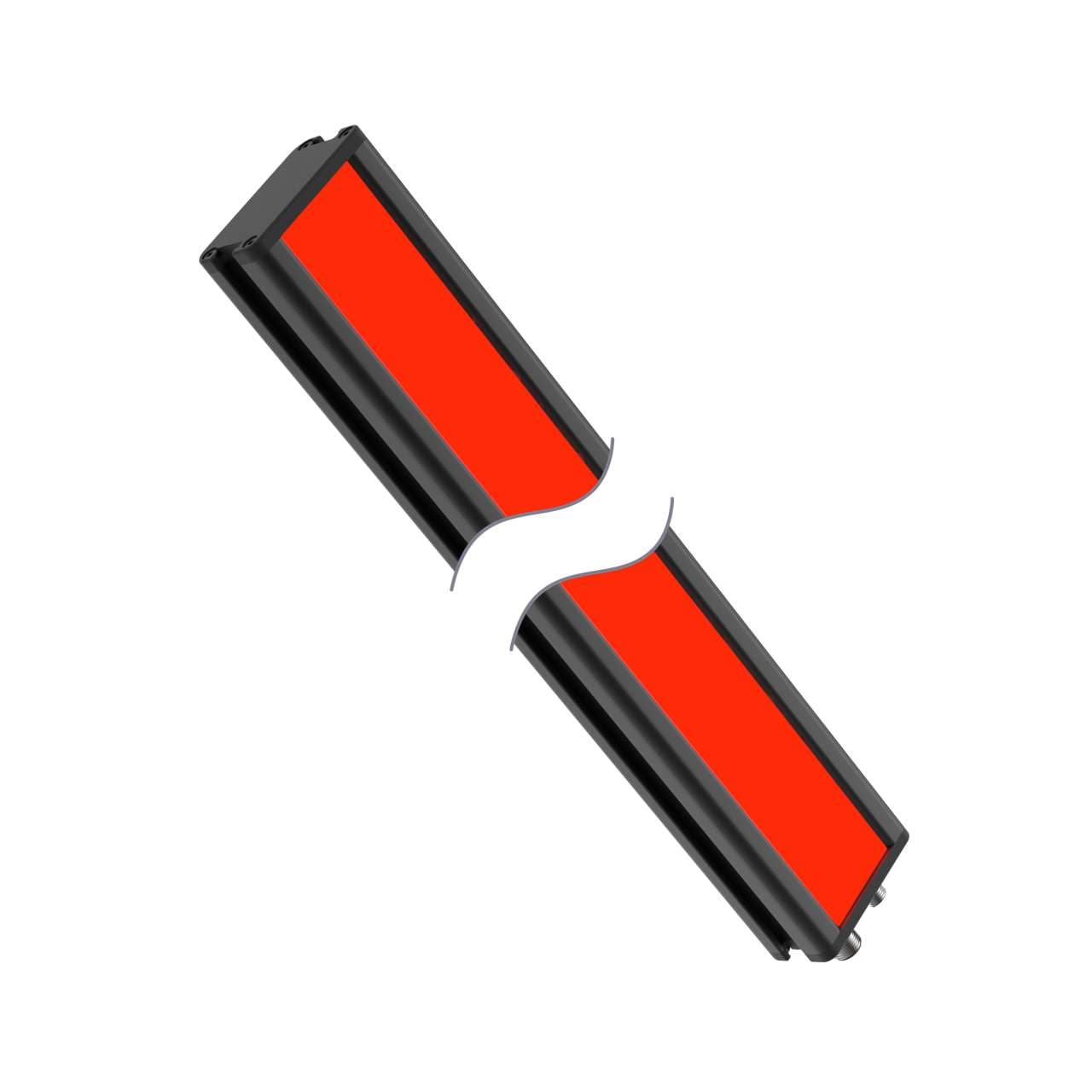

Banner Engineering LEDRLA580XD6-PHQ is an illumination unit designed for linear array illumination backlight applications. It features intensity adjustment capabilities, allowing for dimming via a potentiometer or analog input, and delivers high-intensity light. The unit measures 580mm in length and emits visible red light through a diffused acrylic window housed in a black anodized aluminum frame. It is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDRLA580XD6-PHQ operates on a 24Vdc supply voltage and offers a degree of protection rated at IP50. It includes 1 x digital input (24Vdc; high-polarity) for strobe control and 1 x analog input (0-10Vdc) for intensity control.
