LEDRLA435XP6-PHQ Banner Vision Accessories

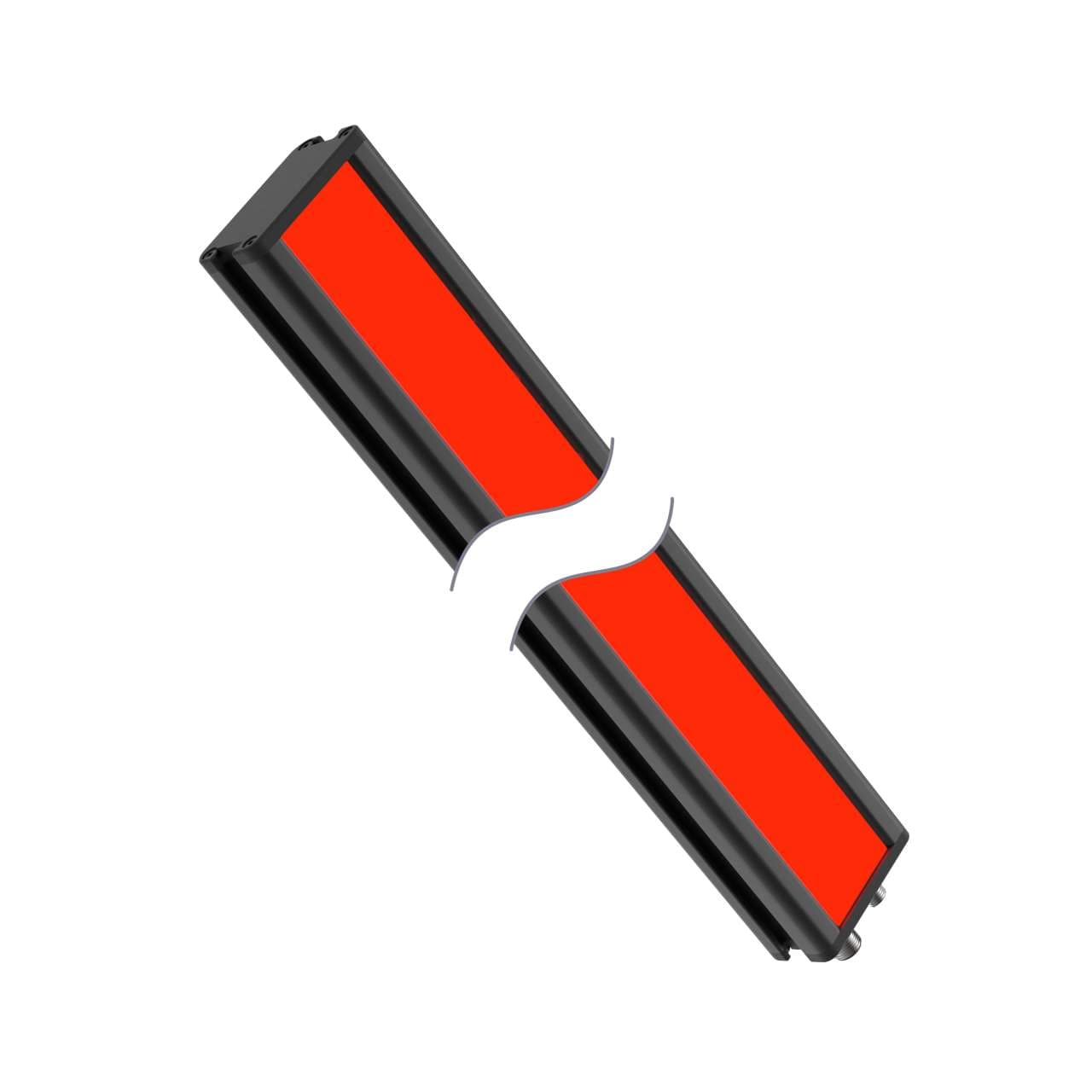

Banner LEDRLA435XP6-PHQ LINEAR ARRAY RED ACRY 1.5 ft DIMM ACTIVE HGH
Banner

Part#:LEDRLA435XP6-PHQ

Manufacturer:Banner

Alt. Part#:82218

Product Lifecycle:Active

Get a quick Quote!

LINEAR ARRAY RED ACRY 1.5 ft DIMM ACTIVE HGH

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDRLA435XP6-PHQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1109.486032 g
  • Country Of Origin
    MX
  • Number of Input Pins/Conductors
    5
  • Physical Dimensions (LxWxH or DxH mm)
    478.1 x 59.4 x 32.6
  • Max Op. Temperature (°C)
    50
  • Color Technology
    Standard LED
  • Intensity Adjustment
    Potentiometer and Analog
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Color
    Red
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Max Current Color (mA)
    1500
  • Feature: Quick Disconnect
    Yes
  • Supply Voltage
    24 V DC
  • Connection Type
    Integral QD
  • Device Type
    Bar Light
  • Window Material
    Acrylic
  • Power
    DC
  • Primary Housing Material
    Anodized Aluminum
  • Housing Style
    Linear Strip

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDRLA435XP6-PHQ Description

Banner Engineering LEDRLA435XP6-PHQ is an illumination unit designed for linear array illumination backlight applications. It features intensity adjustment capabilities, allowing for dimming either via a potentiometer or an analog input, and delivers high-intensity light in visible red. The unit measures 435mm in array length and is housed in black anodized aluminum with a clear acrylic window, shaped in a rectangular form. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDRLA435XP6-PHQ operates on a 24Vdc supply voltage and offers a degree of protection rated at IP50. For control, it includes 1 x digital input (24Vdc; high-polarity) for strobe control and 1 x analog input (0-10Vdc) for intensity control.

Related documents LEDRLA435XP6-PHQ Specs

LEDRLA435XP6-PHQ 150944.pdf
