LEDRLA435XD6-XQ Banner Vision Accessories

LEDRLA435XD6-XQ on Powermatic Associates
Banner

Part#:LEDRLA435XD6-XQ

Manufacturer:Banner

Category:Vision Accessories

Alt. Part#:12824

Product Lifecycle:Active

Get a quick Quote!

Vision Light - 435 mm Linear Array - IP50; 18 High Intensity Red LEDs - 24 V dc; Diffusing Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDRLA435XD6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1133.98 g
  • Country Of Origin
    MX
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    1500
  • Feature: Quick Disconnect
    Yes
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Supply Voltage
    24 V DC
  • Physical Dimensions (LxWxH or DxH mm)
    478.1 x 59.4 x 32.6
  • Max Op. Temperature (°C)
    50
  • Number of Input Pins/Conductors
    5
  • Connection Type
    Integral QD
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Window Material
    Diffuse Acrylic
  • Color
    Red
  • Primary Housing Material
    Anodized Aluminum
  • Device Type
    Bar Light
  • Power
    DC
  • Housing Style
    Linear Strip

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDRLA435XD6-XQ Description

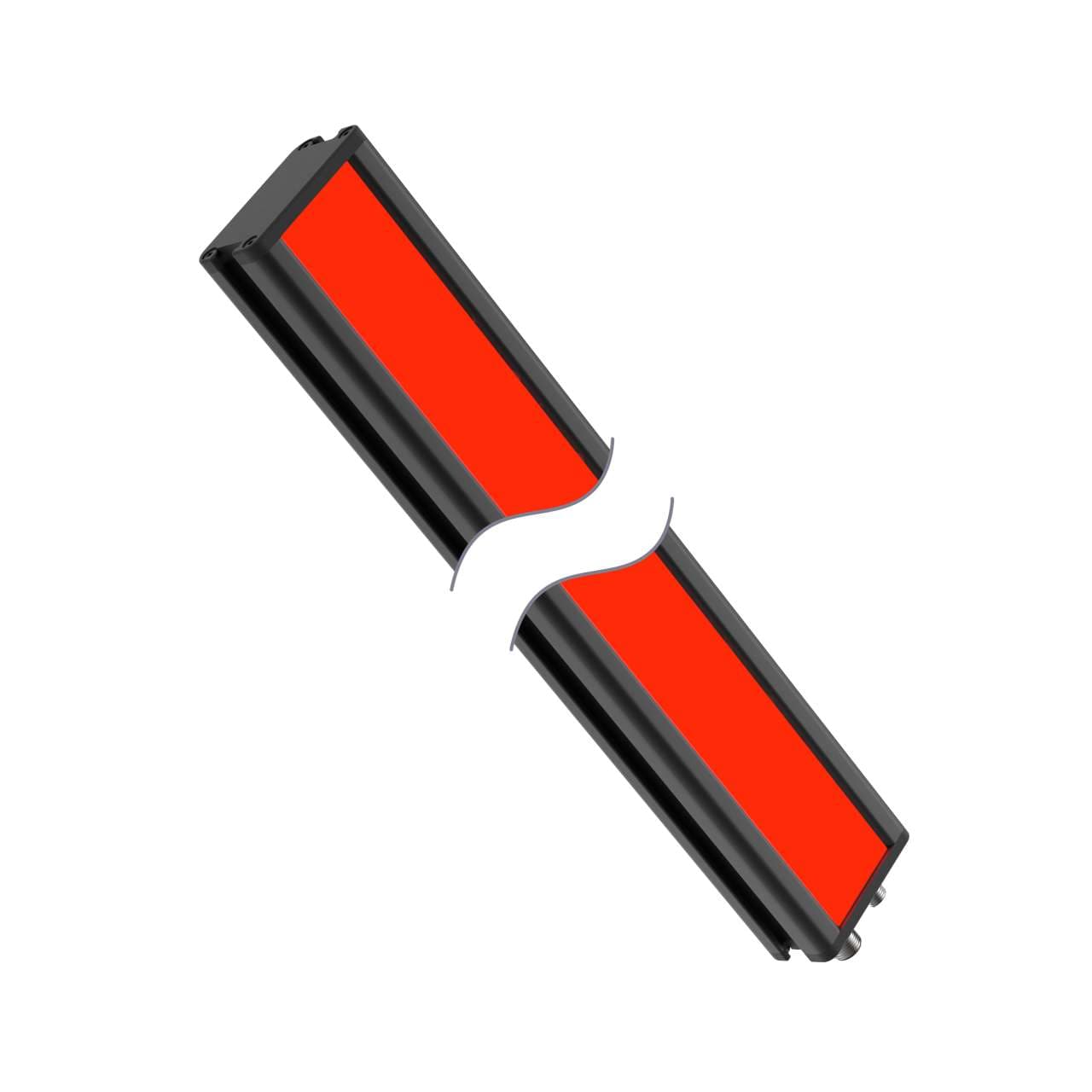

Banner Engineering LEDRLA435XD6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a 435mm (18 inches or 1.5 feet) array length, emitting visible red light. The unit has a rectangular shape and is constructed with a black anodized aluminum housing and a diffused acrylic window. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The supply voltage required for operation is 24Vdc, and it has a degree of protection rated at IP50.

Related documents LEDRLA435XD6-XQ Specs

LEDRLA435XD6-XQ 151466.pdf

Manufacturer warranty

$1,426.00

Request a quote, and we will send availability within minutes.

Select Qty:

$1,426.00

$1,426.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
