LEDRA70AP5-XQ Banner Vision Accessories

LEDRA70AP5-XQ on Powermatic Associates
Banner

Part#:LEDRA70AP5-XQ

Manufacturer:Banner

Category:Vision Accessories

Alt. Part#:15401

Product Lifecycle:Active

Get a quick Quote!

Vision Light - 70 mm Area - IP68; 5 High Intensity Red LEDs - 24 V dc; Clear Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDRA70AP5-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    408.2328 g
  • Country Of Origin
    MX
  • Supply Voltage
    24 V DC
  • Physical Dimensions (LxWxH or DxH mm)
    102.0 x 91.0 x 28.2
  • Max Current Color (mA)
    500
  • Connection Type
    Integral QD
  • Number of Input Pins/Conductors
    5
  • Feature: Quick Disconnect
    Yes
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Max Op. Temperature (°C)
    50
  • Color Technology
    Standard LED
  • Color
    Red
  • Window Material
    Acrylic
  • Primary Housing Material
    Nickel-Plated Aluminum
  • Device Type
    Area Light
  • Power
    DC
  • Housing Style
    Rectangular

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDRA70AP5-XQ Description

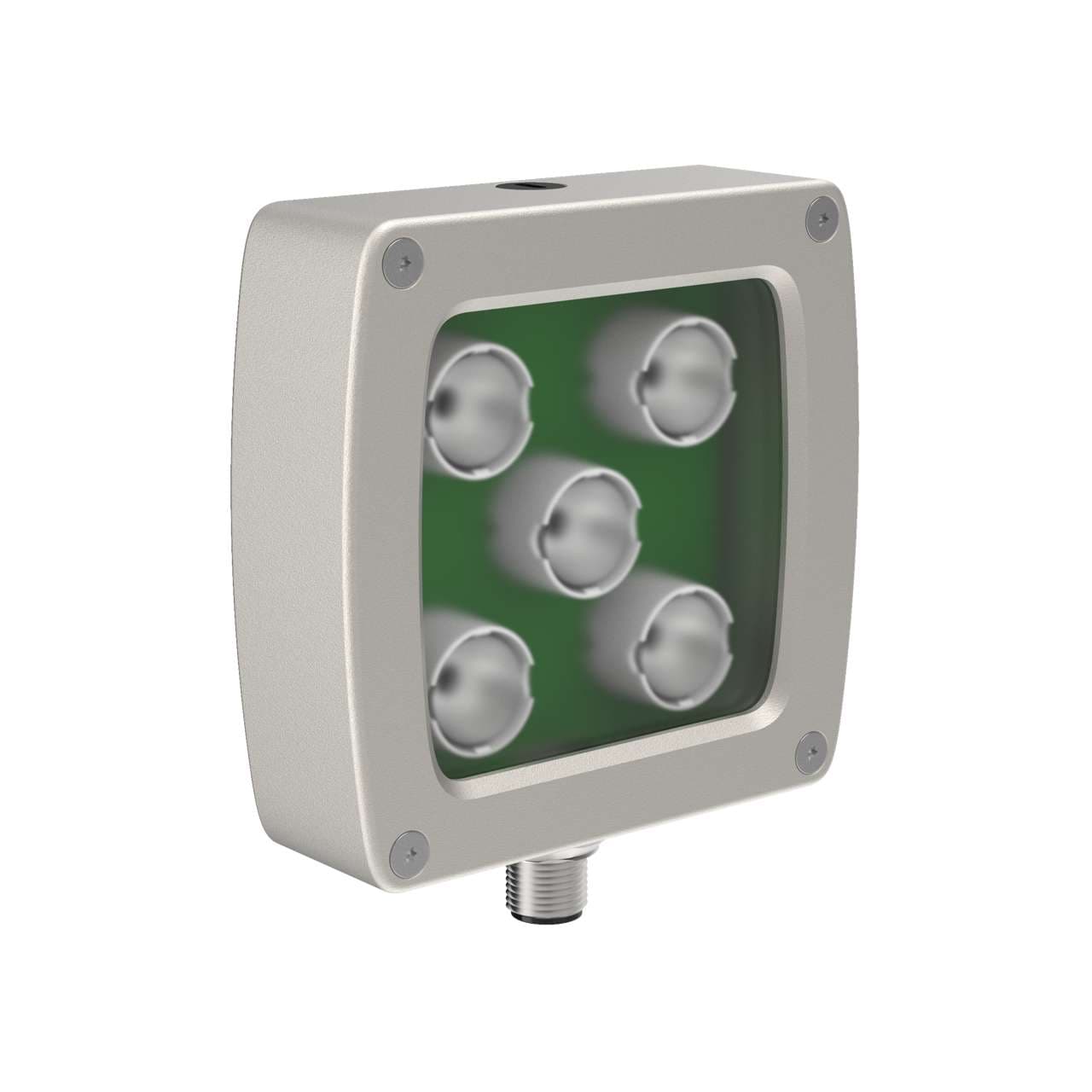

Banner Engineering LEDRA70AP5-XQ is an area illumination light designed for high-intensity applications. This unit features a square shape with dimensions of 70x70mm and emits visible red light. It is constructed with a nickel-plated aluminum housing and an acrylic window for durability. The LEDRA70AP5-XQ comes pre-equipped with a 5-pin Euro-style M12 connector for easy integration into existing systems. It operates on a 24Vdc supply voltage and is rated with a degree of protection of IP68, indicating a high level of resistance to dust and water ingress.

Related documents LEDRA70AP5-XQ Specs

LEDRA70AP5-XQ 153957.pdf
