LEDIA70XD5-XQ Banner Vision Accessories

LEDIA70XD5-XQ on Powermatic Associates
Banner

Part#:LEDIA70XD5-XQ

Manufacturer:Banner

Alt. Part#:16021

Product Lifecycle:Active

Get a quick Quote!

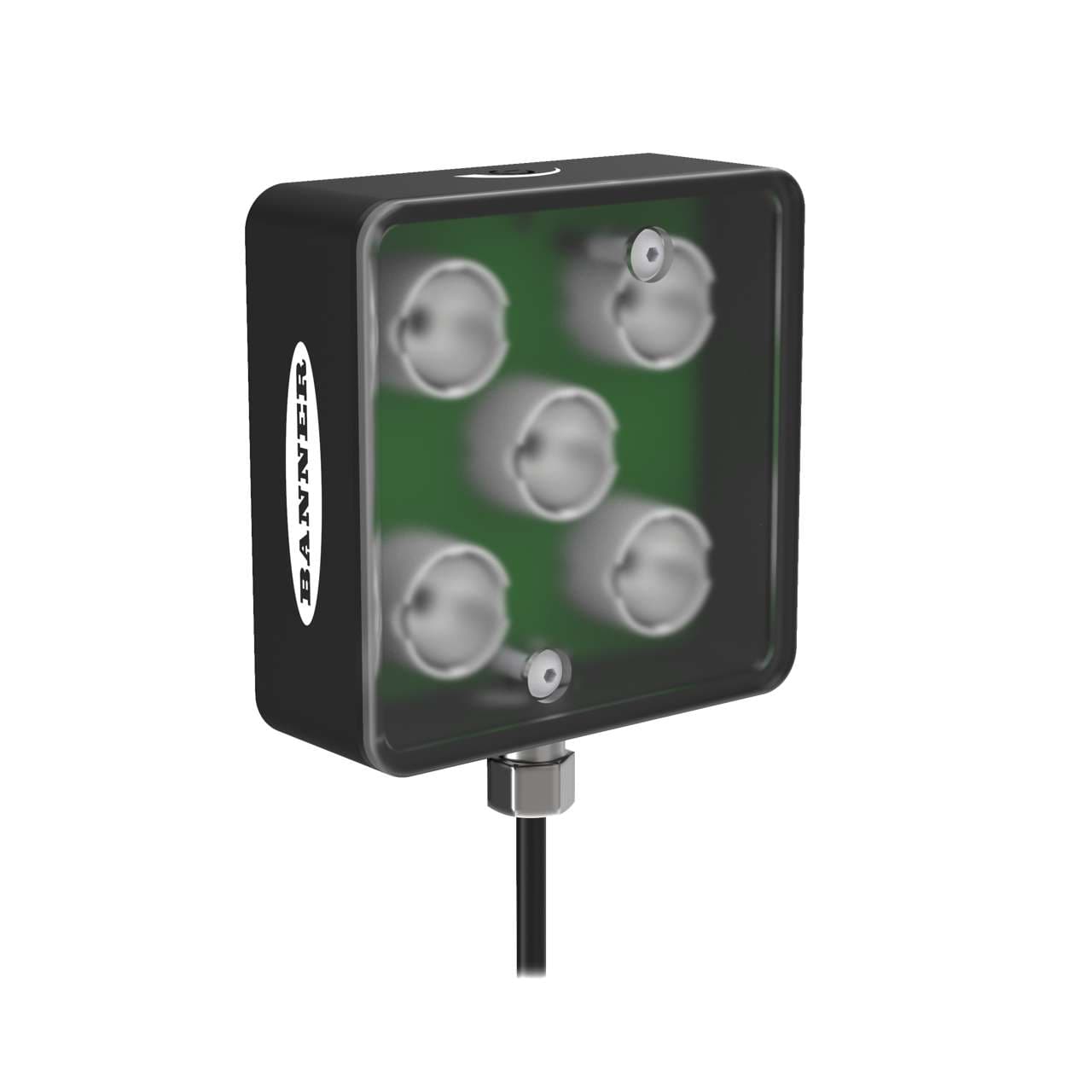

Vision Light - 70 mm Area; 5 High Intensity IR LEDs - 24 V dc; Clear Diffusing Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDIA70XD5-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    30.390664 g
  • Country Of Origin
    MX
  • Supply Voltage
    24 V DC
  • Physical Dimensions (LxWxH or DxH mm)
    76.2 x 76.2 x 29.2
  • Max Op. Temperature (°C)
    50
  • Max Current Color (mA)
    500
  • Primary Housing Material
    Low-Carbon Steel
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    5
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Color
    Infrared
  • Device Type
    Area Light
  • Housing Style
    Rectangular
  • Power
    DC
  • Connection Type
    Integral QD
  • Window Material
    Diffuse Acrylic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDIA70XD5-XQ Description

Banner Engineering LEDIA70XD5-XQ is an illumination unit designed for area illumination with a high-intensity output. This unit features a square shape, measuring 70x70mm, and is equipped with an infrared (IR) light source. It is constructed with a low-carbon steel housing and a diffused acrylic window. The LEDIA70XD5-XQ is pre-wired with a 6-inch (150mm) pigtail that terminates with a 5-pin Euro-style M12 connector. It operates on a 24Vdc supply voltage and has an IP50 degree of protection.

Related documents LEDIA70XD5-XQ Specs

LEDIA70XD5-XQ 153956.pdf

Manufacturer warranty

$395.00

Request a quote, and we will send availability within minutes.

Select Qty:

$395.00

$395.00 each
