LEDIA70XD5-XM Banner Vision Accessories

LEDIA70XD5-XM on Powermatic Associates
Banner

Part#:LEDIA70XD5-XM

Manufacturer:Banner

Category:Vision Accessories

Alt. Part#:16043

Product Lifecycle:Active

Get a quick Quote!

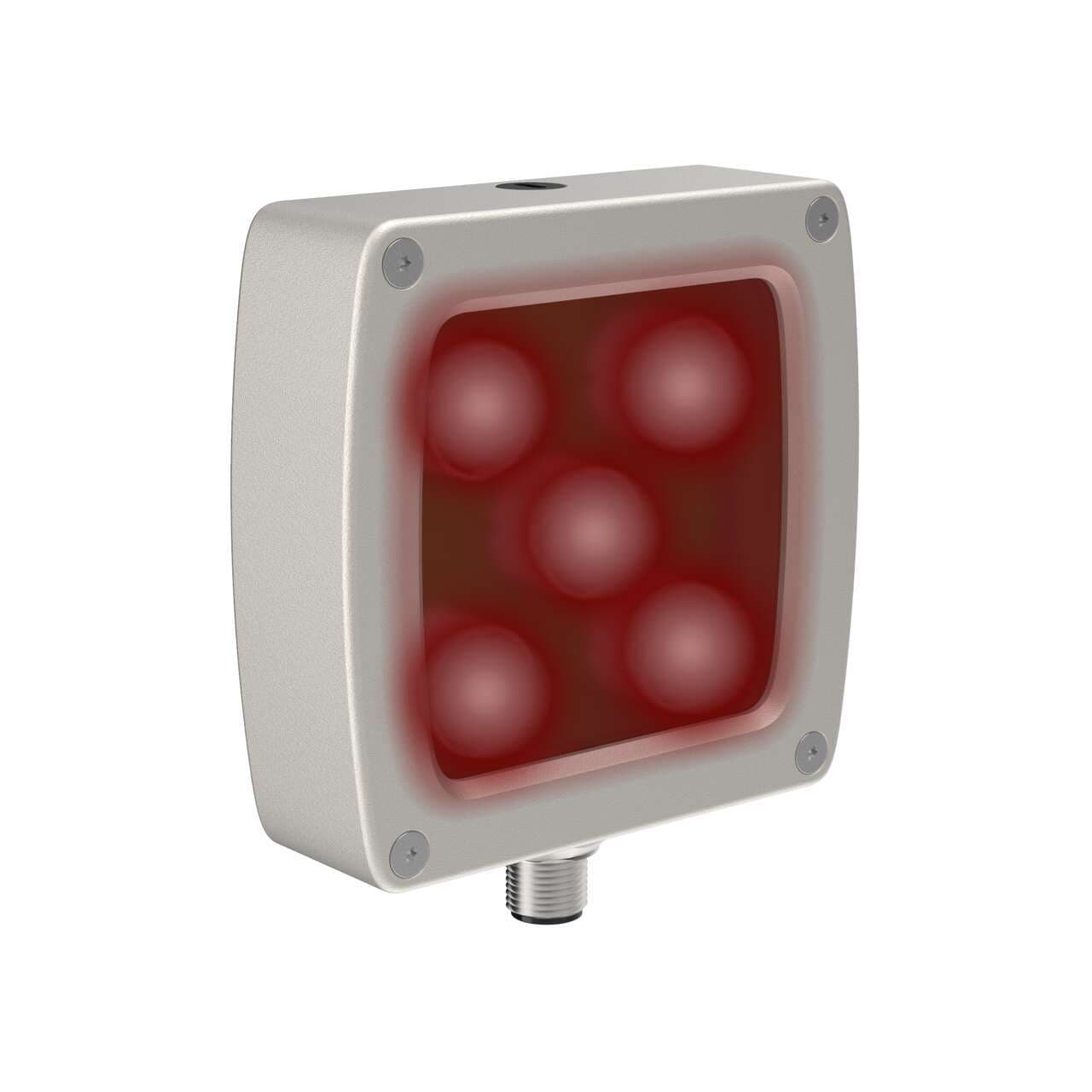

Vision Light - 70 mm Area; 5 High Intensity IR LEDs - 24 V dc; Clear Diffusing Plastic Window; Connects directly to P4 sensor

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDIA70XD5-XM Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    32.205032 g
  • Country Of Origin
    MX
  • Max Op. Temperature (°C)
    50
  • Color
    Infrared
  • QD Type/Cable Length
    2 m; M8 (Pico)
  • Number of Input Pins/Conductors
    3
  • Color Technology
    Standard LED
  • Physical Dimensions (LxWxH or DxH mm)
    76.2 x 76.2 x 29.2
  • Max Current Color (mA)
    500
  • Supply Voltage
    24 V DC
  • Primary Housing Material
    Low-Carbon Steel
  • Connection Type
    Pigtail QD
  • Window Material
    Diffuse Acrylic
  • Device Type
    Area Light
  • Housing Style
    Rectangular
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDIA70XD5-XM Description

Banner Engineering LEDIA70XD5-XM is an illumination unit designed for area illumination with a fixed intensity, high-intensity output. It features a square shape with dimensions of 70x70mm and utilizes infrared (IR) light. The unit is constructed with a low-carbon steel housing and a diffused acrylic window. It comes pre-wired with a 6ft / 2m pigtail that terminates with a 3-pin Pico-style M8 connector for easy installation. The LEDIA70XD5-XM operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50, indicating a level of protection against dust ingress.

Related documents LEDIA70XD5-XM Specs

LEDIA70XD5-XM 153956.pdf

Manufacturer warranty

$395.00

Request a quote, and we will send availability within minutes.

Select Qty:

$395.00

$395.00 each

Average response time: 11 minutes
