K50LGRA2YNQ Banner Pick-to-Light Sensors
Part#:K50LGRA2YNQ
Manufacturer:Banner
Alt. Part#:78842
Product Lifecycle:Active
Get a quick Quote!
K50 Series EZ-LIGHT: 3-Color Audible Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP50; Tone: Pulsed; Input: NPN; Colors: Green Red Yellow; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50LGRA2YNQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Pro-Editor Compatible (Discrete) No
- Secondary Material ABS
- Audible Operating Frequency (kHz) 3.0
- Modbus RTU No
- Wireless No
- IO Link No
- Multi-Color Device Single Color On
- Feature: Chemical Resistant No
- Feature: Audible Yes
- Feature: Hazardous Area No
- Primary Housing Color Black
- Primary Window Material Polycarbonate Diffused
- Min Op. Temperature (°C) -20
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Max Op. Temperature (°C) 50
- Max Current - Audible Alarm (mA) 40
- Environmental Rating IP50
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 68.0
- Max Input Response Time (ms) 10
- Audible Alarm Type Pulsed
- Min Audible Intensity (db at 1m) 75
- Max Audible Intensity (db at 1m) 75
- Input Type NPN
- Max Current Color (mA) 40
- Color Option 2 Red
- Supply Voltage 18-30 V dc
- Color Option 3 Yellow
- Number of Input Pins/Conductors 5
- Connection Integral QD
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Animation Option 1 Solid On
- Mounting Thread M30 x 1.5
- Color Option 1 Green
- Housing Style Base Mount - Dome Window
- Color Technology Standard LED
- Primary Housing Material Polycarbonate
- Number of Colors / Segments 3
- Product Size (mm) 50
- Indication Yes
- Cable Length (m) 0.15
- Power Source DC
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
K50LGRA2YNQ Description

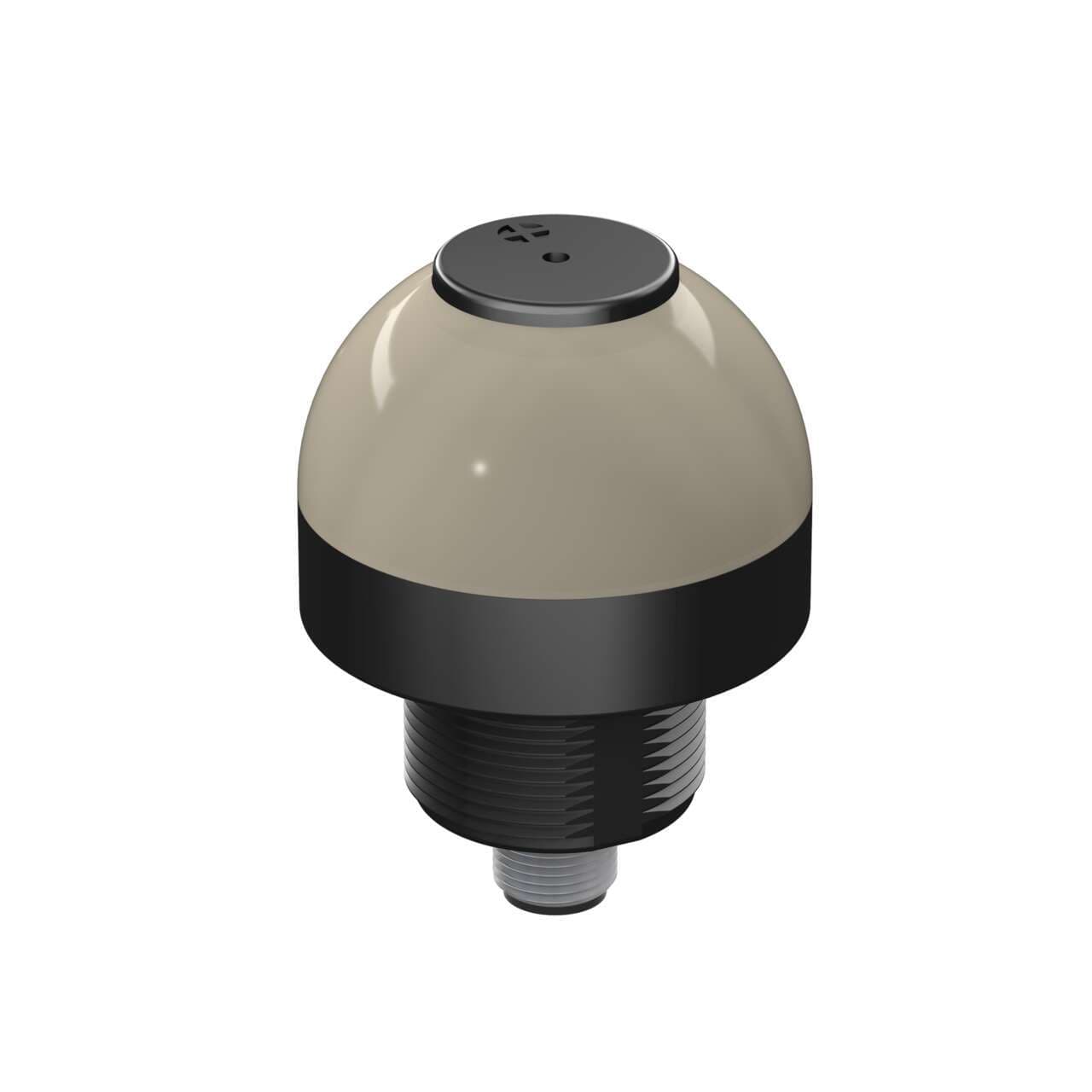

Banner Engineering K50LGRA2YNQ is a pilot light from the EZ-LIGHT series featuring an audible LED pilot light indicator with a pulsed sound and 2-color G/R color pattern LED illumination. It has a black housing with a dome window shape, constructed from polycarbonate for both the diffused window and base. This part is designed for easy connection, pre-equipped with a 5-pin M12 Euro-style QD connector. It operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.) and can be mounted on the surface, base, or pole flush with a 30mm hole using an M30 thread. The dome has a diameter of 50mm / 2 inches, and it is designed to operate in ambient air temperatures ranging from -20°C to +50 °C. It offers a degree of protection rated at IP50, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, with a current consumption of 40mA. The device also includes 2 x digital inputs (18-30Vdc; PNP) for color control and 1 x digital input (18-30Vdc; PNP) for alarm input.
Related documents K50LGRA2YNQ Specs
