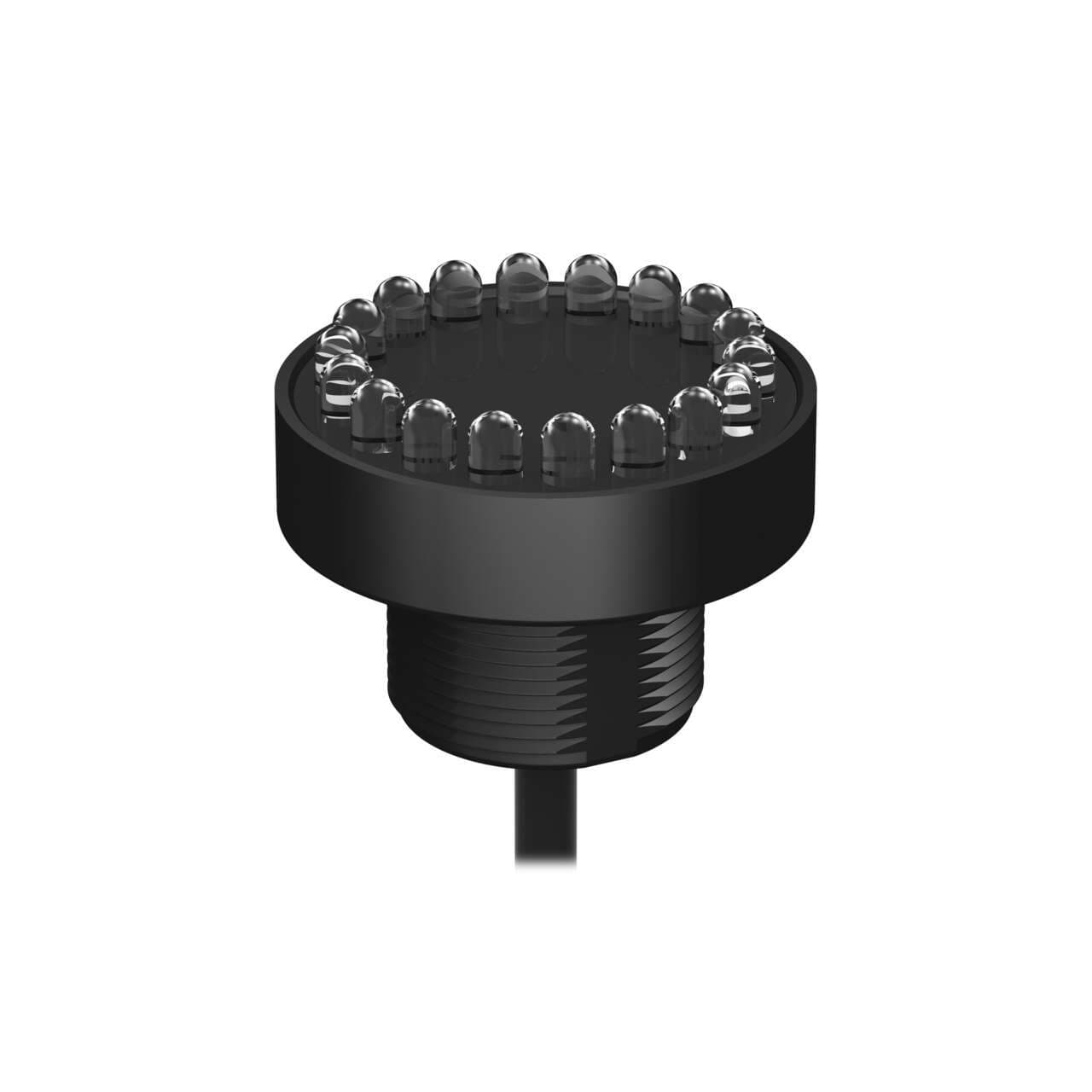

K50LDRA120 Banner Pick-to-Light Sensors

Product Details

• Weight
  196.858928 g
• Country Of Origin
  MX
• Modbus RTU
  No
• Wireless
  No
• IO Link
  No
• Multi-Color Device
  Single Color On
• Indication Intensity
  High Brightness & Daylight Visible
• Feature: Chemical Resistant
  No
• Feature: Audible
  No
• Environmental Rating
  IP67
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
• Physical Dimensions (LxWxH or DxH mm)
  50.0 x 38.5
• Max Input Response Time (ms)
  0.5
• Input Type
  AC
• Number of Input Pins/Conductors
  2
• Color Option 1
  Red
• Pro-Editor Compatible (Discrete)
  No
• Feature: Hazardous Area
  No
• Min Op. Temperature (°C)
  -40
• Primary Housing Color
  Black
Max Op. Temperature (°C)
50
Supply Voltage
85-130 V ac
Max Current Color (mA)
16
Lumens Color 1
4.0
Color 1 - Wavelength/Color Temp/Coordinates
625 nm
Connection
Cable
Animation Option 1
Solid On
Color Technology
Standard LED
Product Size (mm)
50
Housing Style
Base Mount - No Window
Number of Colors / Segments
1
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Power
AC
Indication
Yes
Primary Housing Material
Polycarbonate
Mounting Thread
M30 x 1.5
Power Source
AC

Related documents K50LDRA120 Specs
