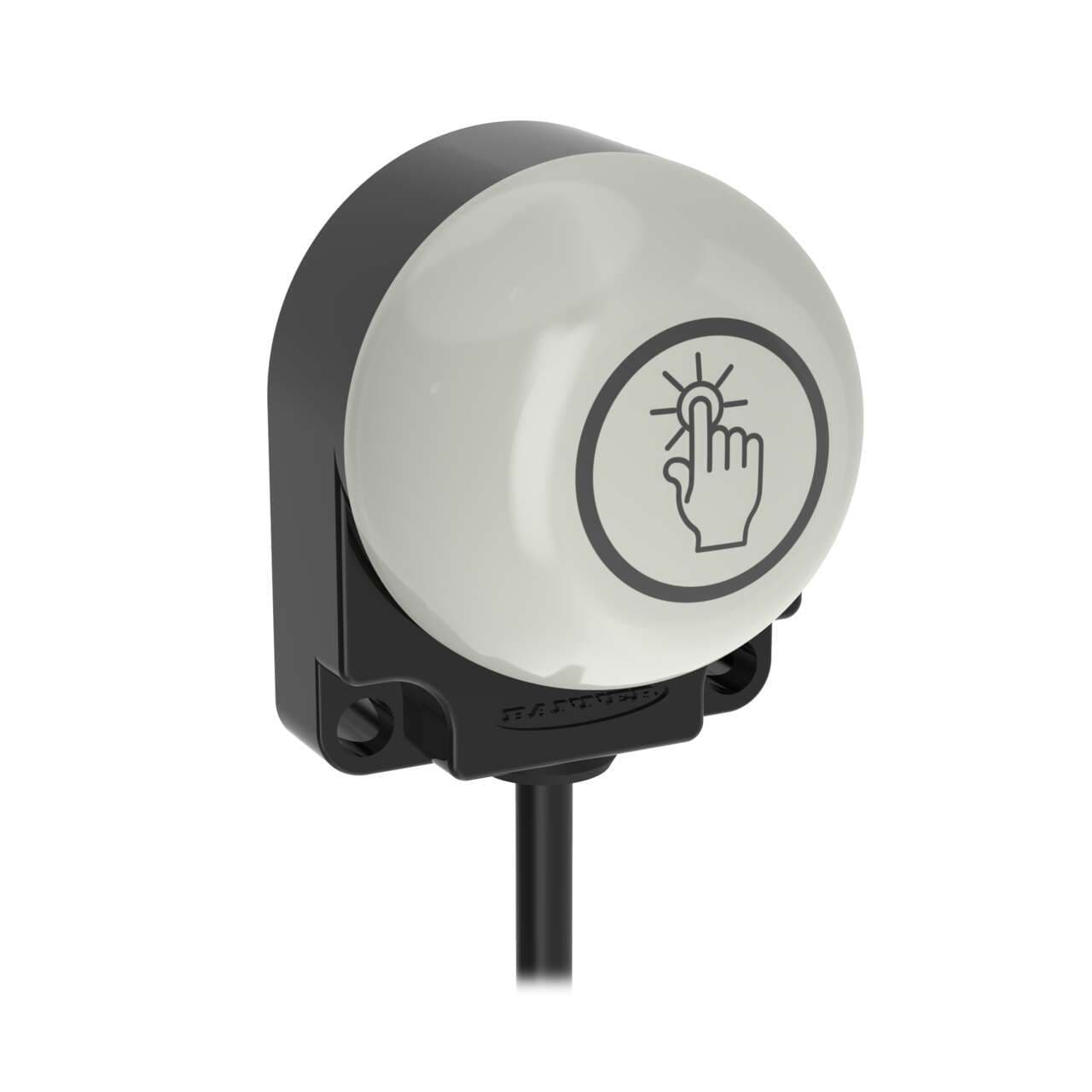

K50FAPT2BRYC3QP Banner Pick-to-Light Sensors

K50FAPT2BRYC3QP on Powermatic Associates
Banner

Part#:K50FAPT2BRYC3QP

Manufacturer:Banner

Alt. Part#:801187

Product Lifecycle:Active

Get a quick Quote!

K50 Series EZ-LIGHT: 3-Color Touch Sensor Gen 2 Flat pack; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Blue Red Yellow; 150 mm (6 in) 5-pin M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50FAPT2BRYC3QP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    158.7572 g
  • Country Of Origin
    US
  • Multi-Color Device
    Single Color On
  • Job Light
    Blue
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No
  • Modbus RTU
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Washdown Rated
    Yes
  • Primary Housing Color
    Black
  • Button Operation
    Momentary
  • Primary Window Material
    Polycarbonate Diffused
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -40
  • Environmental Rating
    IP67; IP69
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Physical Dimensions (LxWxH or DxH mm)
    62.5 x 50.0 x 41.6
  • Max Output Response Time (ms)
    50
  • Max Op. Temperature (°C)
    50
  • I/O Block Compatible
    Yes
  • Input Type
    PNP
  • Supply Voltage
    12-30 V dc
  • Output Type
    PNP
  • Operation
    Normally Open
  • Number of Input Pins/Conductors
    5
  • Mis-Pick Light
    Red
  • Pick-to-Light Function
    C3
  • Color 3 - Wavelength/Color Temp/Coordinates
    591 nm
  • Max Current Color (mA)
    75
  • Acknowledge (Sense) Light
    Yellow
  • Lumens Color 3
    24.0
  • Color Option 3
    Yellow
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Connection
    Pigtail QD
  • Lumens Color 2
    13.0
  • Quick Disconnect Type
    M12 (Euro)
  • Color Option 2
    Red
  • Animation Option 1
    Solid On
  • Color Technology
    Standard LED
  • Color Option 1
    Blue
  • Product Size (mm)
    50
  • Housing Style
    Flat Mount - Dome Window
  • Number of Colors / Segments
    3
  • Mounting Thread
    No Thread
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Actuation
    Yes
  • Primary Housing Material
    Polycarbonate
  • Activation Function
    Capacitive Touch
  • Power
    DC
  • Power Source
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K50FAPT2BRYC3QP Description

Banner Engineering K50FAPT2BRYC3QP is a pick-to-light device from the EZ-LIGHT series, designed for optical sensing with a fixed field infrared (IR) sensing flat-pack LED illumination. It features a black housing with a dome window on a flat-pack body, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity and operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. It is designed for surface or wall mounting, with a 50mm / 2" dome diameter. The device can operate in ambient air temperatures ranging from -40°C to +50°C and is rated at IP67 and IP69K for protection. Its operating mode includes a momentary job light (G; Green) that is ON when the job input is active, and touch activates the output and sensing light (R; Red) with a NO (Normally Open) touch output. The current consumption is 75mA, and it features 1 x digital input (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch, with a sensing distance of 100mm.

Related documents K50FAPT2BRYC3QP Specs

K50FAPT2BRYC3QP 189831.pdf
